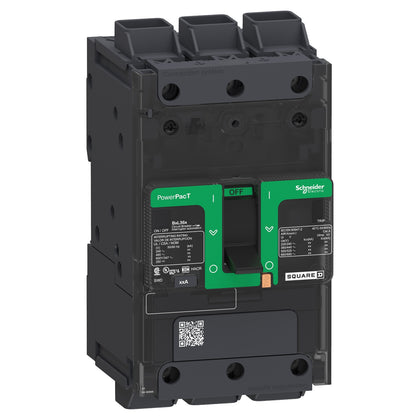

BGL36060 - Square D 60A 600Y/347V 3 Pole PowerPact B Molded Case Circuit Breaker

BGL36060

BGL36060 is a Square D PowerPact B molded case circuit breaker rated for 60 amps and 600Y/347 volts with 3 poles.This thermal magnetic circuit breaker features a 3-pole design with a 60 amp continuous current rating and an 18kA interrupt rating at 600Y/347VAC. It is part of the PowerPact B frame series, suitable for unit mount and DIN rail mounting. The breaker is UL, CSA, NOM, IEC, CCC certified, and CE marked, ensuring compliance with multiple safety standards.

Key Specifications
• Amperage: 60 Amps
• Voltage Rating: 600Y/347 VAC
• Poles: 3
• Frame: PowerPact B
• Interrupt Rating: 18kA at 600Y/347 VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit mount with DIN rail capability
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGL36060
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 606481154111
• GTIN : 00606481154111
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.09 lb
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : UL 489, GB 14048.2, NEMA AB1, NMX J-266, EN/IEC 60947-5-1, CSA C22.2 No 5, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
