BGL36050 - Schneider Electric PowerPacT B-Frame 50A 3-Pole 600Y/347VAC 18kA Interrupt Molded Case Circuit Breaker, Unit Mount, Thermal Magnetic Trip, UL/CSA/NOM/IEC/CCC/CE Certified

BGL36050

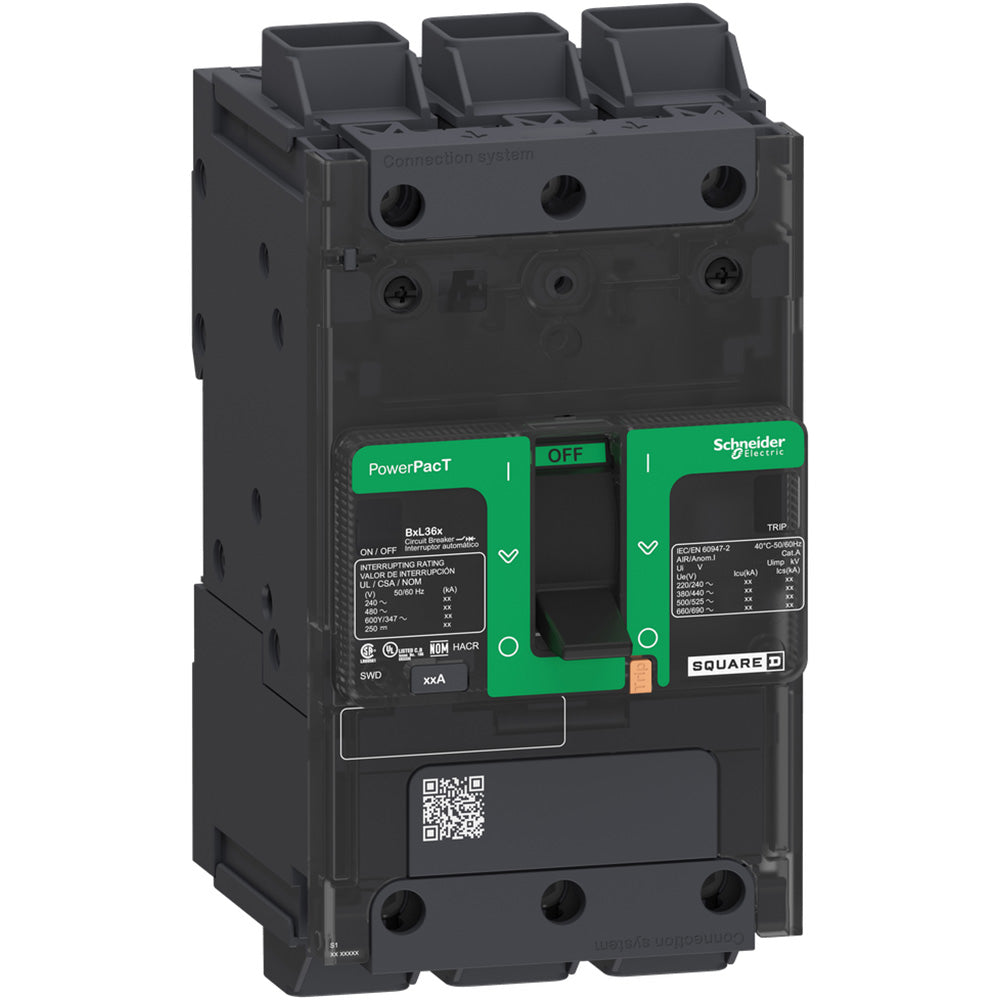

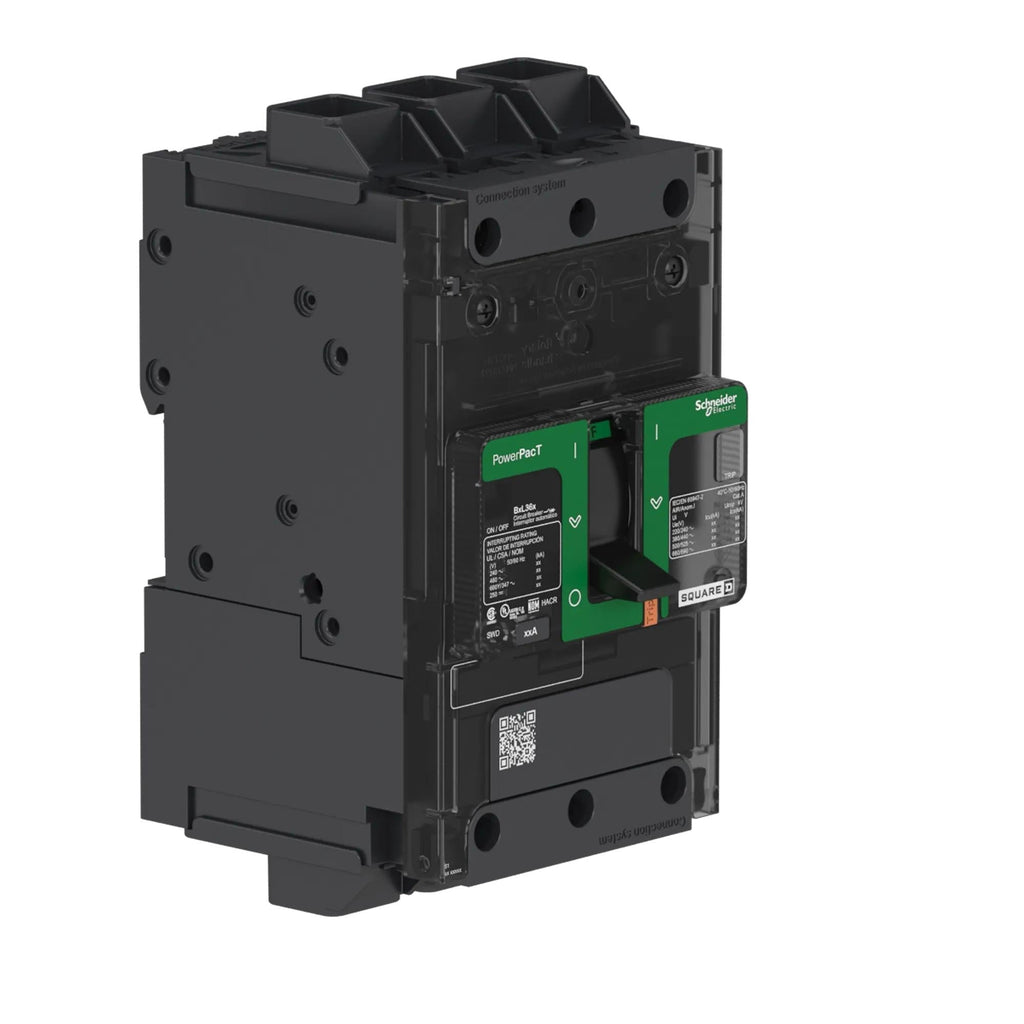

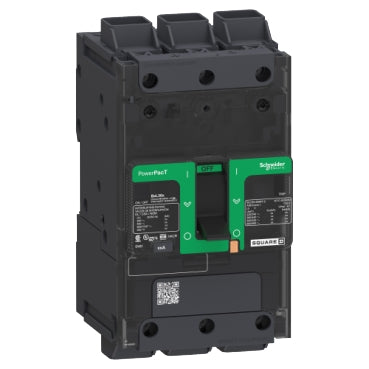

BGL36050 is a Schneider Electric PowerPacT B-Frame molded case circuit breaker designed for reliable thermal magnetic protection in three-phase applications.

This 50A, 3-pole breaker is rated for 600Y/347VAC systems and offers a breaking capacity of 18kA at 600VAC, 35kA at 480VAC, and 65kA at 240VAC. It features unit mount construction with both traditional back pan and integrated DIN rail mounting options for flexible installation. The breaker is equipped with EverLink lugs to help prevent cable loosening and includes an integral push-to-trip button for manual operation. It is dual-rated for AC/DC applications and complies with major international standards.

Key Specifications
• Amperage: 50A
• Voltage: 600Y/347VAC
• Poles: 3

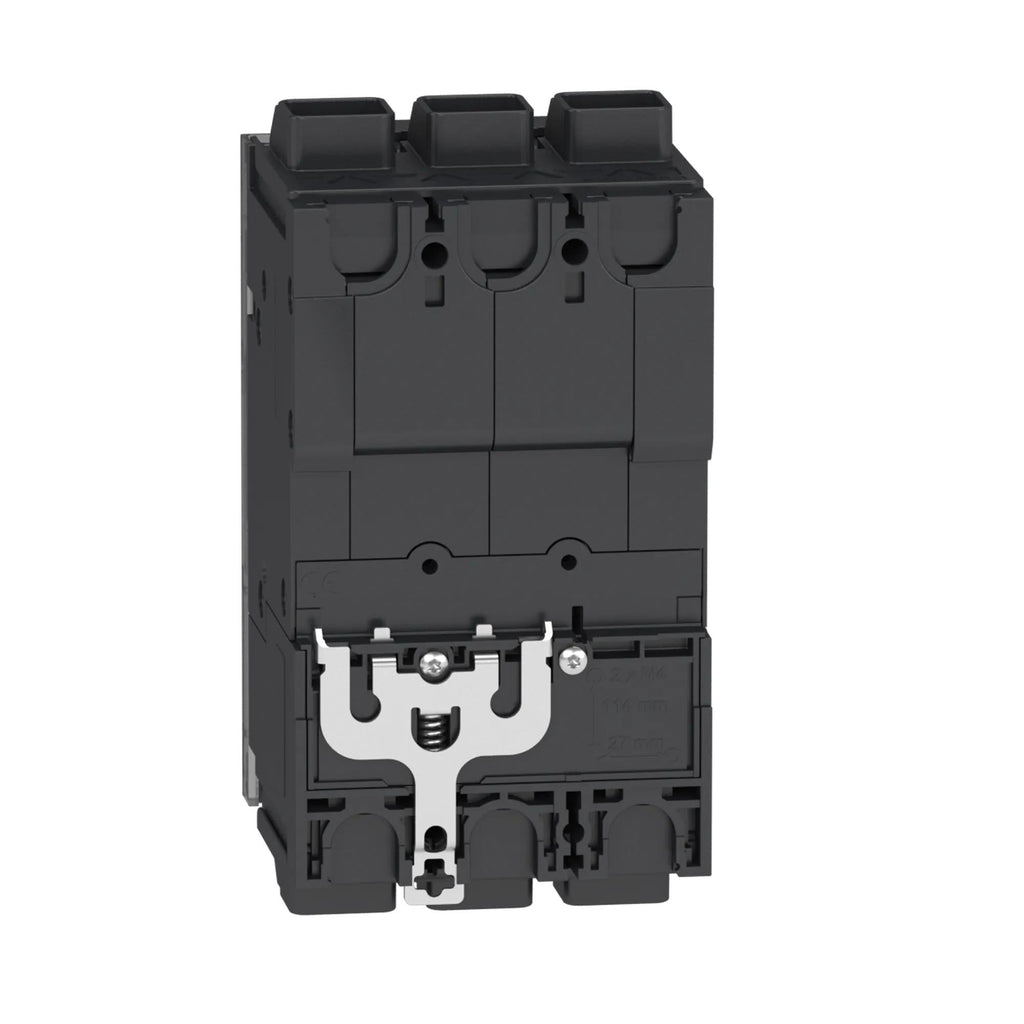

• Mounting Type: Unit mount (back pan or DIN rail)
• Interrupt Rating: 18kA @ 600VAC, 35kA @ 480VAC, 65kA @ 240VAC
• Series/Frame: PowerPacT B-Frame
• Trip Unit: Thermal magnetic
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Continuous Current Rating: 80%
• Connection: EverLink lugs (both ends)
• Manual Trip: Integral push-to-trip button
• Environmental: Recyclable packaging, carbon footprint data available

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGL36050
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 606481154104
• GTIN : 03606480000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.15
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-2, GB 14048.2, NEMA AB1, UL 489, CSA C22.2 No 5, EN/IEC 60947-5-1, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
