BGL36040 - Schneider Electric PowerPacT B 40A 3-Pole 600Y/347VAC 18kA Interrupt Rating Molded Case Circuit Breaker, Unit Mount, Thermal Magnetic Trip, UL 489, CSA, CE, NOM, CCC, EAC Certified

BGL36040

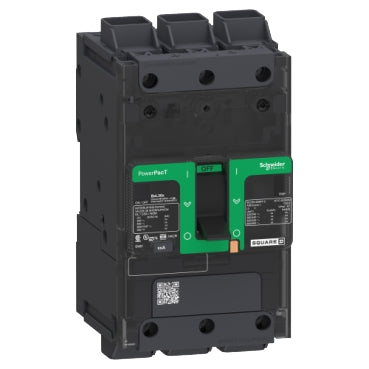

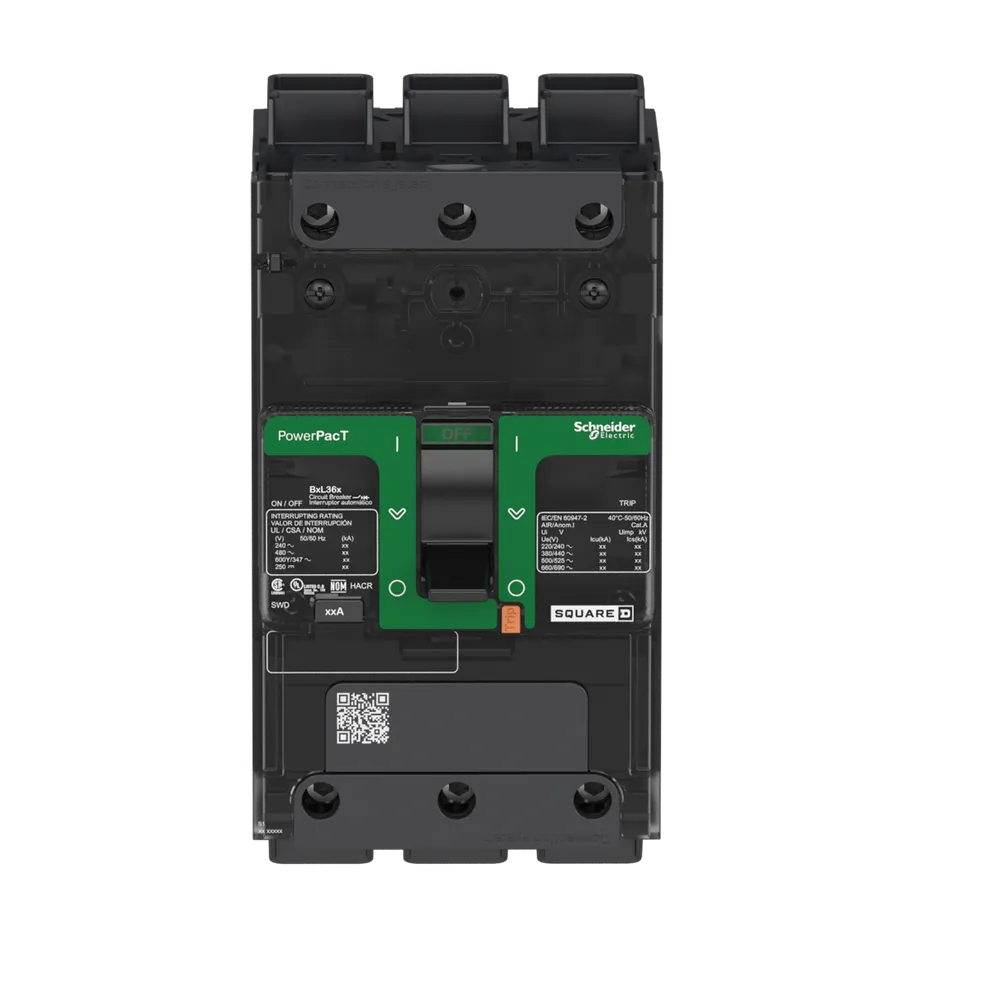

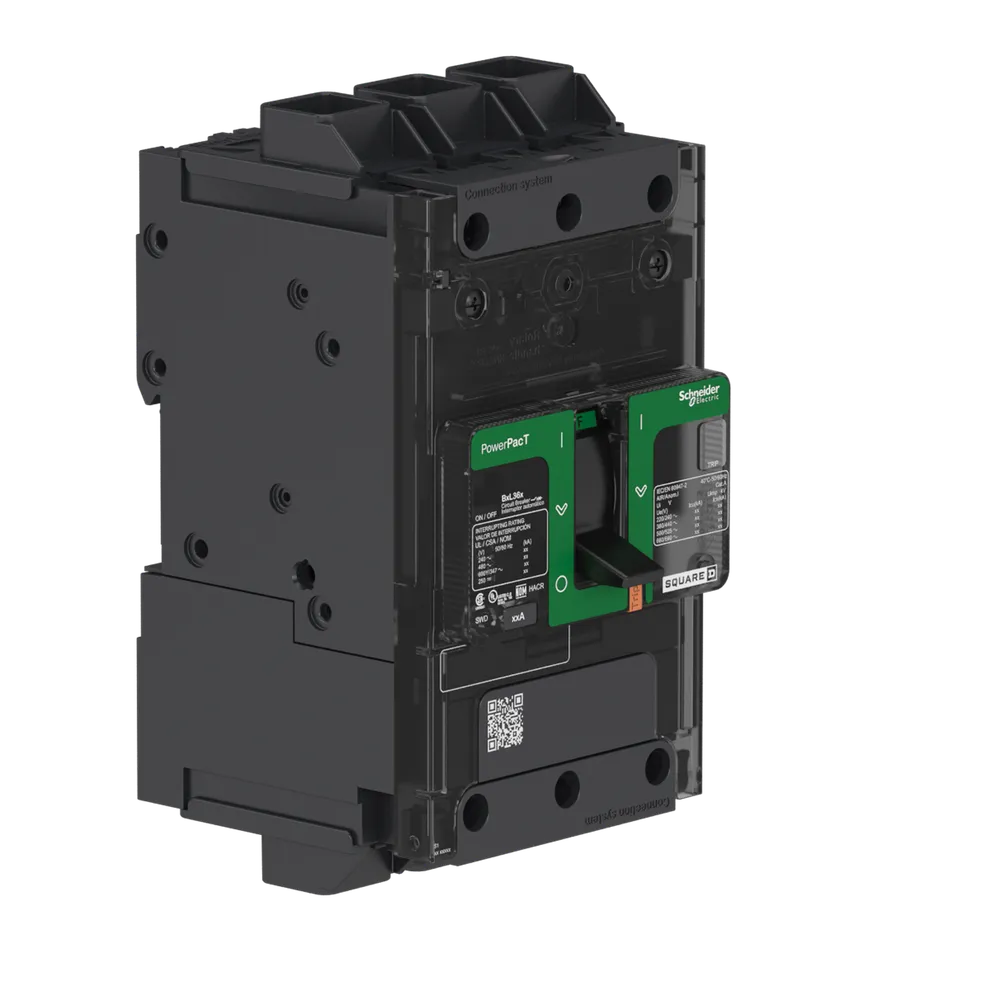

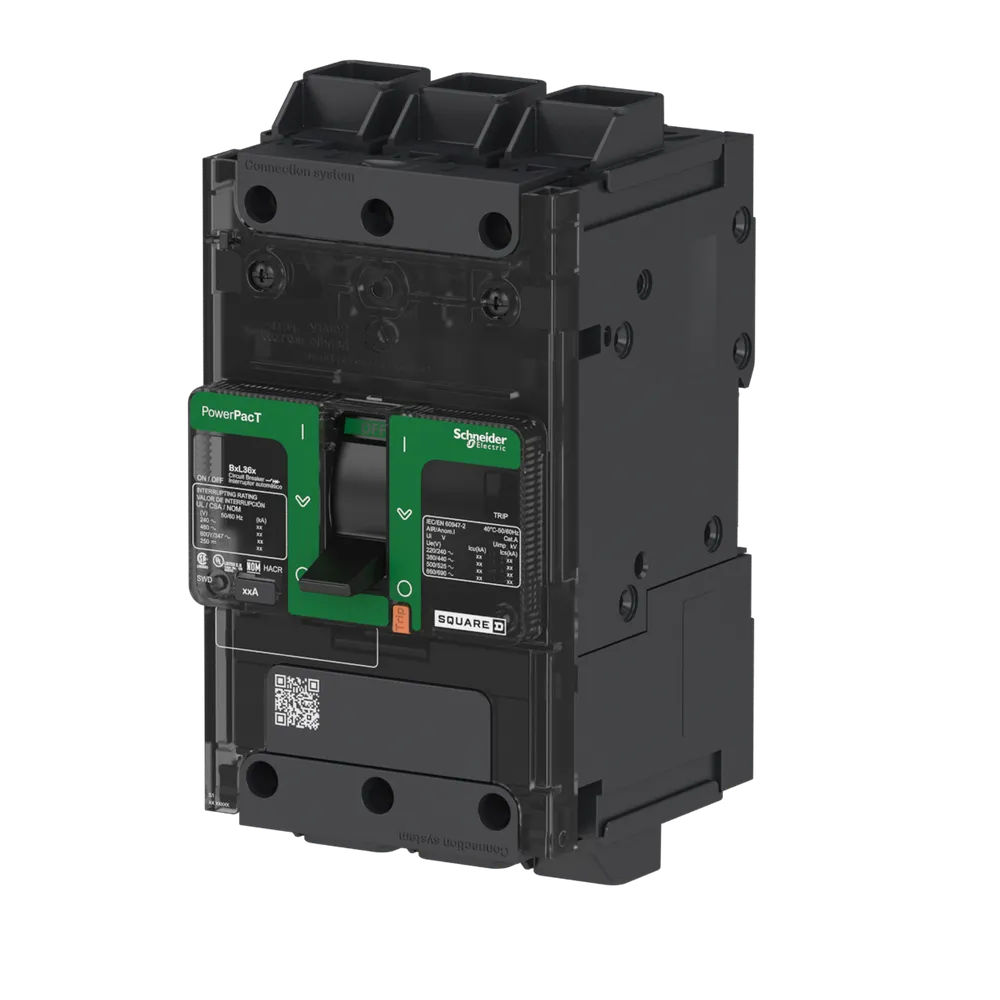

BGL36040 is a Schneider Electric PowerPacT B series molded case circuit breaker designed for reliable protection in commercial and industrial applications.

This 3-pole, 40A circuit breaker features a thermal magnetic trip unit, unit mounting, and is rated for 600Y/347VAC systems with an 18kA interrupting capacity at 600Y/347VAC. It is dual rated for AC/DC applications and offers three levels of breaking capacity. The breaker is housed in a compact, durable enclosure with front cover IP40 protection and meets rigorous international standards for safety and performance.

Key Specifications
• Amperage: 40A
• Voltage: 600Y/347VAC
• Poles: 3
• Mounting Type: Unit mount
• Interrupt Rating: 18kA at 600Y/347VAC (also 65kA at 240VAC, 35kA at 480VAC)
• Series/Frame: PowerPacT B
• Trip Unit: Thermal magnetic
• Certifications: UL 489, CSA C22.2 No. 5, CE, NOM, CCC, EAC, GB 14048.2, EN/IEC 60947-2
• Continuous Current Rating: 80%
• Degree of Protection: IP40 (front cover)
• Operating Temperature: -25 to 70°C (-13 to 158°F)
• Dimensions: 3.19 in W x 3.15 in D x 5.39 in H (81 x 80 x 137 mm)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGL36040
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 606481154098
• GTIN : 03606480000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.93
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : UL 489, GB 14048.2, NMX J-266, CSA C22.2 No 5, EN/IEC 60947-2, NEMA AB1, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
