BGL36030 - Eaton 30 A 600 V AC 3-Pole Molded Case Circuit Breaker, G-Frame, Thermal-Magnetic Trip

BGL36030

BGL36030 is a molded case circuit breaker manufactured by Eaton. It is a G-frame breaker rated for 30 A, 3 poles, and 600 V AC. The unit provides thermal-magnetic protection for overloads and short circuits in industrial and commercial power distribution systems. The BGL36030 combines high performance with a compact design, making it ideal for feeder and branch circuit protection. It can be panel or DIN-mounted and accepts a wide range of Eaton accessories for shunt trips, auxiliary contacts, and terminal options.

• Part Number: BGL36030
• Manufacturer: Eaton
• Series / Frame: G-Frame
• Product Type: Molded Case Circuit Breaker (MCCB)
• Poles: 3
• Amperage Rating: 30 A
• Voltage Rating: 600 V AC / 250 V DC
• Trip Unit Type: Fixed Thermal-Magnetic
• Interrupting Rating: Up to 65 kA @ 480 V AC (varies by configuration)

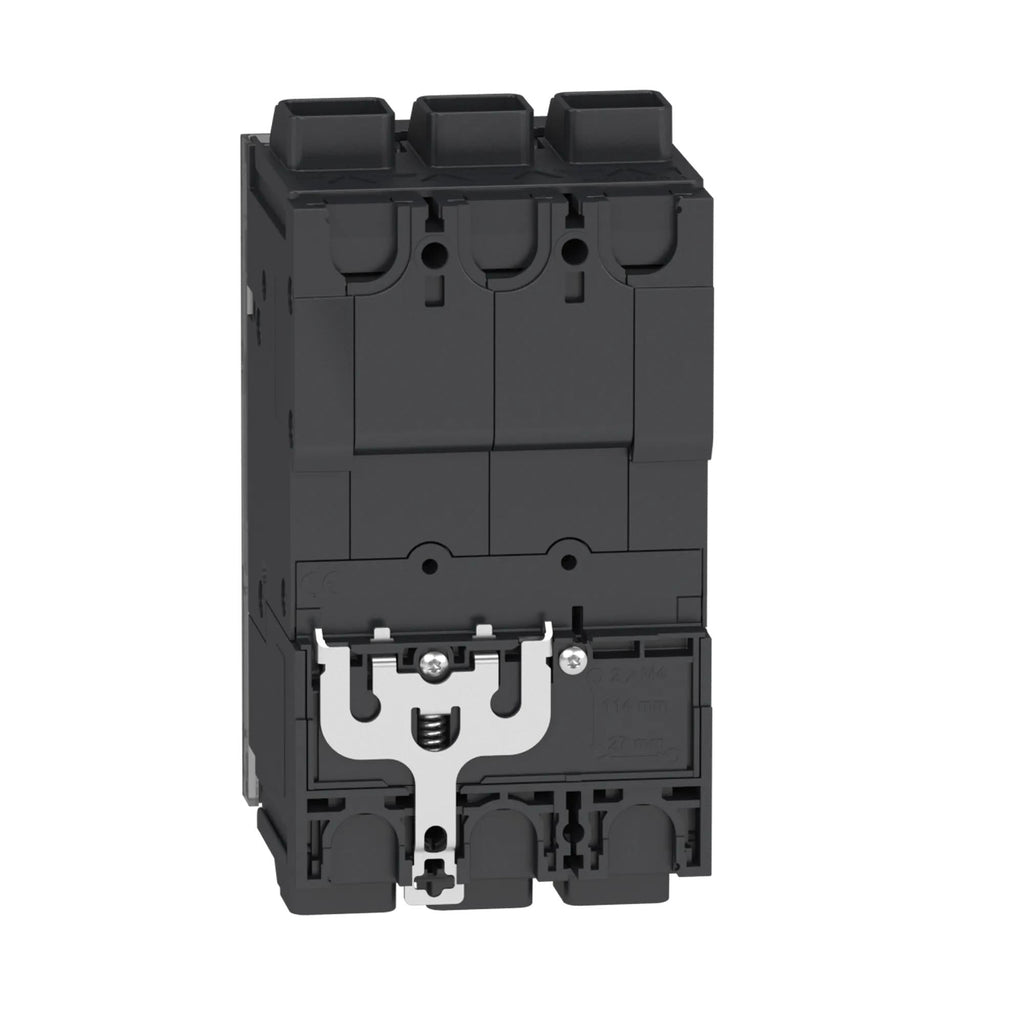

• Mounting Type: Bolt-on or panel mount
• Application: Feeder and branch circuit protection for panels and switchboards
• Certifications: UL 489 Listed, CSA Certified, IEC 60947-2 Compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGL36030
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 606481154081
• GTIN : 03606480000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.941
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-2, GB 14048.2, NMX J-266, EN/IEC 60947-5-1, NEMA AB1, CSA C22.2 No 5, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
