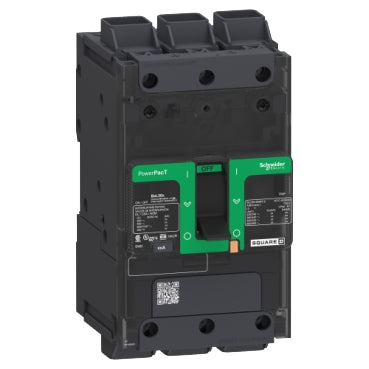

BGL36025 - Schneider Electric PowerPact B-Frame Molded Case Circuit Breaker, 25A, 3-Pole, 480V/600V, 18kA/35kA/65kA Interrupt, Thermal-Mechanical Trip, NEMA AB4/IP40, UL 489

BGL36025

BGL36025 Schneider Electric PowerPact B-Frame molded case circuit breaker delivers reliable protection for industrial and commercial electrical systems.

This 3-pole, 25A circuit breaker features a thermal-mechanical trip unit, compact B-frame design, and is rated for 480VAC/600VAC applications. It offers high interrupting capacity—65kA at 240VAC, 35kA at 480VAC, and 18kA at 600Y/347VAC—ensuring robust protection against overloads and short circuits. The breaker is UL 489 listed, NEMA AB4/IP40 rated, and supports flexible mounting and termination options for easy integration into control or power panels.

Key Specifications
• Part Number: BGL36025
• Manufacturer: Schneider Electric
• Amperage: 25A
• Voltage: 480VAC, 600VAC (18kA @ 600Y/347VAC)
• Poles: 3
• Mounting Type: Din rail (field configurable)
• Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC
• Series/Frame: PowerPact B-Frame
• Trip Unit: Thermal-mechanical
• Certifications: UL 489, NEMA AB4, IP40
• Dimensions: 80 mm L x 81 mm W x 137 mm H
• Enclosure: NEMA AB4/IP40
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGL36025
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901075103
• GTIN : 00785901075103
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.998
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, EN/IEC 60947-2, UL 489, GB 14048.2, EN/IEC 60947-5-1, CSA C22.2 No 5, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
