BGL36015 - Schneider Electric PowerPact B 15A 3 Pole 600Y/347VAC Molded Case Circuit Breaker

BGL36015

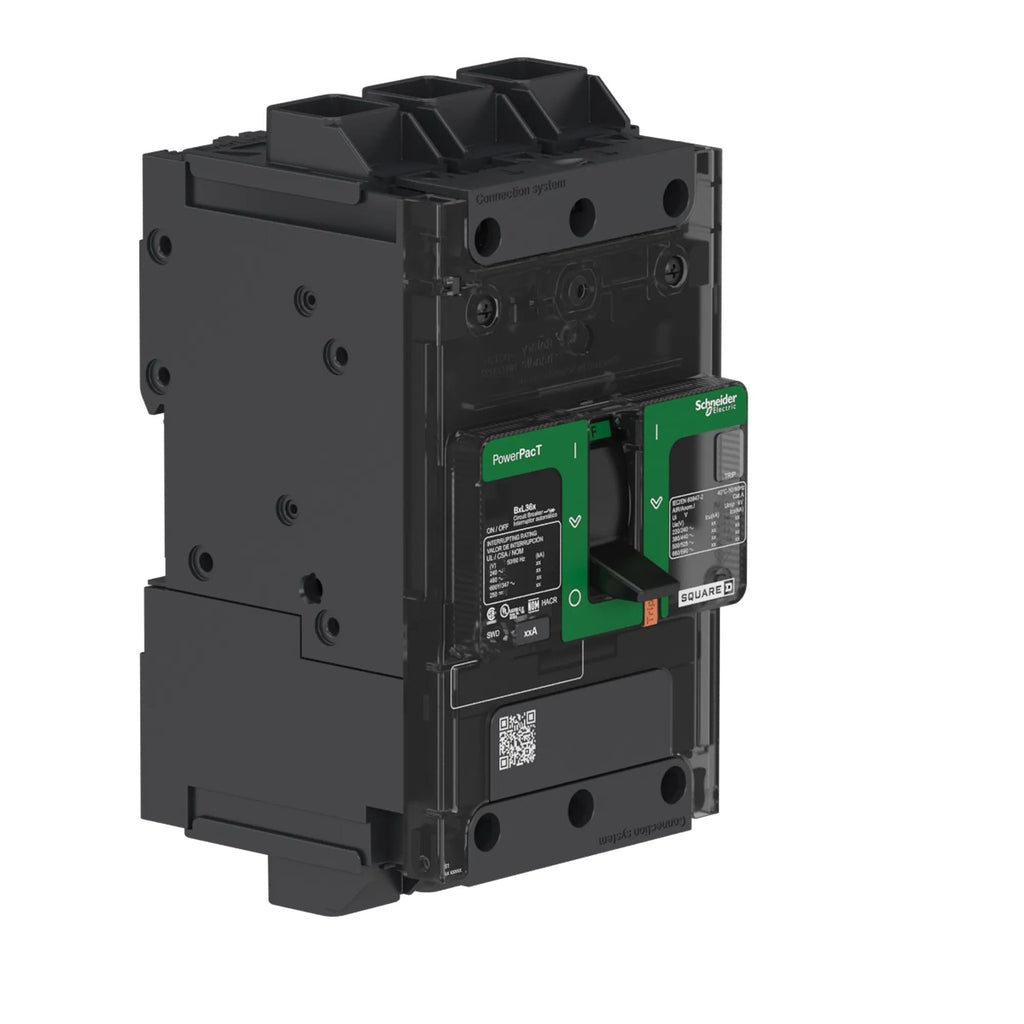

BGL36015 is a Schneider Electric PowerPact B molded case circuit breaker rated for 15 amps and 3 poles, designed for industrial and commercial electrical distribution.This circuit breaker features a thermal magnetic trip unit with a 600Y/347VAC voltage rating and interrupt ratings of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC. It supports unit mount installation with integrated DIN rail and back pan mounting capability. The device complies with UL 489, CSA, IEC 60947-2, NOM, CCC, CE, and other certifications, ensuring reliable protection and safety.

• Amperage: 15 A
• Voltage Rating: 600Y/347 VAC
• Number of Poles: 3
• Frame/Series: PowerPact B
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 65 kA @ 240 VAC, 35 kA @ 480 VAC, 18 kA @ 600 VAC

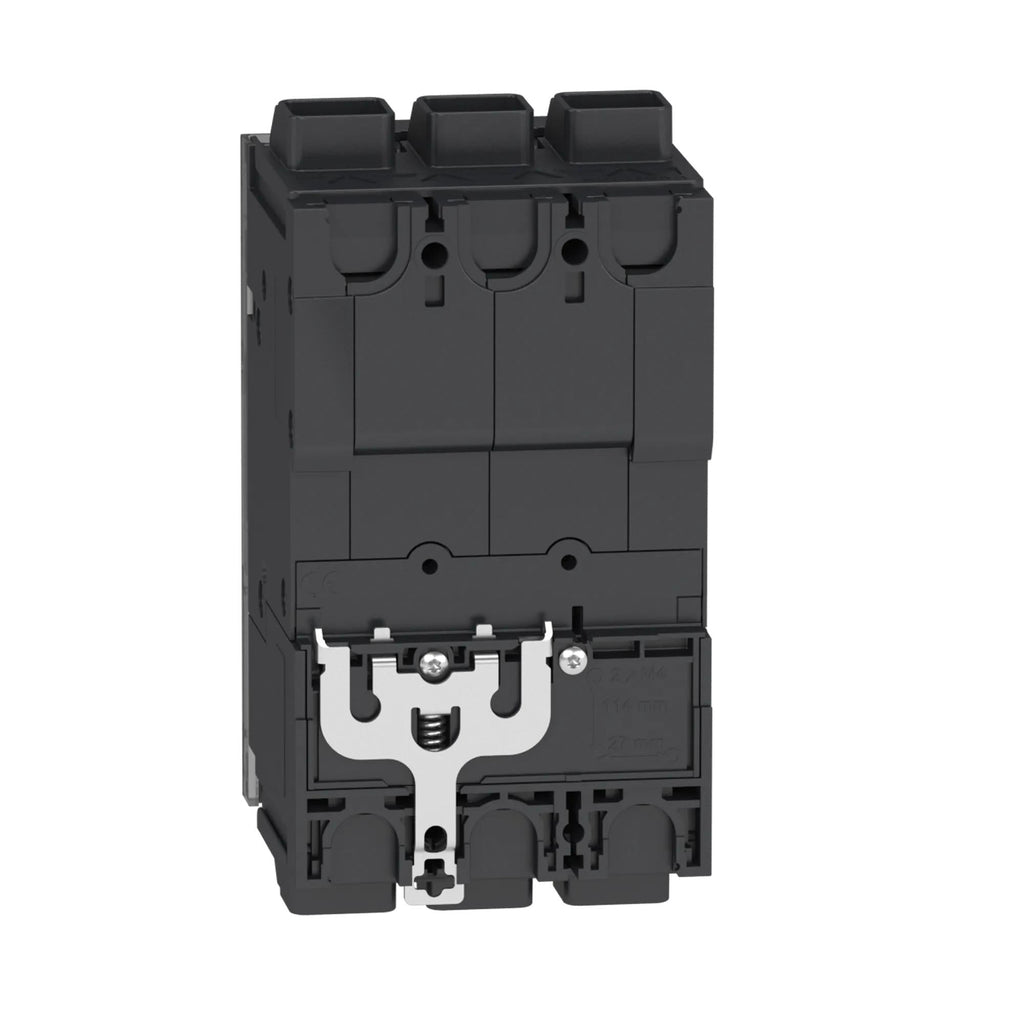

• Mounting Type: Unit mount with DIN rail and back pan
• Breaking Capacity Code: G
• Certifications: UL 489, CSA, IEC 60947-2, NOM, CCC, CE
• Mechanical Durability: 20,000 cycles
• Application: Industrial control panels, commercial OEM, electrical distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGL36015
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 15
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901467939
• GTIN : 00785901467939
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.13 lb
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : CSA C22.2 No 5, NMX J-266, EN/IEC 60947-2, NEMA AB1, GB 14048.2, UL 489, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
