BGL26125 - Schneider Electric PowerPact B Circuit Breaker 125 Amp 2 Pole 600Y/347VAC 18kA Interrupt

BGL26125

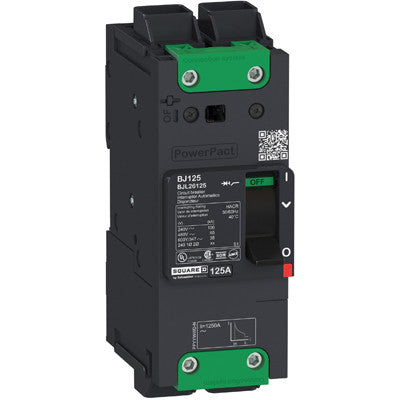

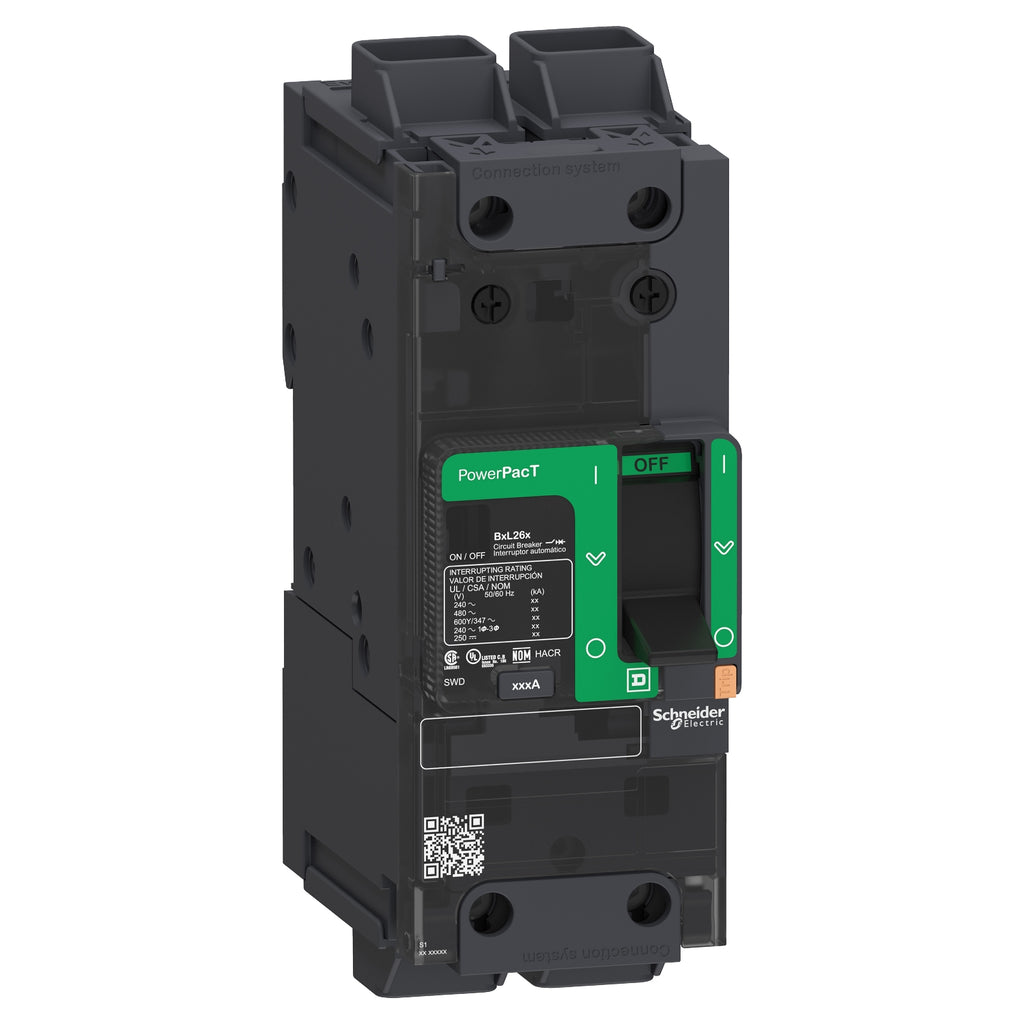

BGL26125 is a Schneider Electric PowerPact B series molded case circuit breaker designed for reliable industrial power protection.This 2 pole circuit breaker is rated for 125 amps with a maximum operational voltage of 600Y/347 VAC. It features a thermal-magnetic trip unit and an interrupt rating of 18kA at 600Y/347 VAC, meeting UL 489 standards. The breaker has an 80% continuous current rating and is designed for DIN rail mounting, providing compact and efficient installation. It carries a G interrupt rating with additional interrupt capacities of 65kA at 240 VAC and 35kA at 480 VAC. The breaker is UL listed and built for durability and safety in demanding electrical environments.

Key Specifications
• Amperage: 125 Amp
• Poles: 2
• Voltage Rating: 600Y/347 VAC
• Interrupt Rating: 18kA at 600Y/347 VAC
• Additional Interrupt Ratings: 65kA at 240 VAC, 35kA at 480 VAC
• Frame Type: PowerPact B
• Trip Unit: Thermal-Magnetic
• Continuous Current Rating: 80%
• Mounting Type: DIN Rail
• UL Listed: UL 489
• Interrupt Code: G
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BGL26125
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable



Product Data

• UPC : 785901074656
• GTIN : 00785901074656
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.006
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NMX J-266, EN/IEC 60947-2, UL 489, CSA C22.2 No 5, GB 14048.2, NEMA AB1, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
