BGL26100 - Schneider Electric 100A 2-Pole PowerPact B Circuit Breaker 600Y/347VAC Thermal Magnetic Trip

BGL26100

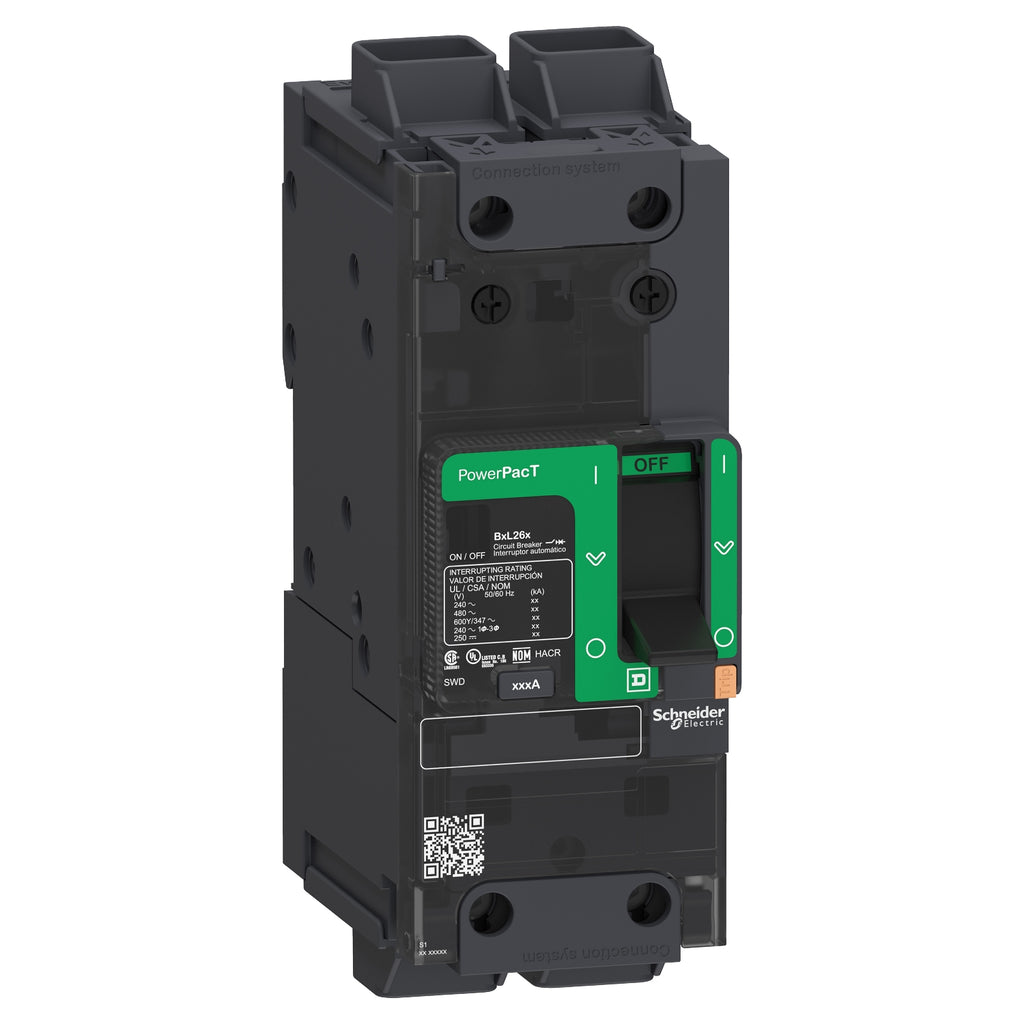

BGL26100 is a Schneider Electric PowerPact B molded case circuit breaker rated for 100 amps and 600Y/347 volts AC with 2 poles and thermal magnetic trip protection.This circuit breaker features a 35 kA interrupt rating at 480V AC and is designed for industrial applications. It supports line/load lug connections and can be mounted on DIN rails or threaded mounts. The breaker frame is B, with a toggle actuator and a thermal magnetic trip unit. It is rated for 50/60 Hz frequency and operates within a temperature range of -13 to 158 degrees Fahrenheit. The enclosure type is NEMA AB4/IP40, and it accommodates wire sizes from 14 to 3/0 AWG for copper and 6 to 2/0 AWG for aluminum.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600Y/347 VAC
• Number of Poles: 2
• Interrupt Rating: 18/35/65 kA
• Frame: PowerPact B
• Trip Type: Thermal Magnetic
• Mounting Type: DIN Rail or Threaded Mount
• Frequency: 50/60 Hz
• Wire Size: 14 to 3/0 AWG Cu, 6 to 2/0 AWG Al
• Enclosure: NEMA AB4/IP40
• Operating Temperature: -13 to 158 °F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BGL26100
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable



Product Data

• UPC : 785901074076
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1.694
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : UL 489, NMX J-266, EN/IEC 60947-5-1, NEMA AB1, GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
