Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
BGL26080

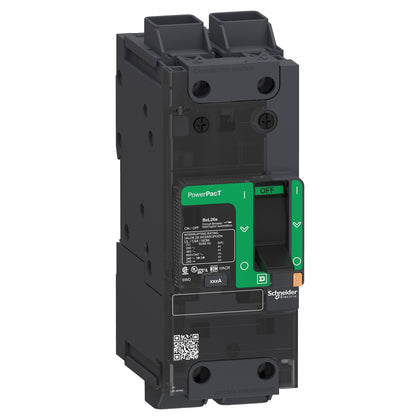

BGL26080 is a Schneider Electric PowerPacT B Frame molded case circuit breaker designed for reliable industrial power protection.
This 2 pole circuit breaker has an 80 Amp continuous current rating and operates at a maximum voltage of 600Y/347 VAC. It features a thermal-magnetic trip unit and a G interrupt rating, providing breaking capacities of 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600Y/347 VAC, and 20 kA at 250 VDC. The breaker is UL 489 listed and mounts easily on a DIN rail for flexible installation.
- Key Specifications
- Amperage: 80 Amp
- Poles: 2 Pole
- Voltage Rating: 600Y/347 VAC, 250 VDC
- Interrupt Rating: G Code
- Breaking Capacity: 65 kA @ 240 VAC, 35 kA @ 480 VAC, 18 kA @ 600Y/347 VAC, 20 kA @ 250 VDC
- Frame Type: PowerPacT B Frame
- Trip Unit: Thermal Magnetic
- Mounting Type: DIN Rail
- UL Listing: UL 489
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: BGL26080
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BGL
- Voltage : 600
- Amperage : 80
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Everlink Lug Both Ends
- Frame Size : 125A/BG
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Not Applicable
Product Data
- UPC : 785901073710
- GTIN : 00785901073710
- Country of Origin : United States
- Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight : 2
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : UL 489, EN/IEC 60947-5-1, CSA C22.2 No 5, GB 14048.2, NEMA AB1, NMX J-266, EN/IEC 60947-2
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
