BGL26060 - Schneider Electric PowerPacT B 60 Amp 2 Pole 600VAC Circuit Breaker

SKU: BGL26060-New
Condition: New
Price:
Call For Price
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

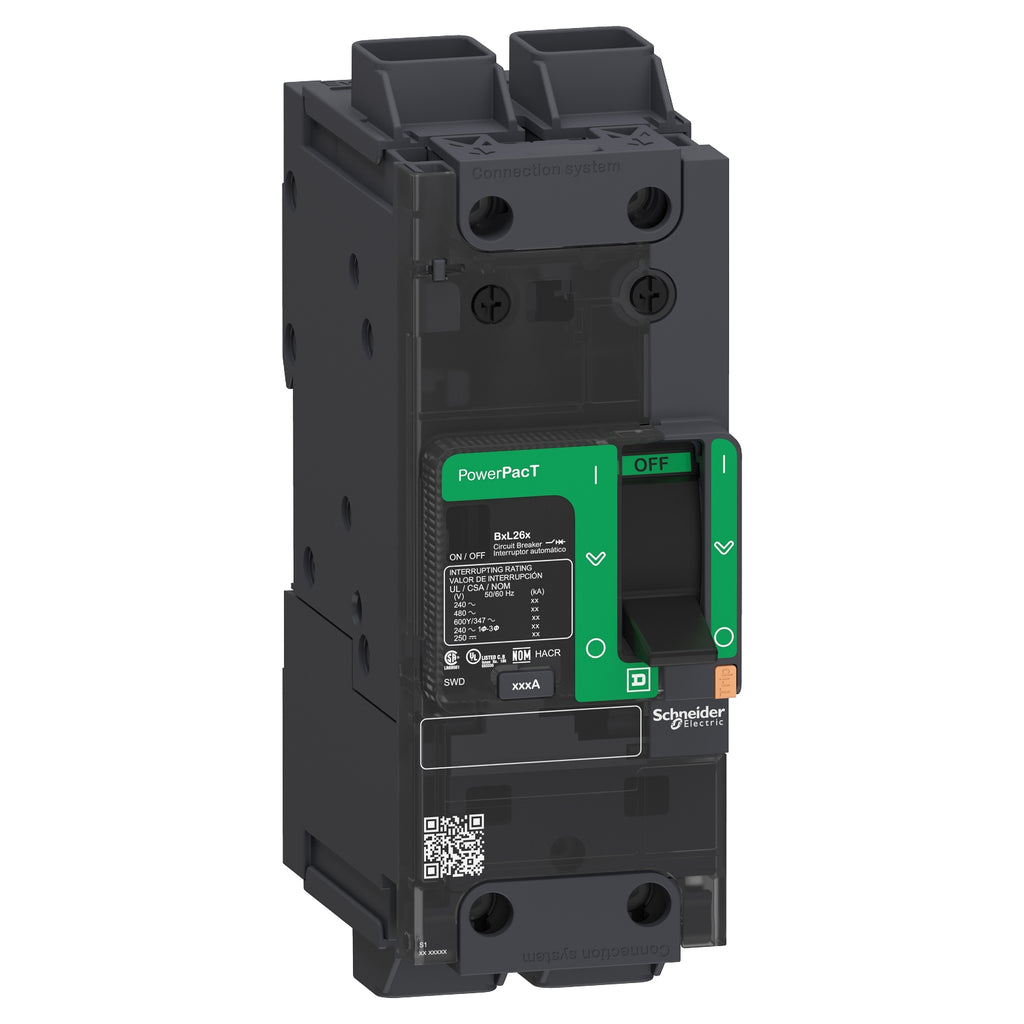

BGL26060 - Essential Electric Supply
BGL26060 - Schneider Electric Feed-Thru 600V 60A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BGL26060 - Essential Electric Supply
BGL26060 - Schneider Electric Feed-Thru 600V 60A 2 pole circuit breaker 35kA@480V - Essential Electric Supply

Description

BGL26060


BGL26060 is a Schneider Electric PowerPacT B series molded case circuit breaker rated for 60 amperes at 2 poles with a maximum voltage of 480 VAC or 250 VDC. This thermal-magnetic breaker is designed for industrial and commercial power distribution applications requiring reliable overcurrent protection. The breaker features DIN rail mounting for easy installation in control panels and switchboards. With multiple interrupt ratings across different voltage levels, this breaker provides versatile protection for various system configurations. UL 489 listed and certified to meet industry standards for safety and performance.
  • Amperage Rating: 60 Amp
  • Poles: 2 Pole
  • Frame Type: PowerPacT B
  • Maximum Voltage: 480 VAC / 250 VDC
  • Mounting: DIN Rail
  • Trip Unit: Thermal Magnetic
  • Interrupt Rating at 240 VAC: 65 kA
  • Interrupt Rating at 480 VAC: 35 kA
  • Interrupt Rating at 600 VAC: 18 kA
  • Certification: UL 489
  • Continuous Current Rating: 80%
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BGL26060
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BGL
  • Voltage : 600
  • Amperage : 60
  • Phase : 1
  • Poles : 2
  • AIC rating : 35kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Everlink Lug Both Ends
  • Frame Size : 125A/BG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 60648703165
  • GTIN : 03606487031659
  • Country of Origin : United States
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 2.004
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : EN/IEC 60947-5-1, CSA C22.2 No 5, GB 14048.2, NMX J-266, EN/IEC 60947-2, NEMA AB1, UL 489
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper
