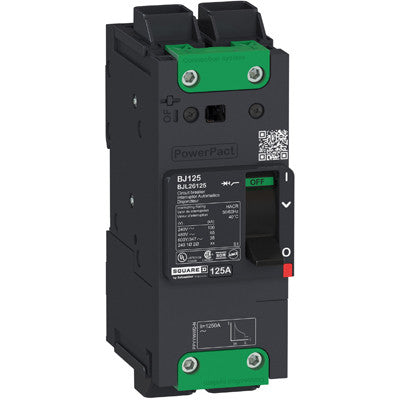

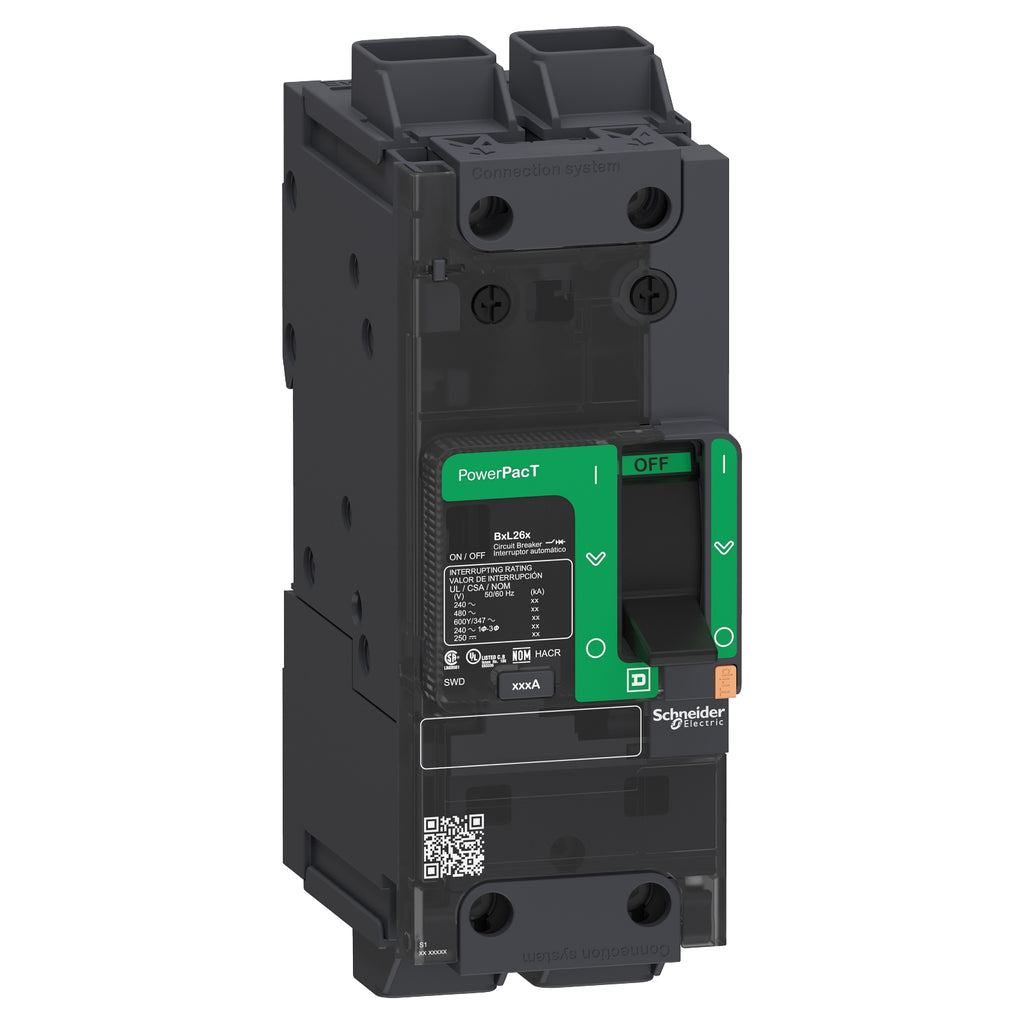

BGL26045 - Schneider Electric 45 Amp 600V 2 Pole PowerPact B-Frame Circuit Breaker

BGL26045

BGL26045 is a Schneider Electric 45 Amp, 2 pole PowerPact B-Frame circuit breaker rated for up to 600 Volts AC with thermal-magnetic trip unit.This circuit breaker features a breaking capacity of 18kA at 600Y/347VAC and is designed for reliable industrial power distribution protection. It includes lug terminals and is suitable for use in a variety of electrical systems requiring a compact, high-performance molded case breaker with thermal-magnetic protection.

• Amperage: 45 Amp
• Voltage Rating: 600V AC (600Y/347VAC)
• Poles: 2 Pole
• Frame Type: PowerPact B-Frame
• Interrupt Rating: 18kA at 600Y/347VAC
• Trip Unit: Thermal-Magnetic
• Mounting Type: Lug Terminals
• UL Listed: UL 489
• Breaking Capacity: 18kA at 600Y/347VAC
• Manufacturer: Schneider Electric

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGL26045
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 45
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901073659
• GTIN : 00785901073659
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1.5 lb
• Standards : UL 489, EN/IEC 60947-2, EN/IEC 60947-5-1, NEMA AB1, NMX J-266, GB 14048.2, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
