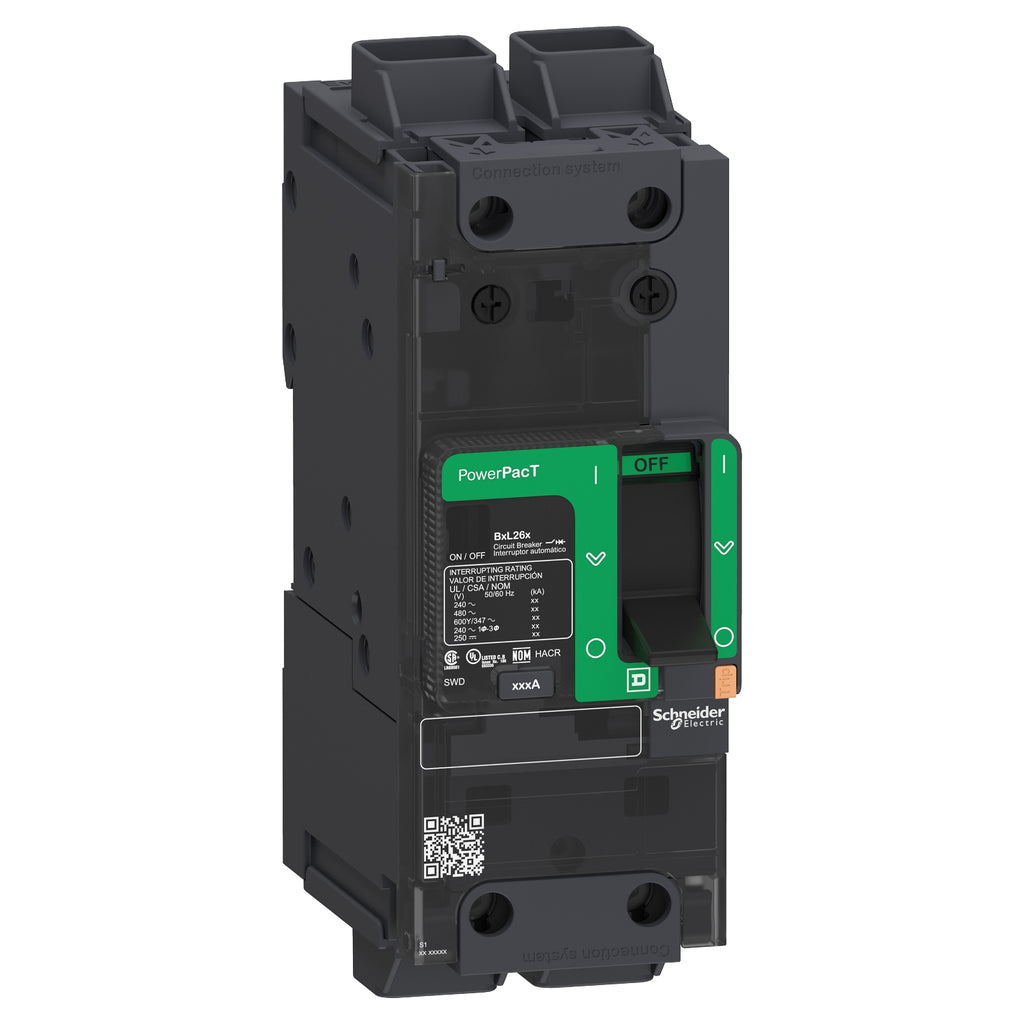

BGL26030 - Schneider Electric PowerPact B 30A 2 Pole 600V Molded Case Circuit Breaker

SKU: BGL26030-New
Condition: New
Price:
$750.19
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BGL26030 - Essential Electric Supply
BGL26030 - Schneider Electric Feed-Thru 600V 30A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
BGL26030 - Schneider Electric Feed-Thru 600V 30A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BGL26030 - Essential Electric Supply
BGL26030 - Schneider Electric Feed-Thru 600V 30A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
BGL26030 - Schneider Electric Feed-Thru 600V 30A 2 pole circuit breaker 35kA@480V - Essential Electric Supply

Description

BGL26030


BGL26030 is a Schneider Electric PowerPact B series molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 2-pole, 30A breaker features a thermal magnetic trip unit and is rated for 600Y/347V AC with a 18kA interrupt rating at 600Y/347V. It includes line/load lugs for easy installation and is 80% rated for continuous load applications. The breaker is UL listed and suitable for use in a wide range of electrical distribution systems. The PowerPact B series offers robust performance and durability, making it ideal for demanding environments. Its compact design and lug connections simplify wiring and reduce installation time. The breaker is compatible with standard mounting configurations and is designed for use in panelboards and switchgear.
  • Part Number: BGL26030
  • Manufacturer: Schneider Electric
  • Series/Frame: PowerPact B
  • Amperage: 30A
  • Poles: 2
  • Voltage: 600Y/347V AC
  • Interrupt Rating: 18kA at 600Y/347V
  • Mounting Type: Lug (Line/Load)
  • Continuous Rating: 80%
  • Trip Unit: Thermal Magnetic
  • Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BGL26030
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BGL
  • Voltage : 600
  • Amperage : 30
  • Phase : 1
  • Poles : 2
  • AIC rating : 35kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Temp Rating : -13–158 °F (-25–70 °C)
  • Protection : Thermal Magnetic

Product Data

  • UPC : 060648115403
  • GTIN : 03606481154033
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 2.08
  • Standards : NMX J-266, NEMA AB1, EN/IEC 60947-2, CSA C22.2 No 5, UL 489, EN/IEC 60947-5-1, GB 14048.2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper
