BGL26025 - Schneider Electric 25A 2-Pole Thermal Magnetic Circuit Breaker DIN Rail Mount

SKU: BGL26025-New
Condition: New
Price:
$486.56
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

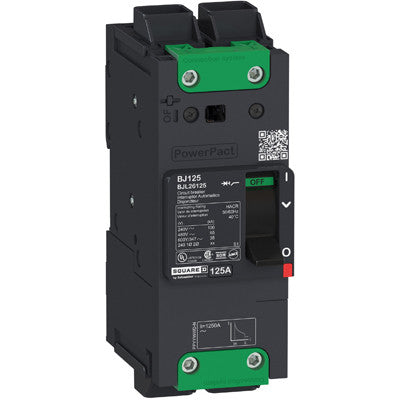

BGL26025 - Essential Electric Supply
BGL26025 - Schneider Electric Feed-Thru 600V 25A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

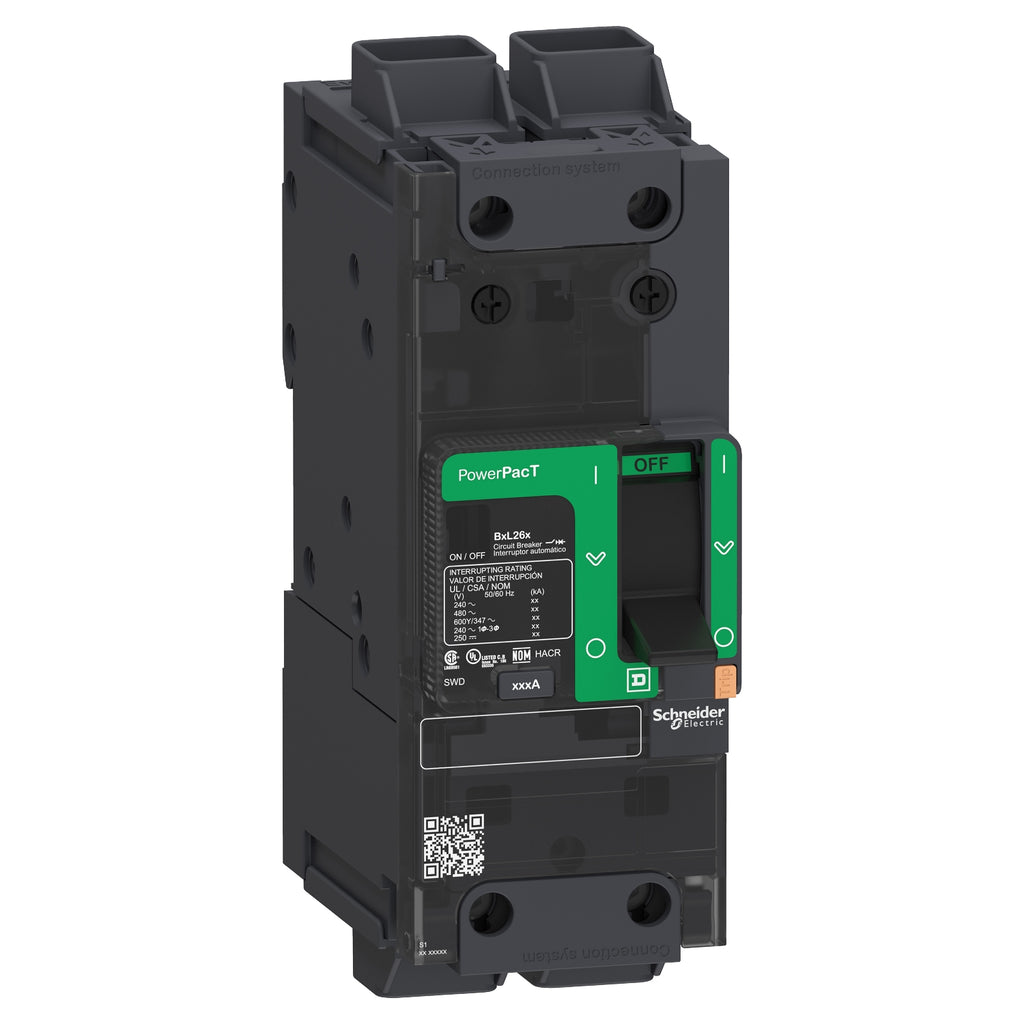

BGL26025 - Essential Electric Supply
BGL26025 - Schneider Electric Feed-Thru 600V 25A 2 pole circuit breaker 35kA@480V - Essential Electric Supply

Description

BGL26025


BGL26025 is a Schneider Electric 2-pole thermal magnetic circuit breaker rated for 25 amps and designed for DIN rail mounting.

This molded case circuit breaker features a 25 amp current rating, 2 poles, and a voltage rating up to 600 VAC. It has a thermal magnetic trip unit and a toggle actuator type. The breaker belongs to the Powerpact B frame series and offers a high interrupt rating of up to 35kA at 480V, meeting UL 489 certification standards for reliable circuit protection.

    Key Specifications
    • Amperage: 25A
    • Voltage Rating: Up to 600 VAC
    • Number of Poles: 2
    • Mounting Type: DIN Rail
    • Breaker Type: Thermal Magnetic
    • Interrupt Rating: 35kA @ 480V
    • Series/Frame: Powerpact B Frame
    • Trip Unit: Thermal Magnetic
    • Actuator Type: Toggle
    • Certifications: UL 489 Listed

    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


    Specifications

    • Part Number: BGL26025
    • Manufacturer : Schneider Electric
    • Brand : Schneider Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : BGL
    • Voltage : 600
    • Amperage : 25
    • Phase : 1
    • Poles : 2
    • AIC rating : 35kA@480V
    • Connection : Feed-Thru
    • Functions : Long Time and Instantaneous Trip
    • Terminal Connection : Everlink Lug Both Ends
    • Frame Size : 125A/BG
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : Not Applicable

    Product Data

    • UPC : 785901073086
    • GTIN : 00785901073086
    • Country of Origin : United States
    • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
    • Weight : 1.5
    • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
    • Standards : UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2, NMX J-266, NEMA AB1, CSA C22.2 No 5, GB 14048.2
    • Certification : UL, IEC, CCC, EAC, CSA, NOM
    • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
      AWG 14...AWG 3/0 rigid or stranded aluminium/copper
