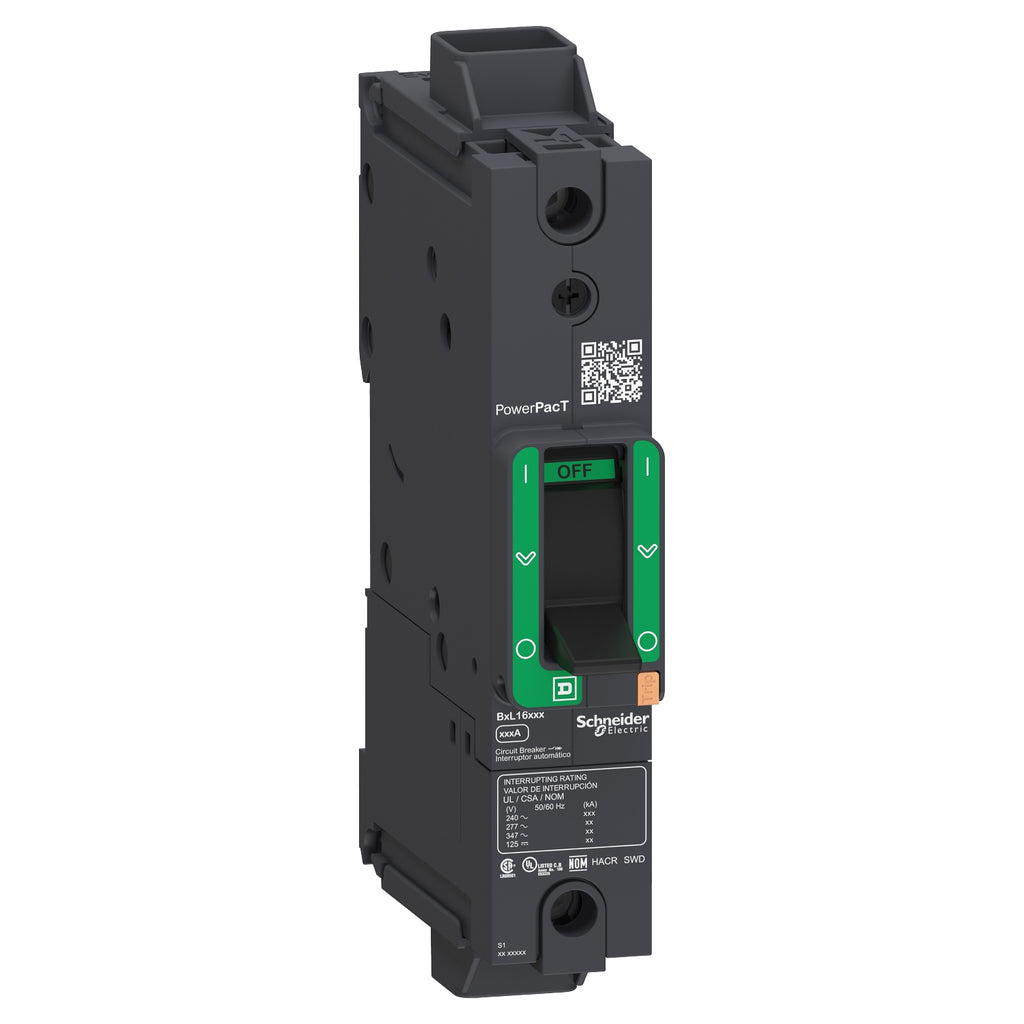

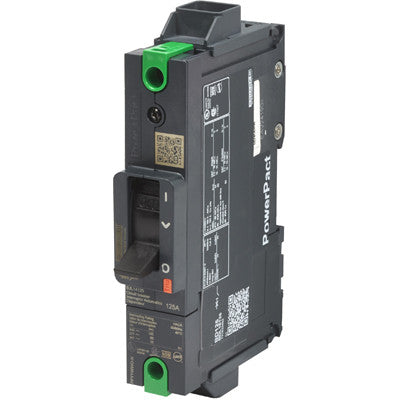

BGL16100 - Schneider Electric PowerPact B 100A 1-Pole Circuit Breaker 600Y/347VAC 18kA Thermal Magnetic

BGL16100

BGL16100 is a single-pole, 100A PowerPact B-frame circuit breaker designed for reliable thermal magnetic protection in commercial and industrial applications. This unit features EverLink lugs on both ends and is rated for 600Y/347VAC with an interrupt rating of 18kA. The BGL16100 is suitable for unit mount installations and offers robust performance in demanding environments. This PowerPact B-frame breaker provides dual-rated AC/DC protection and is certified to UL, CSA, NOM, IEC, CCC, and CE standards. Its compact design and high interrupt capacity make it ideal for a wide range of power distribution needs.

• Part Number: BGL16100
• Manufacturer: Schneider Electric
• Series/Frame: PowerPact B
• Amperage: 100A
• Poles: 1
• Voltage: 600Y/347VAC
• Interrupt Rating: 18kA
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic
• Lug Type: EverLink lugs both ends
• Certifications: UL, CSA, NOM, IEC, CCC, CE
• Application: Commercial and Industrial Power Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGL16100
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 1
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 785901072850
• GTIN : 00606481193400
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1.27
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, EN/IEC 60947-5-1, GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5, UL 489, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
