BGL16040 - Schneider Electric PowerPacT B 40A 1-Pole Thermal Magnetic Circuit Breaker 600Y/347VAC 65kA Interrupt Rating

Save $307.76
SKU: BGL16040-New
Condition: New
Price:
$407.74 $715.50
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

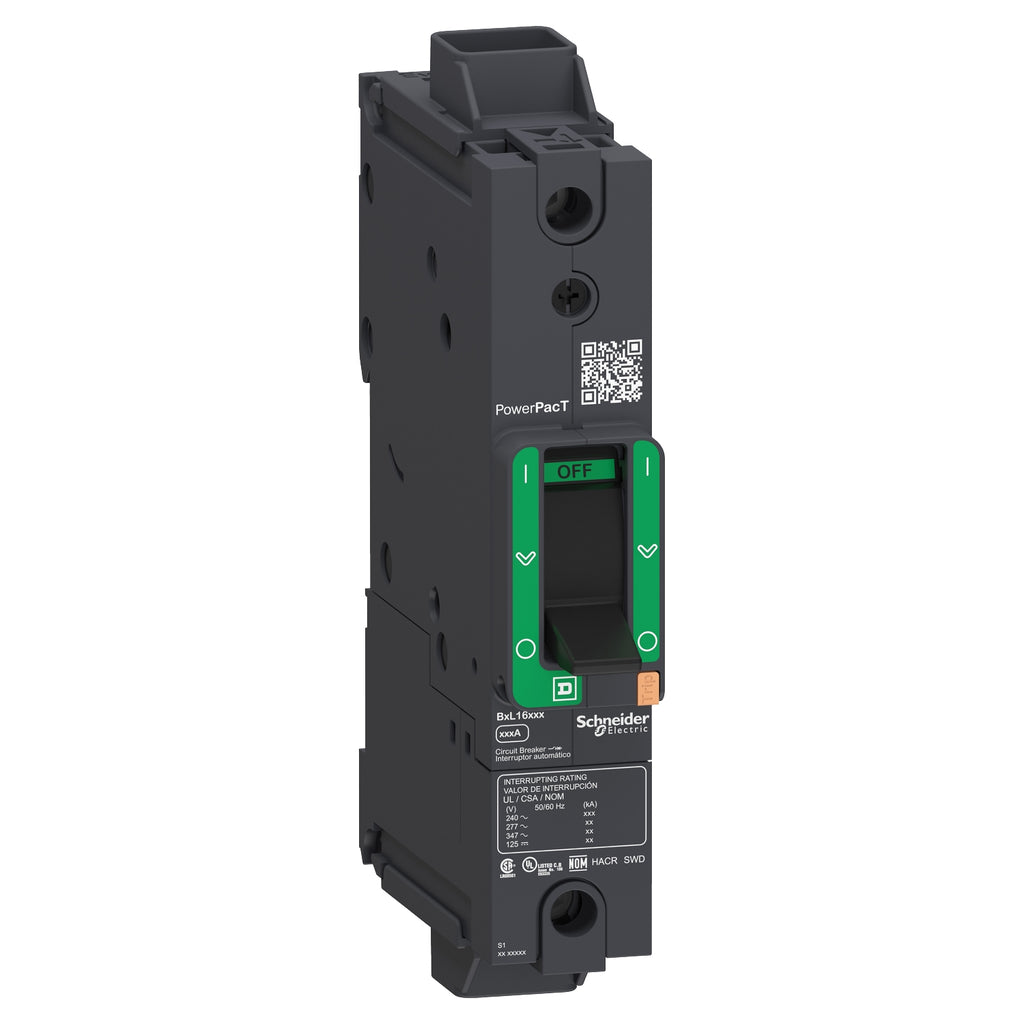

BGL16040 - Essential Electric Supply
BGL16040 - Schneider Electric Feed-Thru 600V 40A 1 pole circuit breaker 35kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

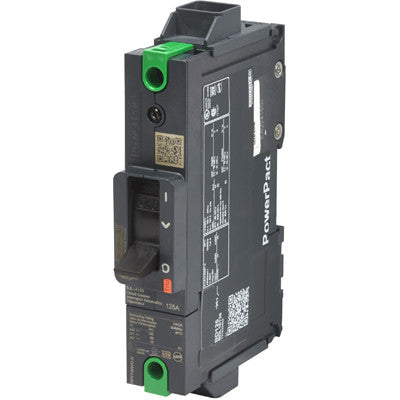

BGL16040 - Essential Electric Supply
BGL16040 - Schneider Electric Feed-Thru 600V 40A 1 pole circuit breaker 35kA@480V - Essential Electric Supply

Description

BGL16040


BGL16040 is a Schneider Electric PowerPacT B-frame circuit breaker providing 40 amp thermal magnetic protection with a 1-pole configuration and 600Y/347VAC voltage rating.This circuit breaker features a 65kA interrupt rating at 240 VAC, 35kA at 480 VAC, and 18kA at 600Y/347 VAC, equipped with EverLink lugs for secure cable connections and dual-break rotating contacts to reduce peak short circuit currents.
    Key Specifications
    • Amperage: 40 Amp
    • Poles: 1 (Single Pole)
    • Voltage Rating: 600Y/347 VAC
    • Interrupt Rating: 65 kA at 240 VAC, 35 kA at 480 VAC, 18 kA at 600Y/347 VAC
    • Frame/Series: PowerPacT B
    • Trip Unit: Thermal Magnetic
    • Mounting Type: DIN Rail and Threaded Mounting
    • Actuator Type: Toggle
    • Wire Size Range: 14 to 2/0 AWG Copper, 14 to 3/0 AWG Aluminum
    • Enclosure Type: NEMA AB4/IP40
    • Operating Temperature Range: -13 to 158 °F
    • Certifications: UL, CSA, NOM, IEC, CE Marked
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: BGL16040
    • Manufacturer : Schneider Electric
    • Brand : Schneider Electric
    • Category : Circuit Breaker
    • Item Subcategory : Molded Case
    • Family : Powerpact
    • Type : BGL
    • Voltage : 600
    • Amperage : 40
    • Phase : 1
    • Poles : 1
    • AIC rating : 35kA@480V
    • Connection : Feed-Thru
    • Functions : LI - Long-Time and Instantaneous
    • Terminal Connection : Everlink Lug Both Ends
    • Frame Size : 125A/BG
    • Temp Rating : -13–158 °F (-25–70 °C)
    • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
    • Breaker Type : Standard
    • Protection : Thermal Magnetic
    • Phase Connection : Any

    Product Data

    • UPC : 785901072850
    • GTIN : 03606481193339
    • Country of Origin : Mexico
    • Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
    • Weight : 1
    • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
    • Standards : NMX J-266, EN/IEC 60947-5-1, UL 489, GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5, NEMA AB1
    • Certification : UL, IEC, CCC, EAC, CSA, NOM
    • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
      AWG 14...AWG 3/0 rigid or stranded aluminium/copper
