Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
BGL16020

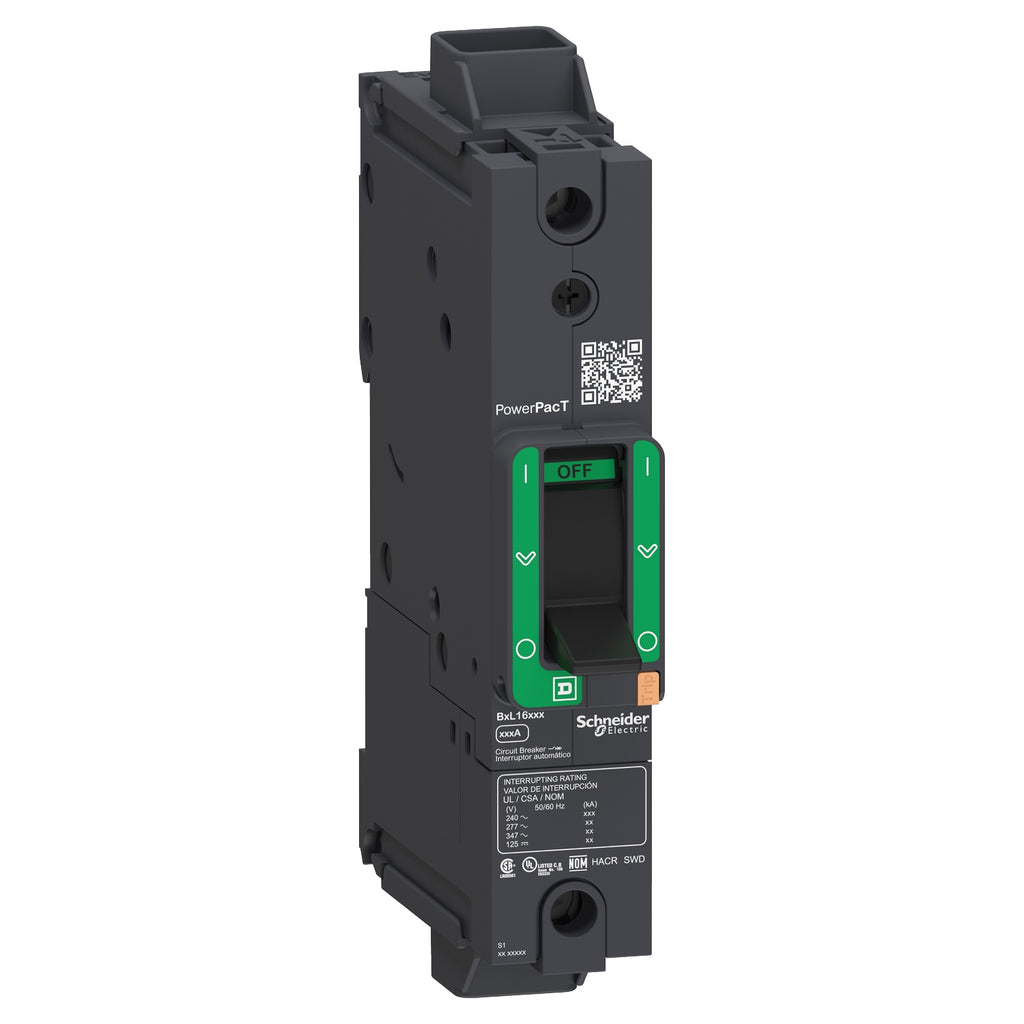

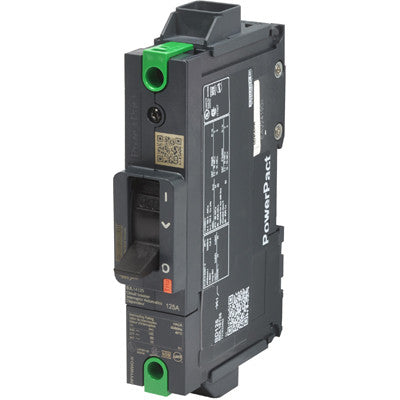

BGL16020 is a Schneider Electric PowerPact B circuit breaker designed for reliable circuit protection with a 20 amp rating and thermal magnetic trip unit.
This 1-pole breaker supports a voltage rating of 600Y/347VAC and features a thermal magnetic trip mechanism. It has an interrupt rating of 18kA at 600Y/347VAC and 65kA at 240VAC, suitable for demanding electrical applications. The breaker is rated for 80% thermal capacity and complies with IEC 60947-2 standards, ensuring high insulation and operational voltage performance up to 800 V. It uses lug connections and a toggle actuator for mounting and operation.
- Key Specifications
- Amperage: 20A
- Voltage Rating: 600Y/347VAC
- Poles: 1
- Interrupt Rating: 18kA @ 600Y/347VAC, 65kA @ 240VAC
- Trip Unit: Thermal Magnetic
- Mounting Type: Lug
- Series/Frame: PowerPact B
- Thermal Capacity: 80%
- Standards: IEC 60947-2
- Actuator Type: Toggle
- Part Number: BGL16020
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BGL
- Voltage : 600
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Everlink Lug Both Ends
- Frame Size : 125A/BG
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Any
- UPC : 606481193295
- Country of Origin : Mexico
- Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight : 1
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : NMX J-266, NEMA AB1, UL 489, EN/IEC 60947-5-1, CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
