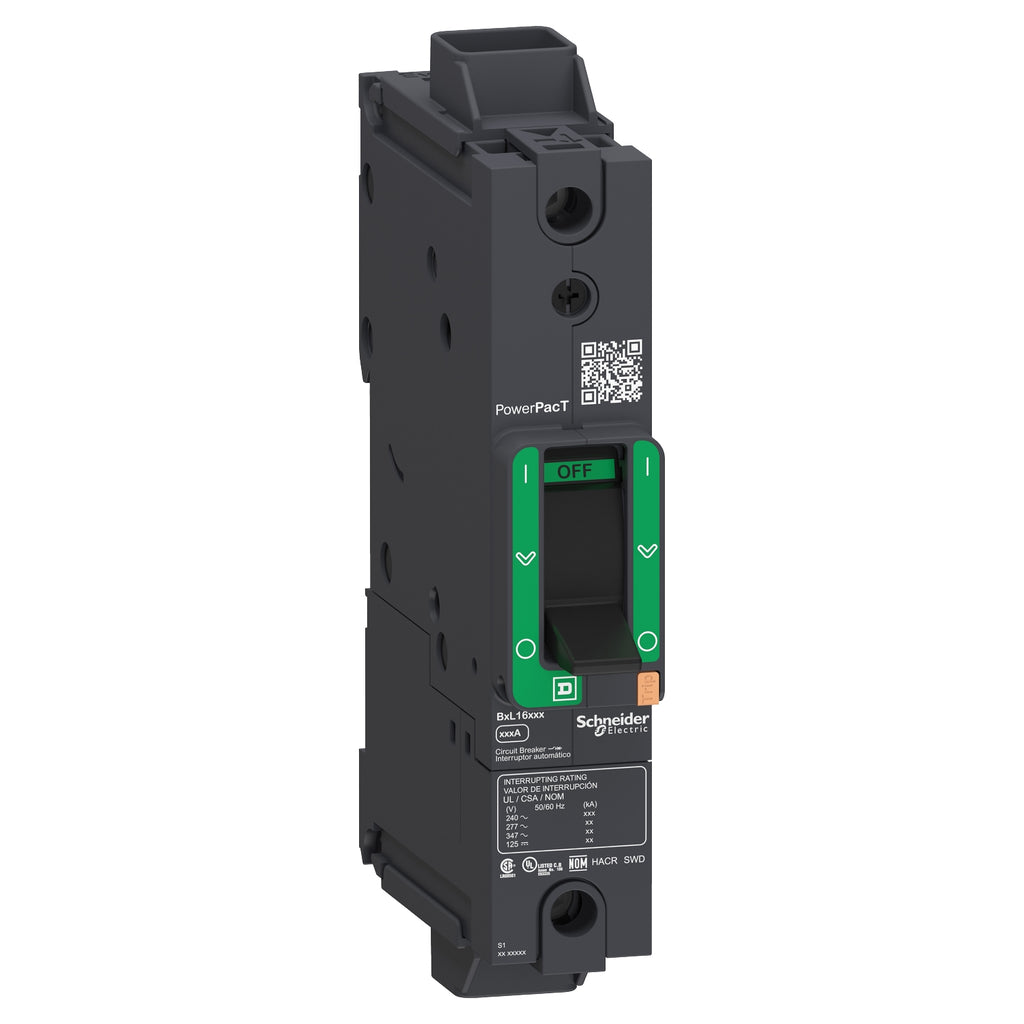

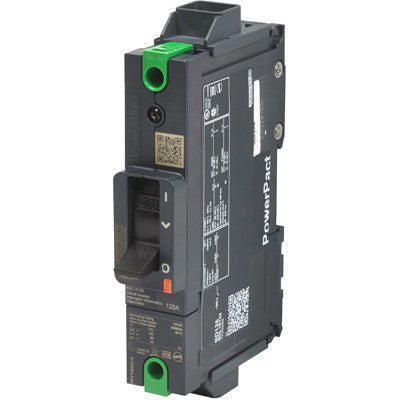

BGL16015 - Schneider Electric PowerPact B 15A 1-Pole 240VAC Thermal Magnetic Circuit Breaker

BGL16015

BGL16015 is a Schneider Electric PowerPact B series molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 1-pole breaker features a 15A current rating, 240VAC voltage rating, and thermal magnetic trip unit for precise overload and short-circuit protection. The breaker is equipped with EverLink lugs for secure connections and is suitable for use in a variety of panel configurations. Engineered for durability and safety, the BGL16015 offers an interrupt rating of 65kA at 240VAC, 35kA at 480VAC, and 18kA at 600VAC. It is UL 489 and IEC 60947-2 certified, ensuring compliance with international standards. The compact design and toggle actuator make installation and operation straightforward.

• Part Number: BGL16015
• Manufacturer: Schneider Electric
• Series/Frame: PowerPact B
• Amperage: 15A
• Voltage Rating: 240VAC
• Number of Poles: 1
• Interrupt Rating: 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC
• Mounting Type: Panel Mount
• Trip Unit: Thermal Magnetic
• Actuator Type: Toggle
• Certifications: UL 489, IEC 60947-2
• Connection Type: EverLink Lugs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGL16015
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGL
• Voltage : 600
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 35kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Any

Product Data

• UPC : 785901072850
• GTIN : 03606481154002
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1.39
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1, GB 14048.2, NMX J-266, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
