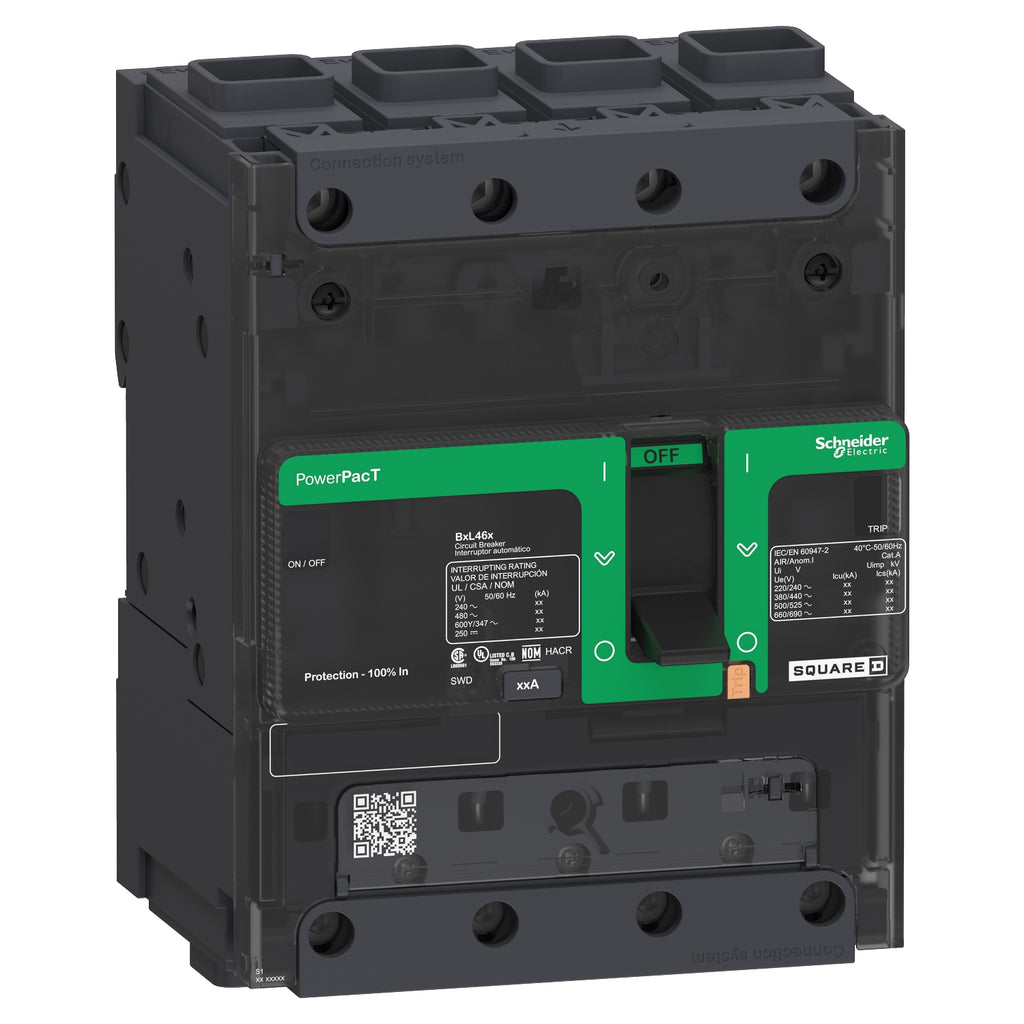

BGF46060 - Schneider Electric PowerPact B 60A 4 Pole 600Y/347VAC 18kA Thermal Magnetic Circuit Breaker

BGF46060

BGF46060 is a Schneider Electric PowerPact B circuit breaker rated for 60 amps, 4 poles, and 600Y/347 volts AC with an 18kA interrupt rating and thermal magnetic trip unit.This circuit breaker features a terminal nut connection, 80% rated thermal magnetic trip unit, and is designed for bolt-on mounting. It complies with IEC 60947-2 standards and offers reliable protection for power distribution applications with a compact design.

• Amperage: 60A
• Voltage Rating: 600Y/347VAC
• Number of Poles: 4
• Interrupt Rating: 18kA at 600Y/347VAC
• Trip Unit: Thermal Magnetic, 80% rated
• Mounting Type: Bolt-On
• Terminal Type: Terminal Nut
• Series/Frame: PowerPact B
• Standards: IEC 60947-2, CE Certified
• Color: Grey (RAL 7016)
• Dimensions: Approx. 5.39" H x 4.25" W x 3.15" D
• Weight: 2.74 lbs (1.24 kg)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGF46060
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGF
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 4
• AIC rating : 35kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 60648115048
• GTIN : 03606481150486
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 4.3 in (108 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 3.999
• Standards : EN/IEC 60947-2, NEMA AB1, NMX J-266, GB 14048.2, EN/IEC 60947-5-1, CSA C22.2 No 5, UL 489
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 8 aluminium/copper
  AWG 6...AWG 3/0 aluminium/copper
