Description
BGA36125

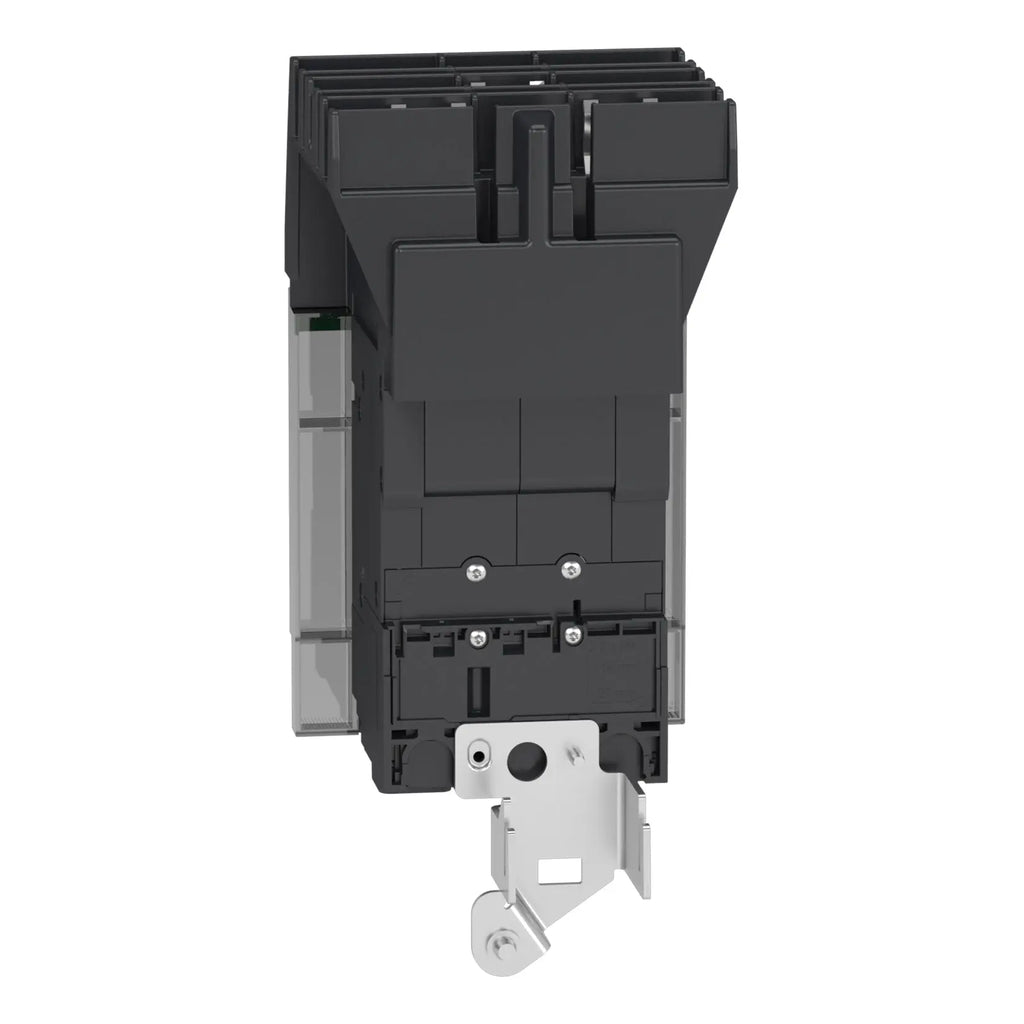

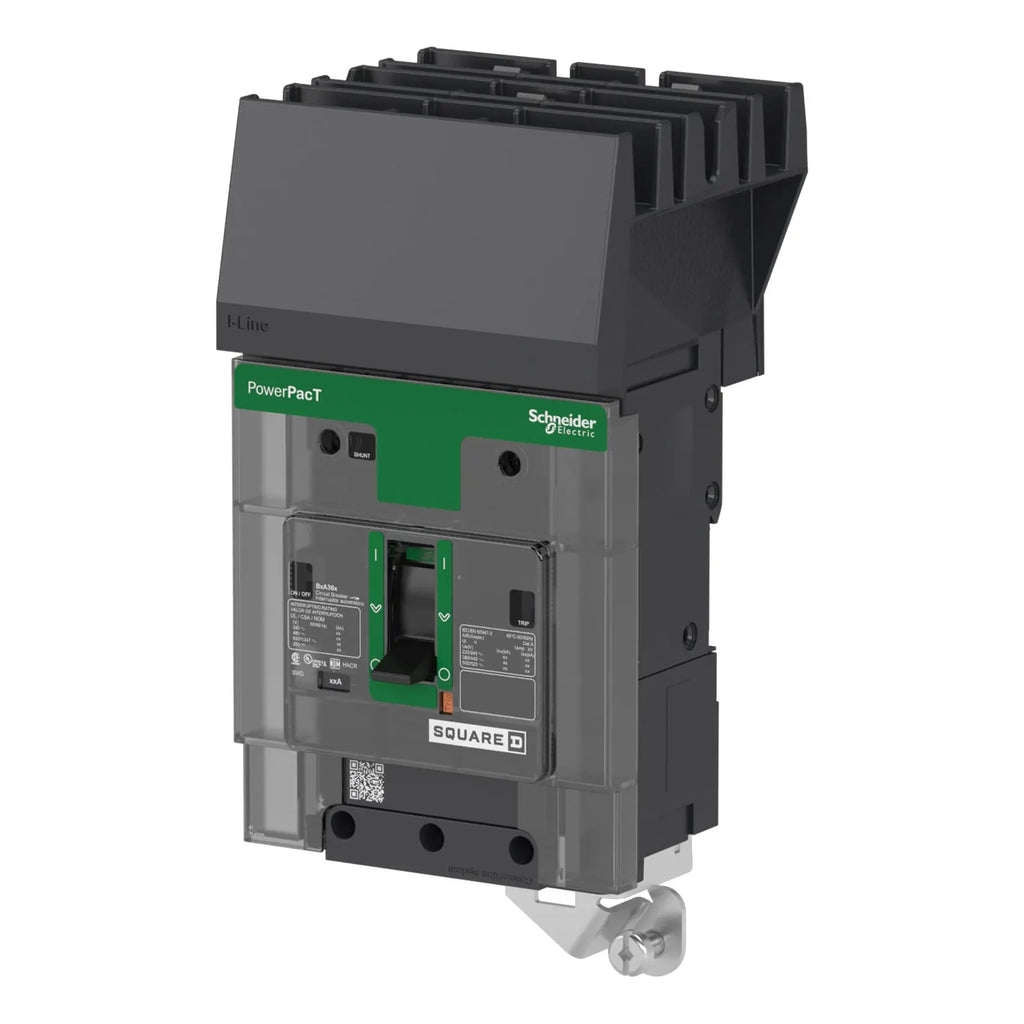

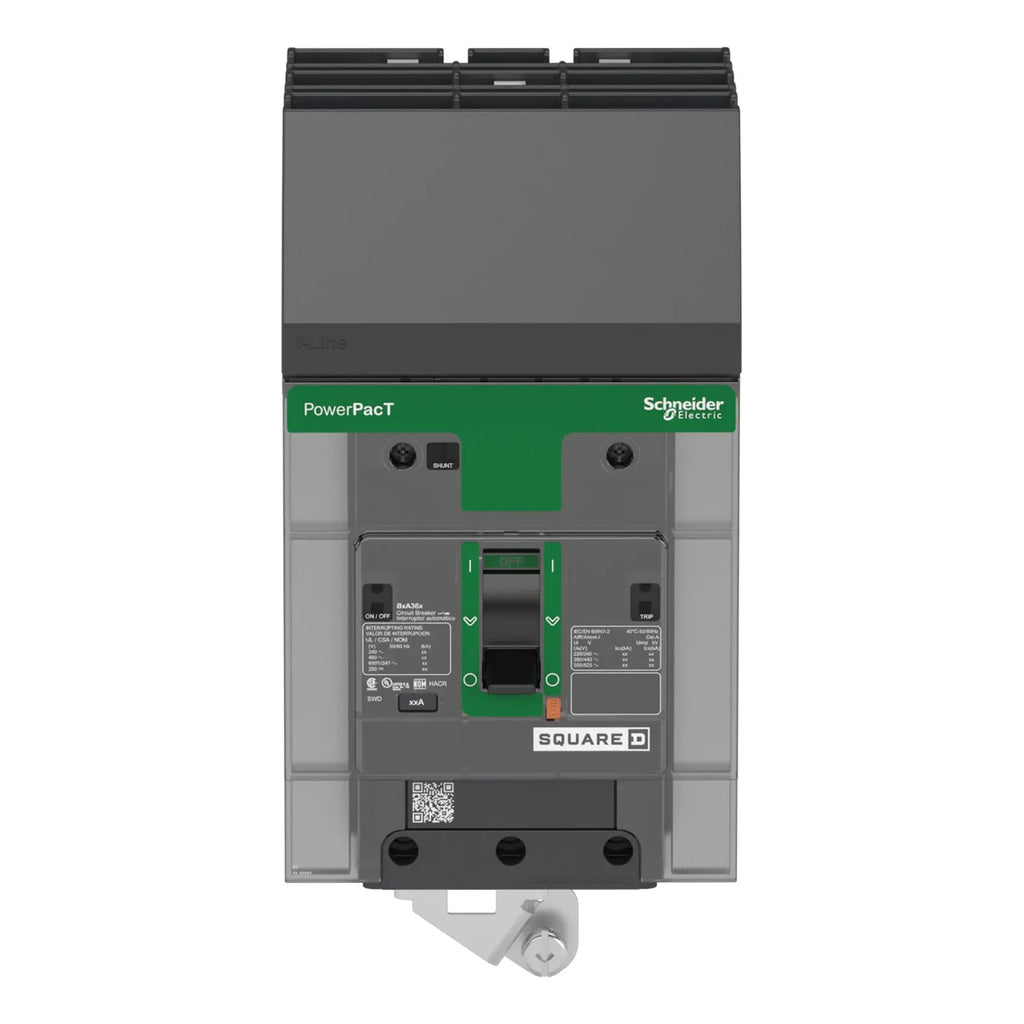

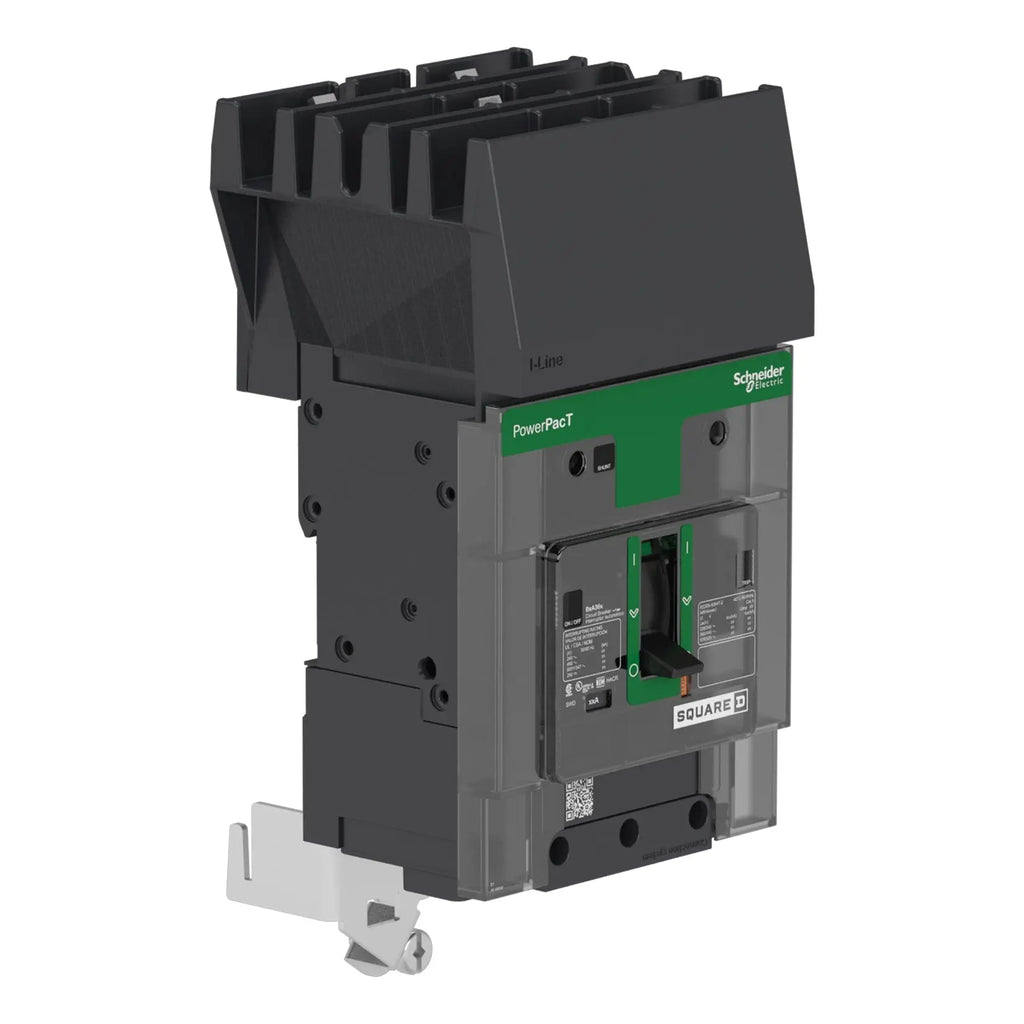

BGA36125 is a Square D 3 pole thermal magnetic circuit breaker rated for 125 amps and 600 volts AC with I-Line plug-in mounting.
This molded case circuit breaker features a B frame with a 35kA interrupting rating at 480V and 18kA at 600Y/347VAC. It uses an I-Line style plug-in connection for easy installation and includes long-time and instantaneous trip functions. Certified to UL, IEC, CSA, NOM, CCC, and EAC standards, it is designed for reliable protection in commercial and industrial power distribution systems.
- Key Specifications
- Amperage: 125A
- Voltage Rating: 600VAC (600Y/347VAC)
- Poles: 3
- Mounting Type: I-Line plug-in
- Interrupting Rating: 35kA @ 480V, 18kA @ 600Y/347VAC
- Frame Type: B Frame
- Trip Unit: Thermal Magnetic with long-time and instantaneous functions
- Connection Type: I-Line style plug-in
- Certifications: UL, IEC, CSA, NOM, CCC, EAC

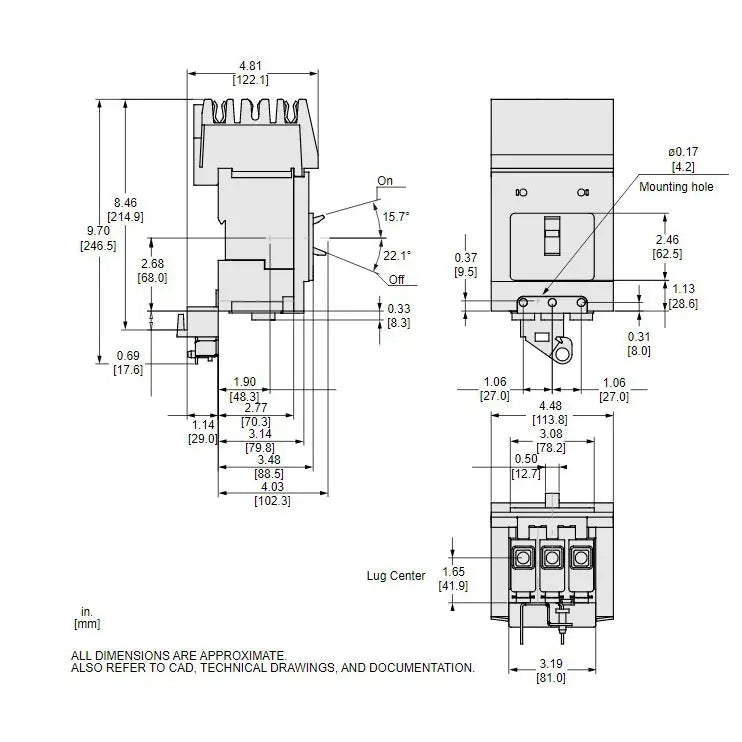

- Dimensions: 5.39" H x 3.19" W x 3.5" D
- Part Number: BGA36125
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BGA
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
- Frame Size : 125A/BG
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
- UPC : 785901031314
- GTIN : 03606481153982
- Country of Origin : Mexico
- Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
- Weight : 4.25
- Panel Type : Electrical Distribution Equipment, Industrial Control Panels
- Standards : NEMA AB1, EN/IEC 60947-5-1, CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, UL 489, NMX J-266
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 14...AWG 2/0 aluminium/copper
