BGA36100 - Square D PowerPact B 100A 3 Pole 600Y/347VAC 35kAIC I-Line Molded Case Circuit Breaker, Thermal Magnetic Trip, CE/UL/CSA Certified

BGA36100

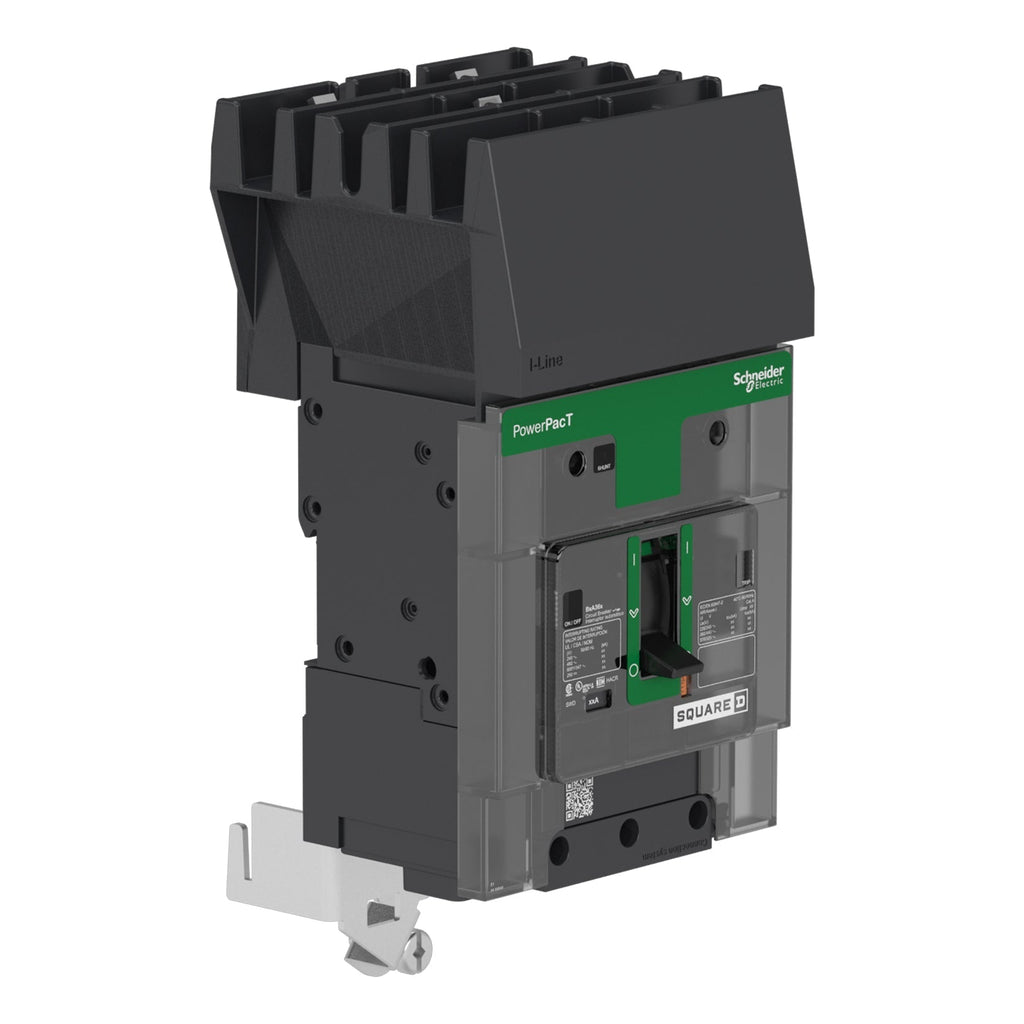

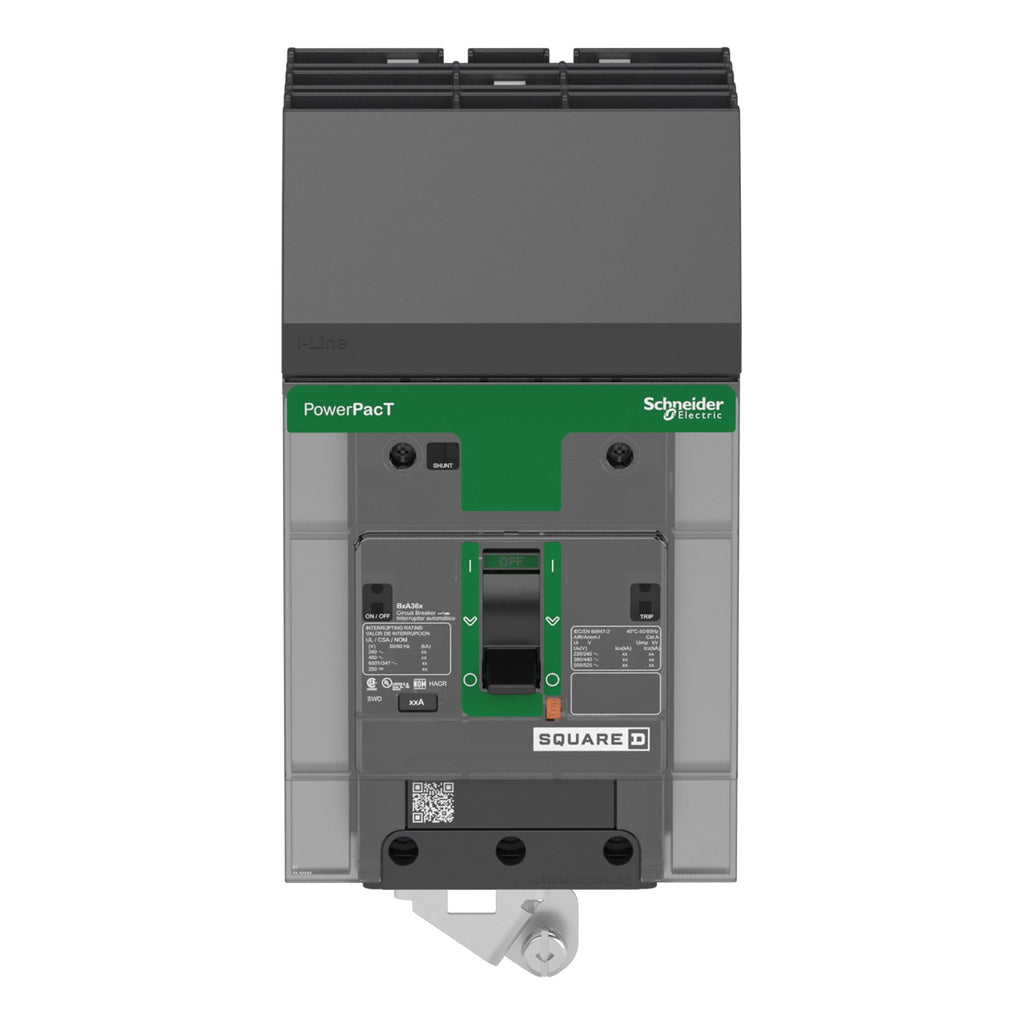

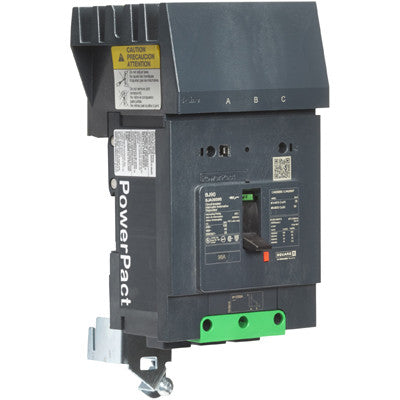

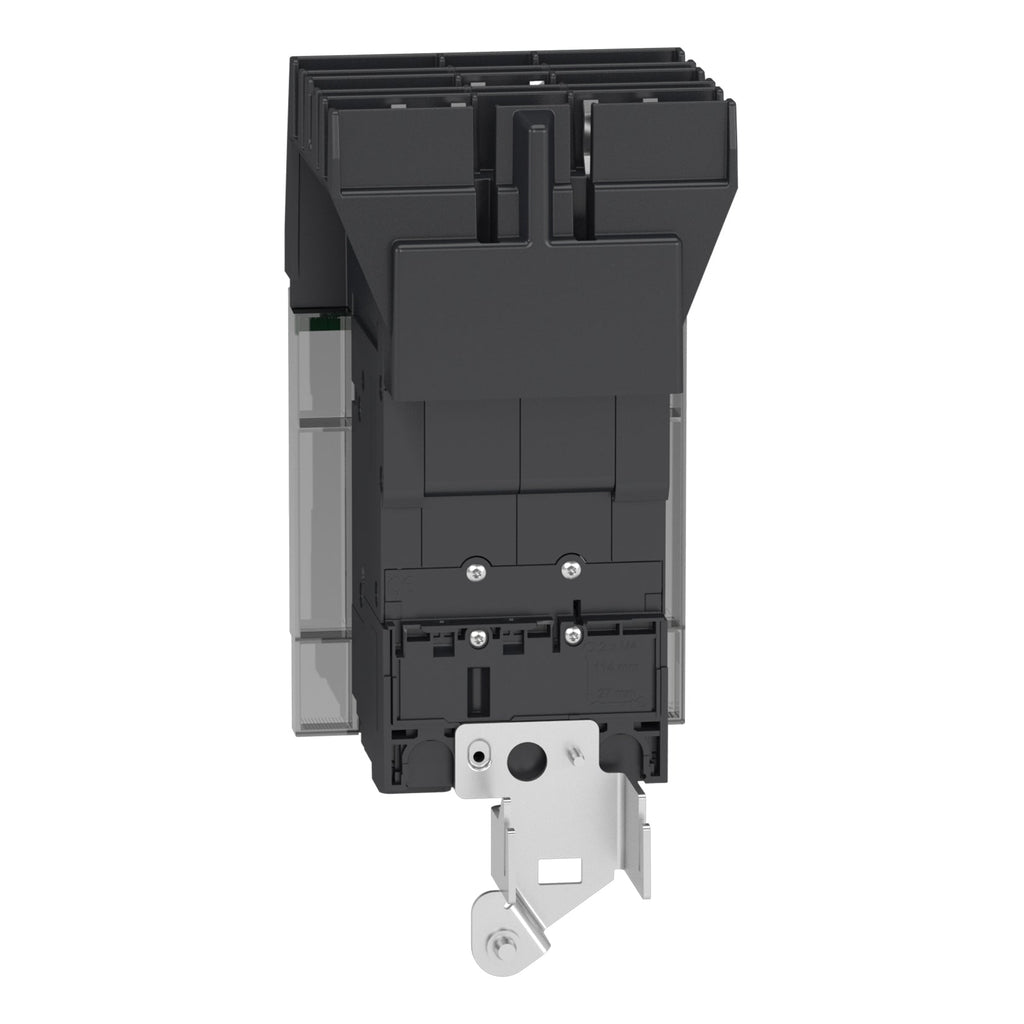

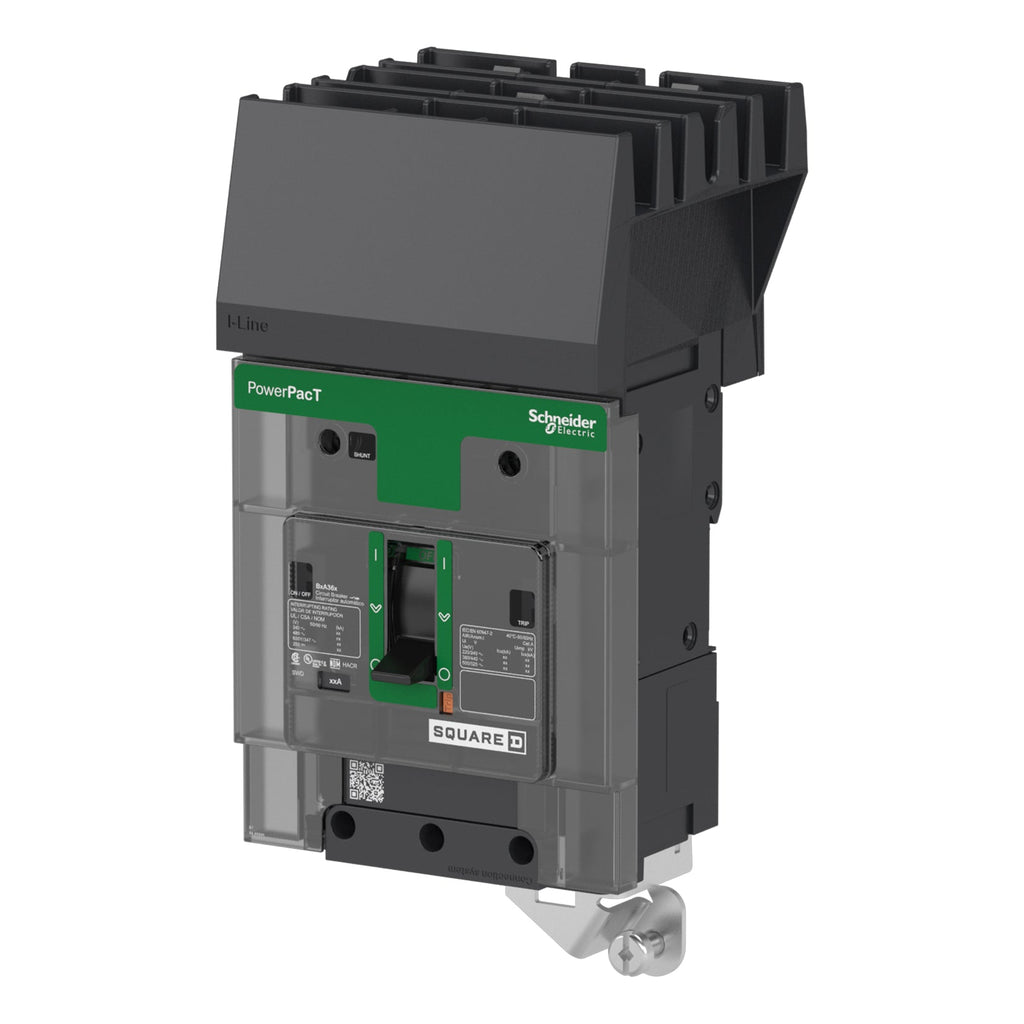

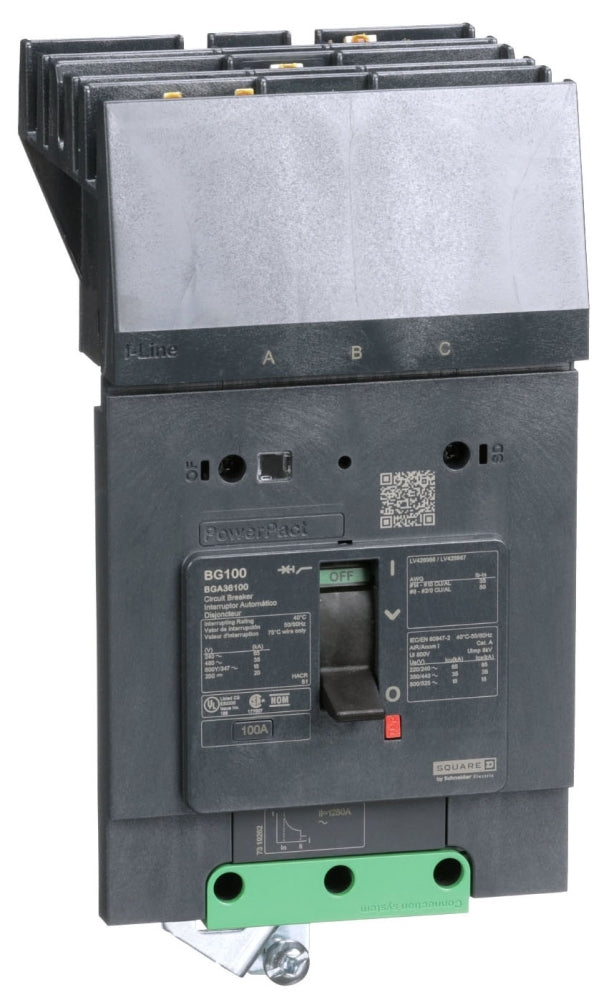

BGA36100 is a Square D PowerPact B series, 3-pole, 100A molded case circuit breaker designed for I-Line panelboard and switchboard applications.

This thermal magnetic circuit breaker offers reliable protection with a voltage rating of 600Y/347VAC, an interrupting rating of 35kAIC at 480VAC, and is certified to UL, CSA, CE, and other international standards. It features a toggle actuator, accepts wire sizes from AWG 14 to 2/0, and operates in temperatures from -25 to 70°C.

Key Specifications
• Amperage: 100A
• Voltage: 600Y/347VAC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 35kAIC at 480VAC, 18kA at 600Y/347VAC
• Series/Frame: PowerPact B, BGA Frame
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Certifications: UL, CSA, CE, NEMA, NOM, IEC, EN, GB, NMX, CCC, EAC
• Connection: I-Line style plug-in
• Wire Range: AWG 14 to 2/0 (Aluminum/Copper)
• Temperature Range: -25 to 70°C
• Actuator: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA36100
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901021865
• GTIN : 03606481153937
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.17
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-5-1, GB 14048.2, CSA C22.2 No 5, UL 489, NEMA AB1, EN/IEC 60947-2, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
