BGA36090 - Square D 90A 600Y/347VAC 3 Pole Thermal Magnetic I-Line Circuit Breaker

BGA36090

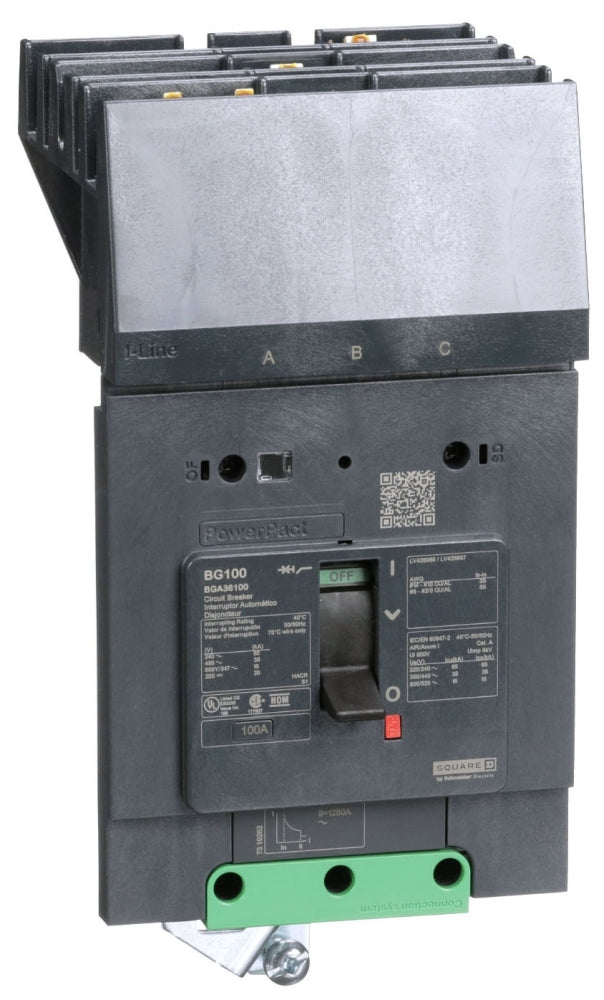

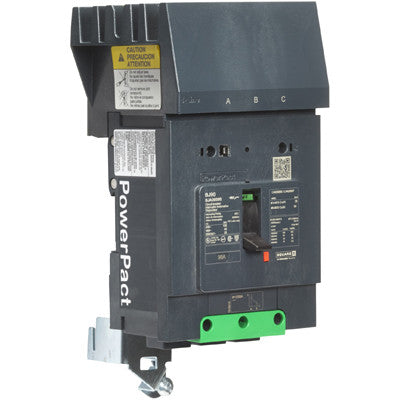

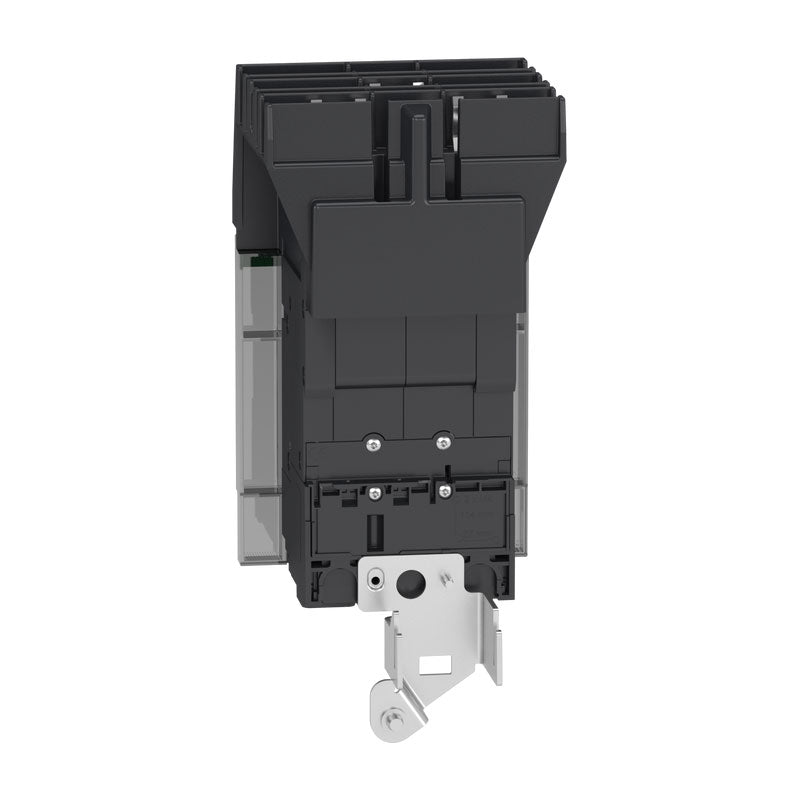

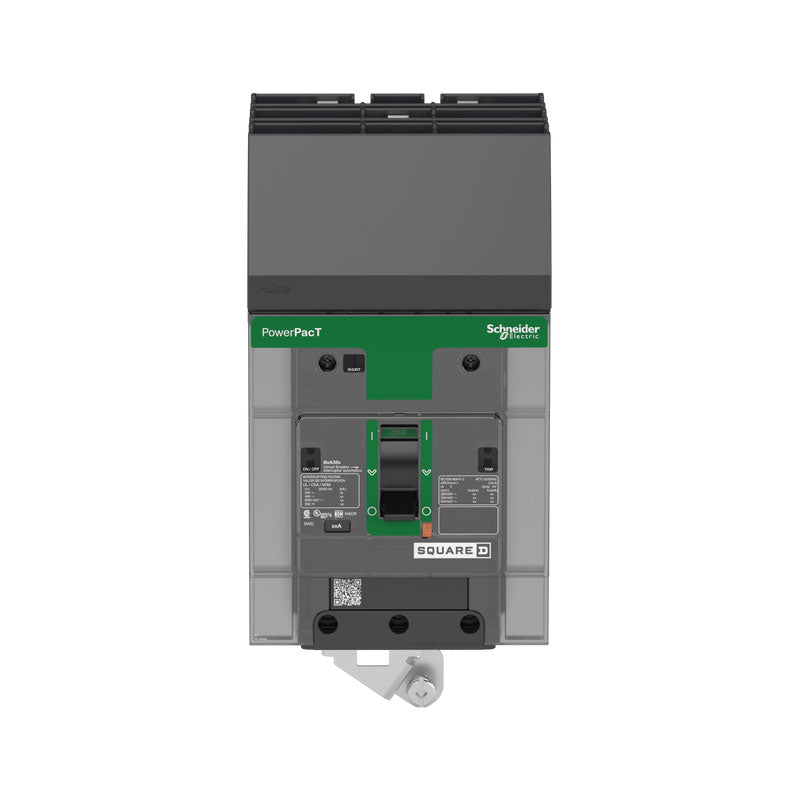

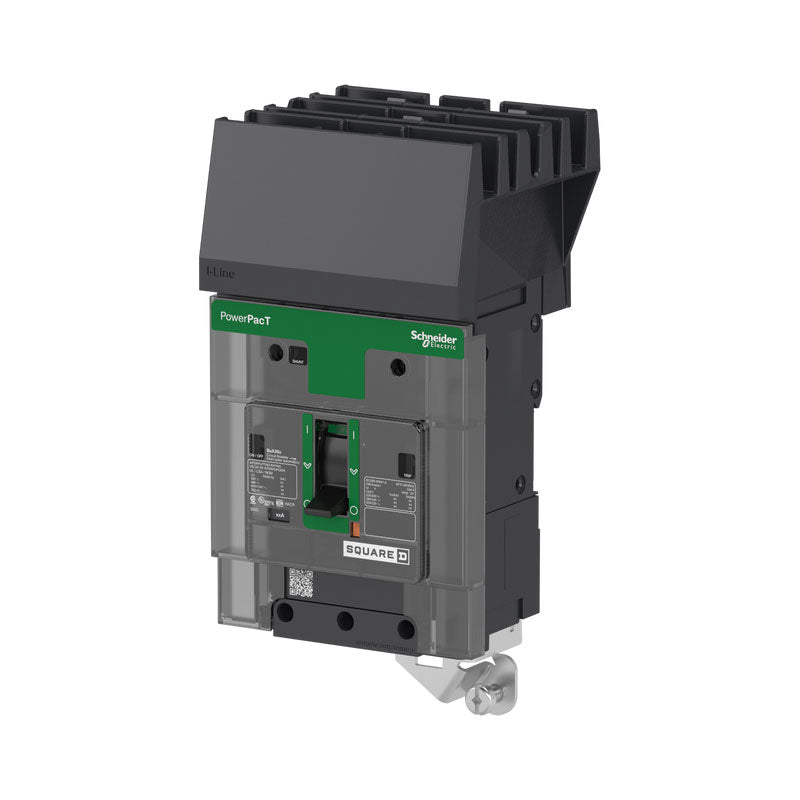

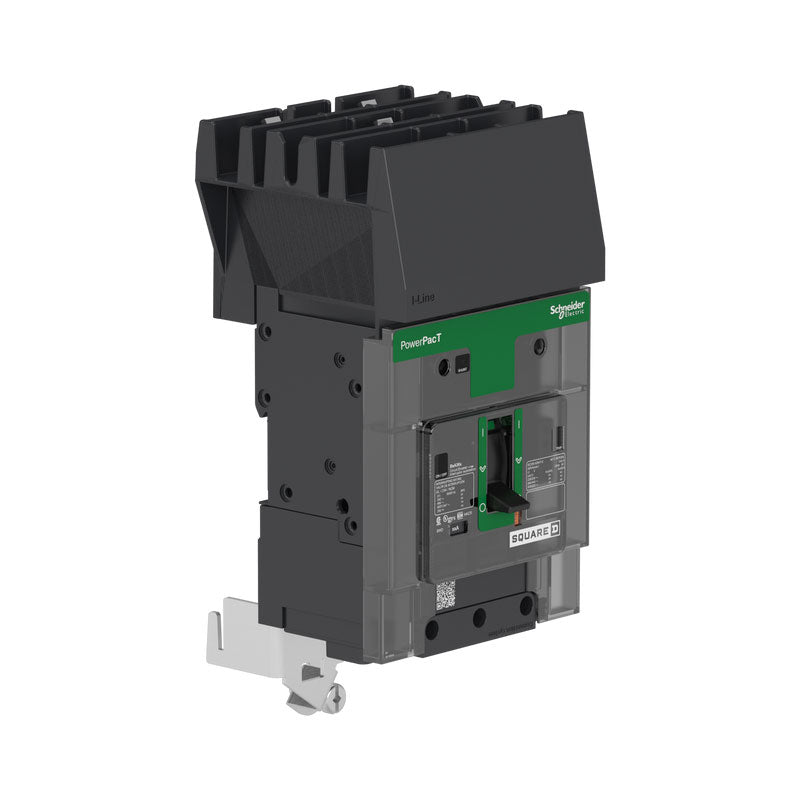

BGA36090 is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 90 amps and 600Y/347VAC voltage with I-Line mounting.BGA36090 features a 35kA interrupting rating at 480V, long time and instantaneous trip functions, and a plug-in I-Line style connection. It is UL, CSA, IEC, NOM, CCC certified, and CE marked, designed for reliable protection in panelboards and switchboards.

Key Specifications
• Amperage: 90A
• Voltage: 600Y/347VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupt Rating: 35kA at 480V
• Frame Type: B-Frame
• Trip Unit: Thermal Magnetic with long time and instantaneous functions
• Certifications: UL, CSA, IEC, NOM, CCC, CE
• Connection Type: I-Line style plug-in
• Terminal Connection: Load side mechanical lug
• Max Wire Size: 2/0 AWG

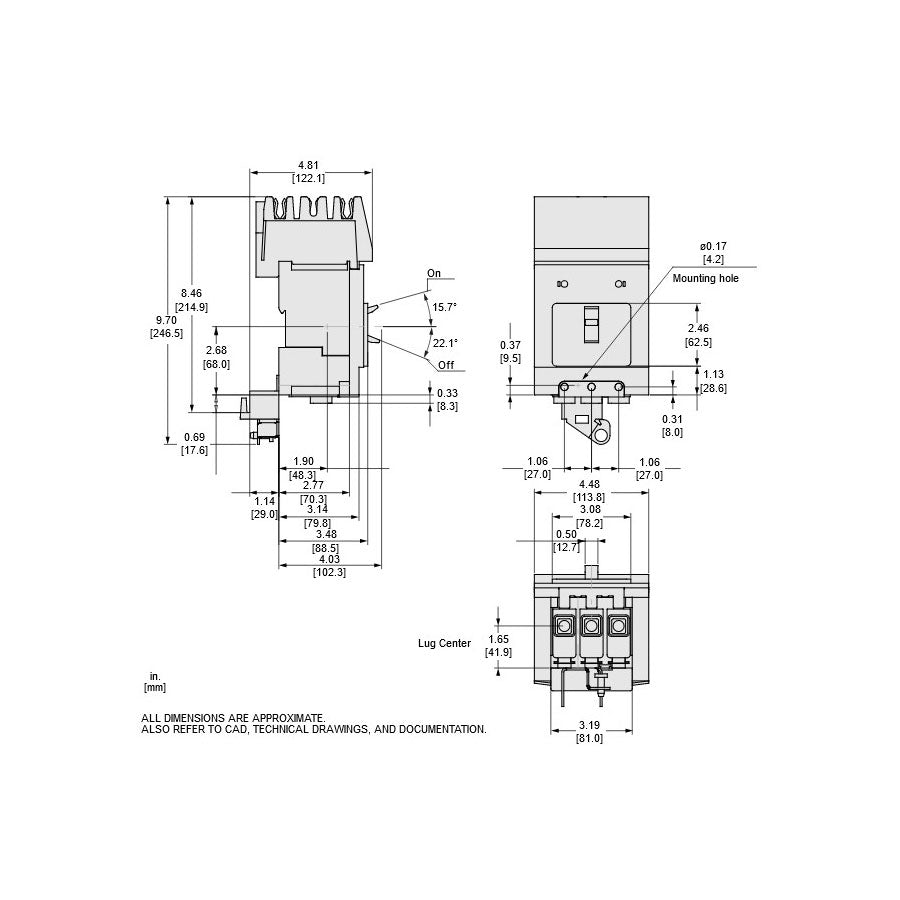

• Dimensions (HxWxD): 5.39 x 3.19 x 3.5 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA36090
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 90
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901000105
• GTIN : 03606481153913
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.1
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-2, UL 489, EN/IEC 60947-5-1, NEMA AB1, GB 14048.2, CSA C22.2 No 5, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
