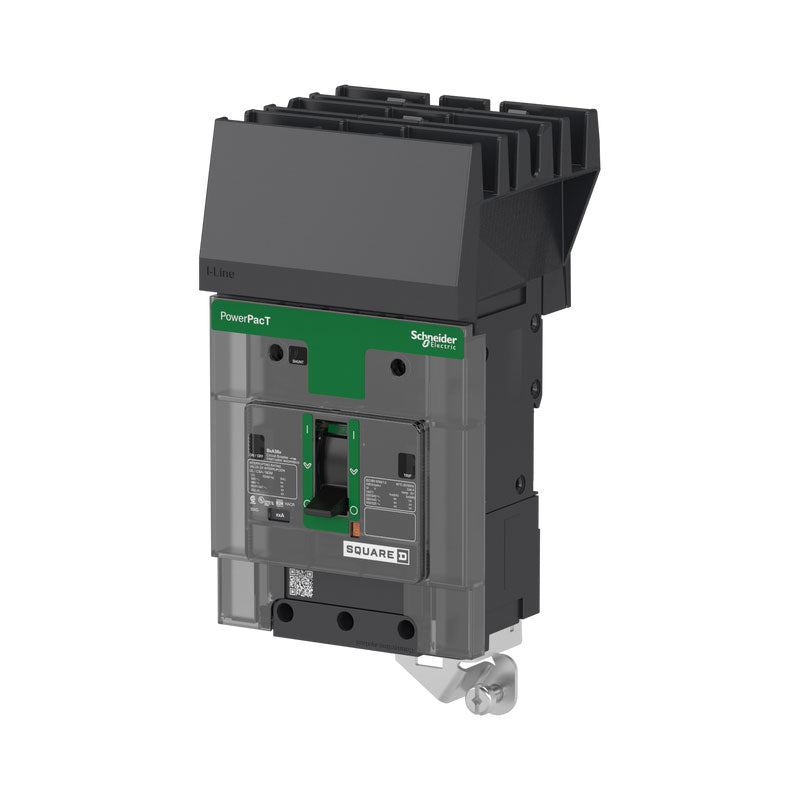

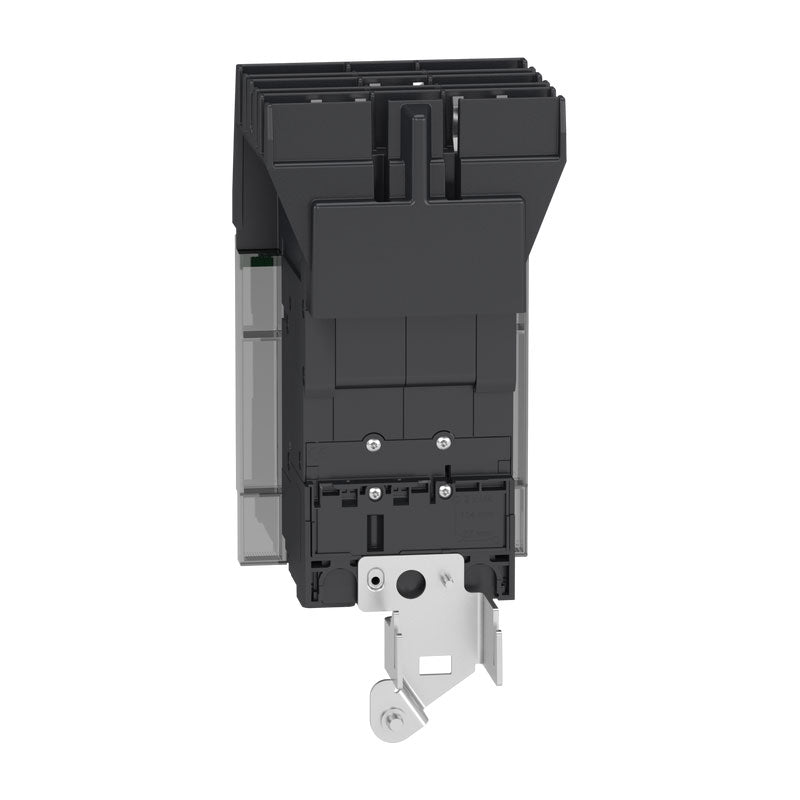

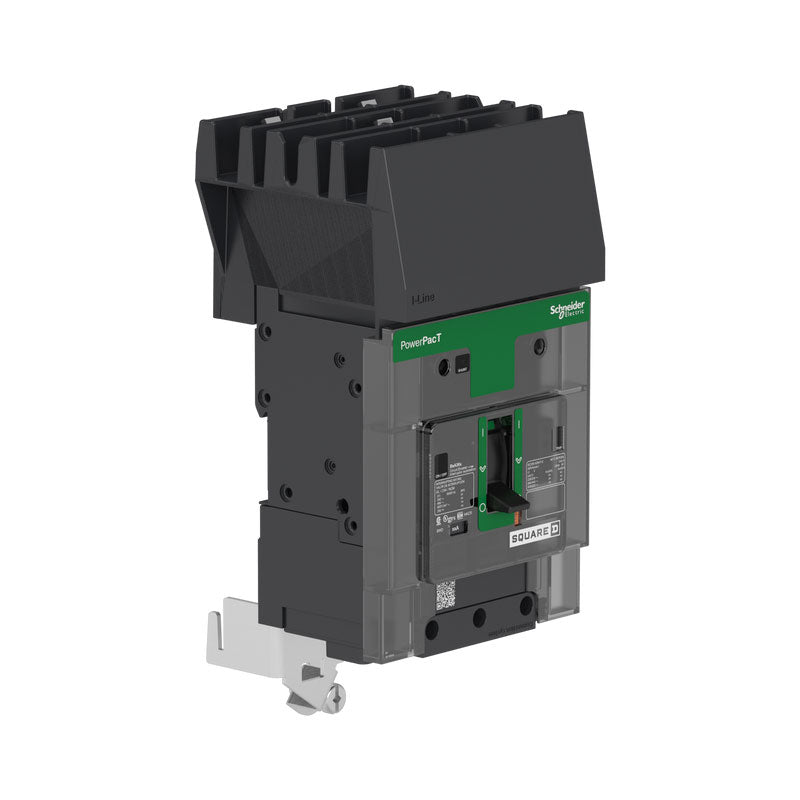

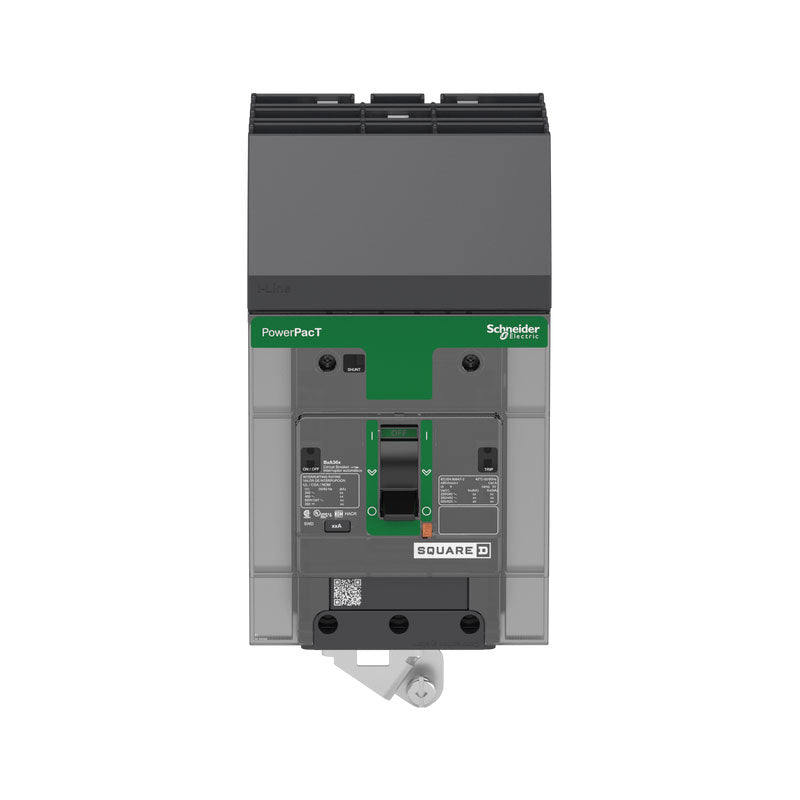

BGA36080 - Square D 80A 600Y/347VAC 3-Pole PowerPact B Molded Case Circuit Breaker

BGA36080

BGA36080 is a Square D 3-pole molded case circuit breaker rated for 80 amps and 600Y/347VAC voltage, designed for reliable thermal magnetic protection.This PowerPact B series breaker features a bolt-on I-Line mounting style, an interrupt rating of 18kA at 600Y/347VAC and 35kA at 480VAC, and is UL, CSA, and CE certified. It provides robust circuit protection in panelboards and switchboards with a thermal magnetic trip unit.

• Amperage: 80 Amps
• Voltage Rating: 600Y/347VAC
• Poles: 3
• Mounting Type: I-Line bolt-on
• Interrupt Rating: 18kA at 600Y/347VAC, 35kA at 480VAC
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, CE
• Connection Type: Bolt-on
• Phase: 3 Phase
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA36080
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901016557
• GTIN : 03606481153876
• Country of Origin : Mexico

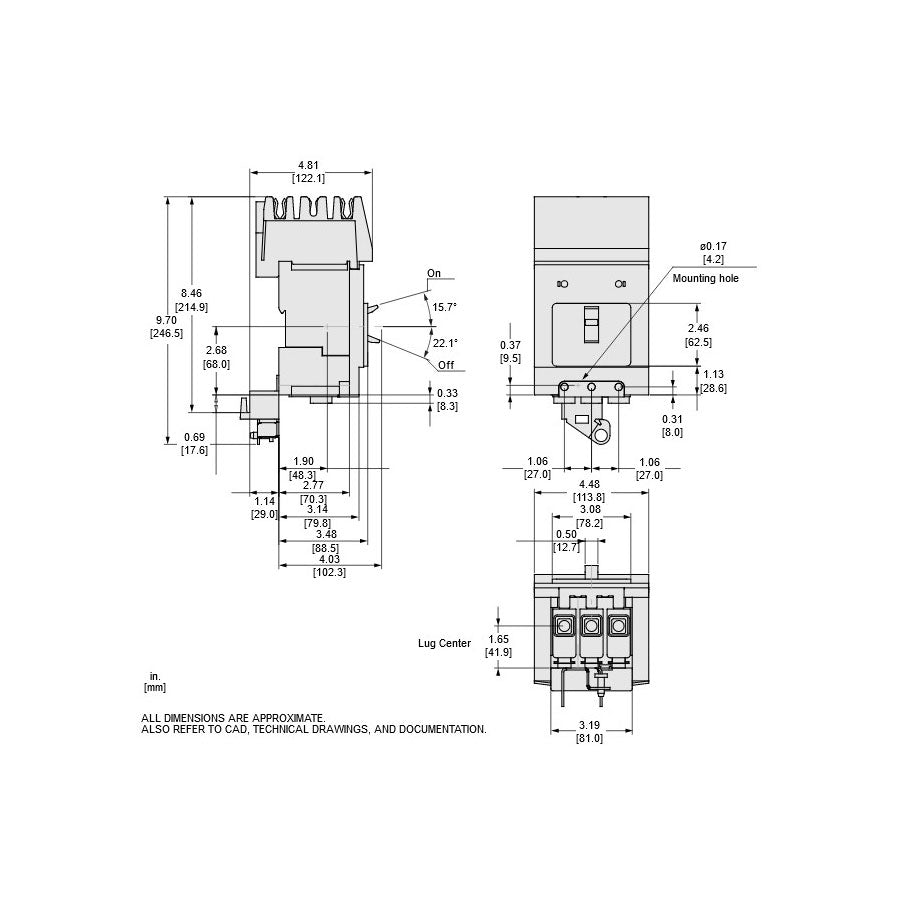

• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.12
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, EN/IEC 60947-2, NMX J-266, CSA C22.2 No 5, EN/IEC 60947-5-1, UL 489, GB 14048.2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
