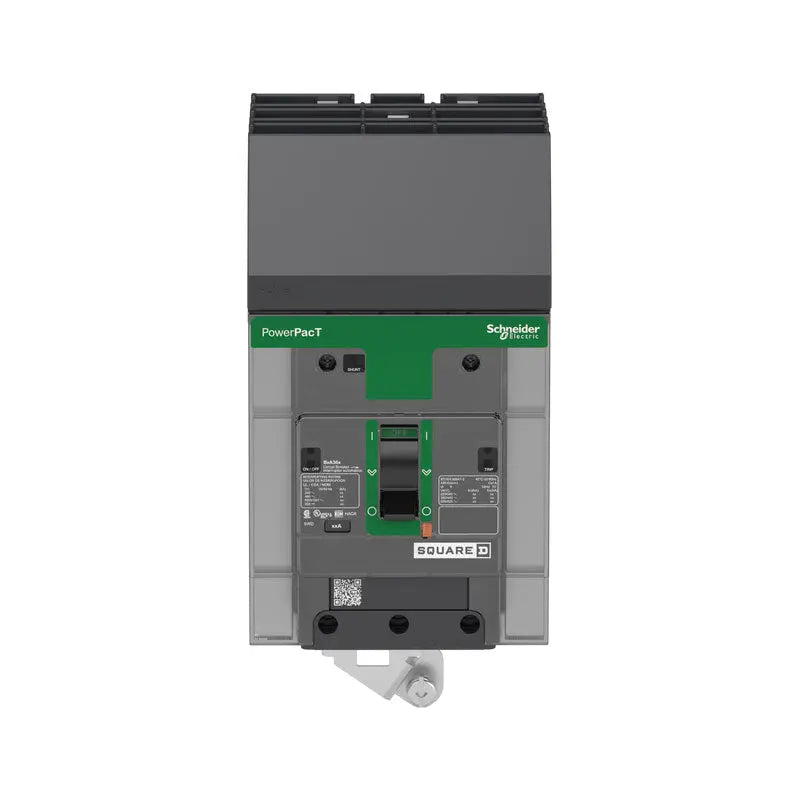

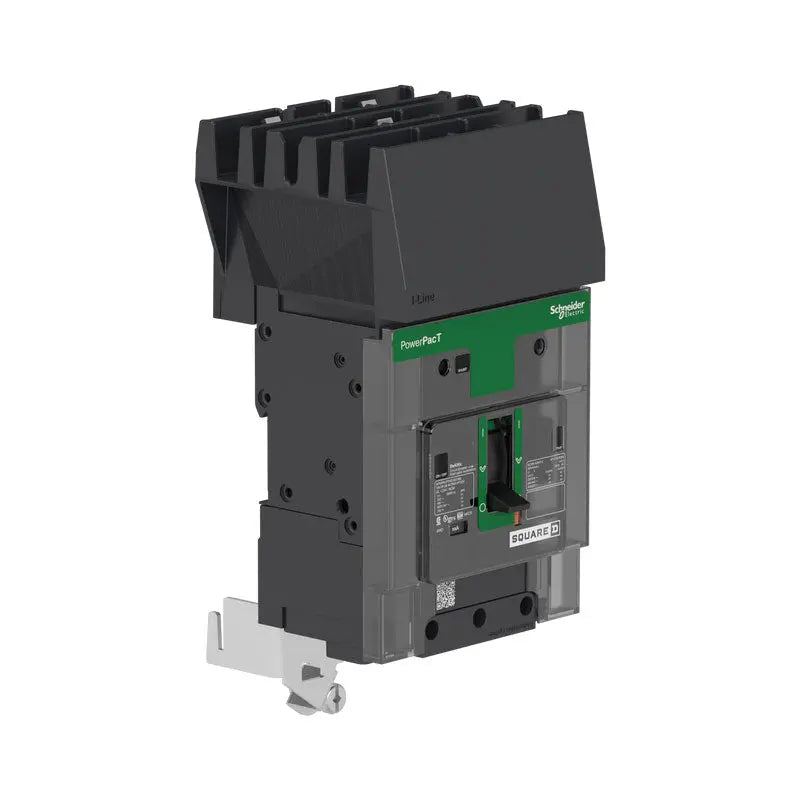

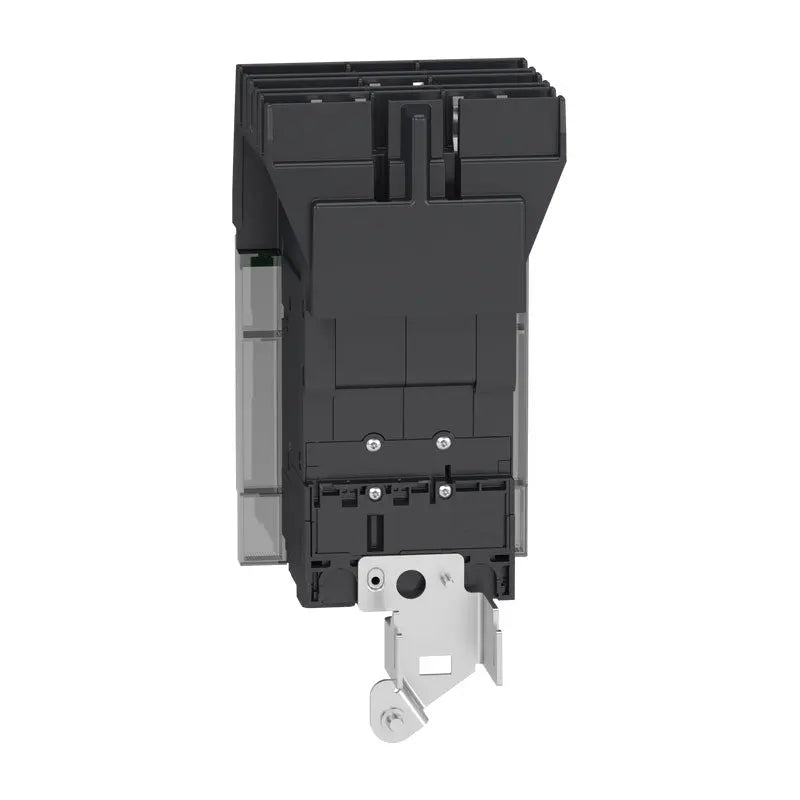

BGA36070 - Square D 70A 3 Pole 600Y/347VAC Thermal Magnetic Circuit Breaker I-Line PowerPact B

BGA36070

This circuit breaker features a voltage rating of 600Y/347VAC and an interrupt rating of 18kA at 600Y/347VAC. It provides reliable protection with an 80% continuous current rating and ABC phase connection. Certified to UL, CSA, NOM, IEC, CCC standards and CE marked, it supports a wide range of industrial and commercial applications.

Key Specifications
• Amperage: 70 Amps
• Voltage Rating: 600Y/347VAC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 18kA
• Frame/Series: PowerPact B
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Phase Connection: ABC
• Certifications: UL, CSA, NOM, IEC, CCC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: BGA36070
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 70
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC



Product Data

• UPC : 785901012856
• GTIN : 03606481153852
• Country of Origin : Mexico

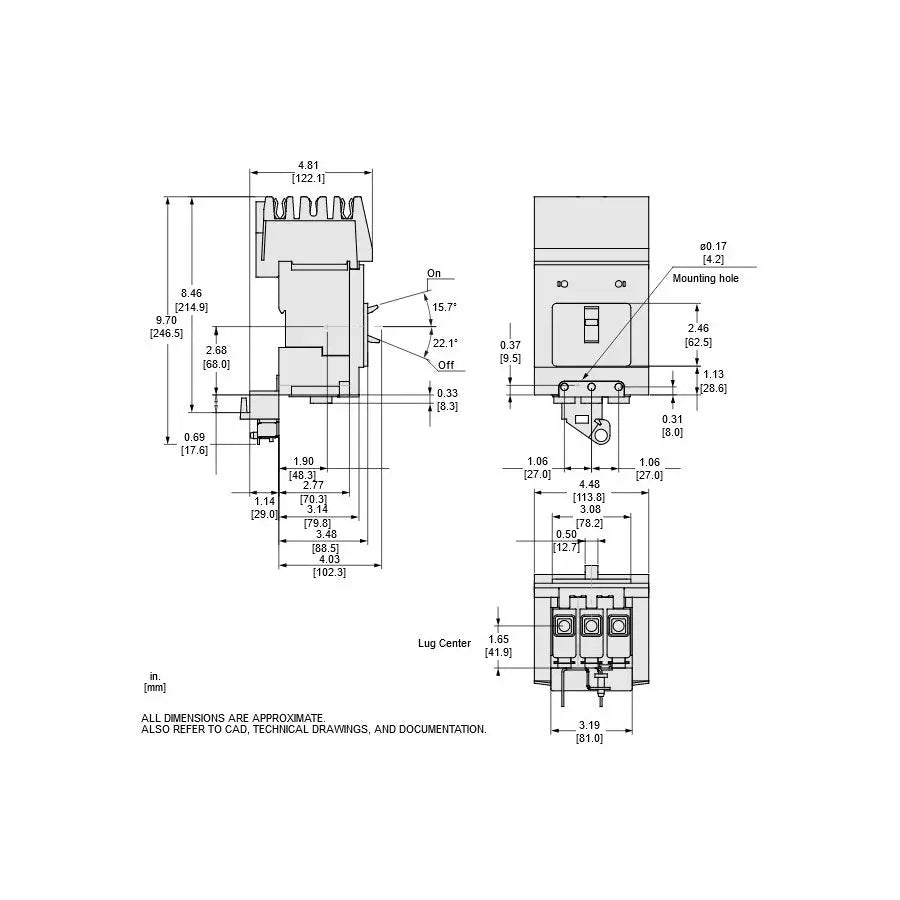

• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 3.81
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : GB 14048.2, CSA C22.2 No 5, UL 489, EN/IEC 60947-2, NEMA AB1, EN/IEC 60947-5-1, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
