BGA36060 - Square D 60A 600VAC 3-Pole Thermal Magnetic Molded Case Circuit Breaker I-Line B-Frame

BGA36060

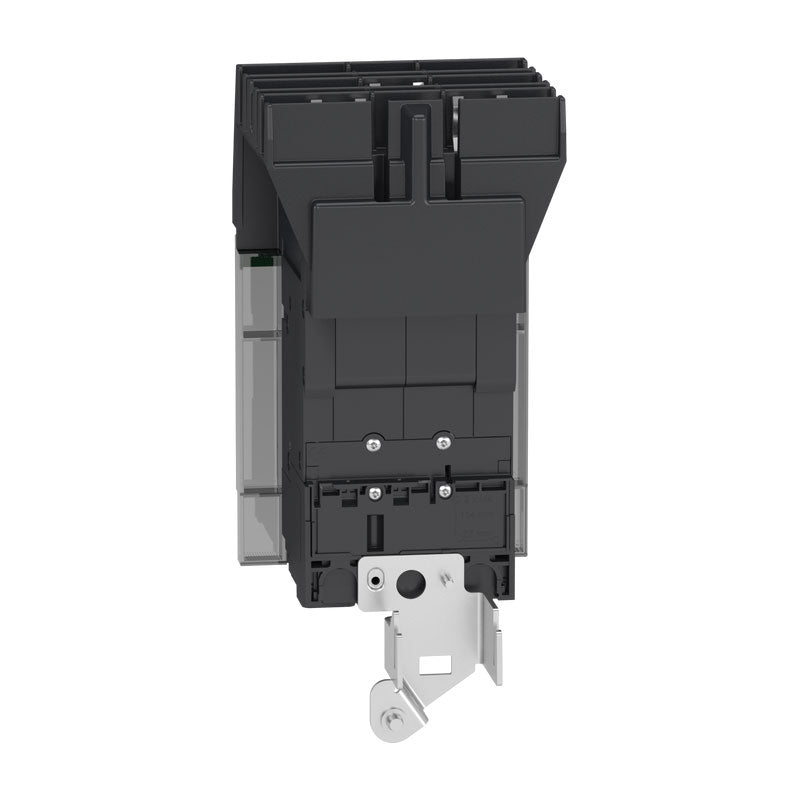

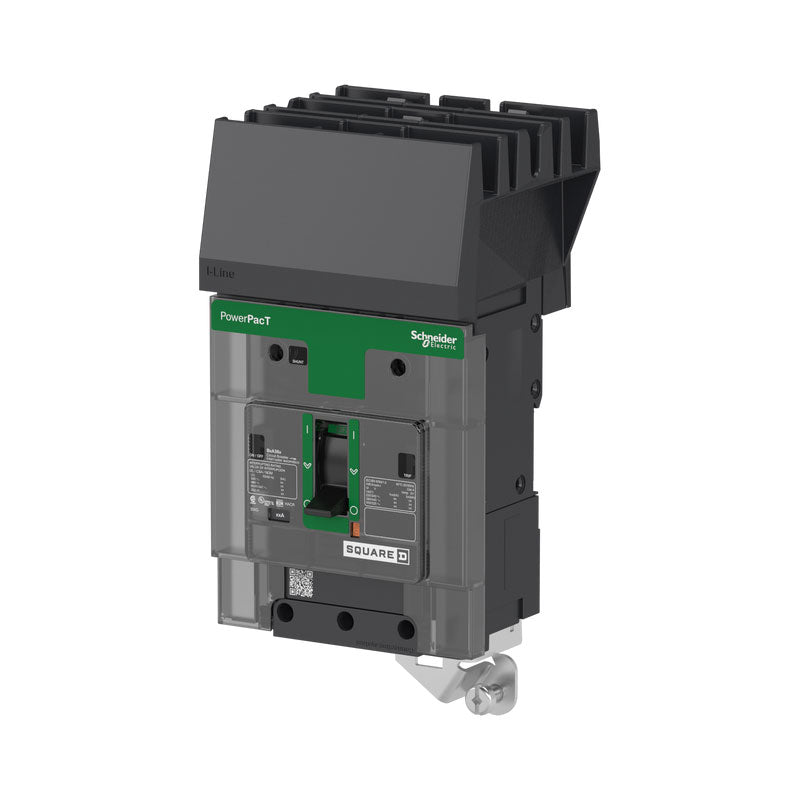

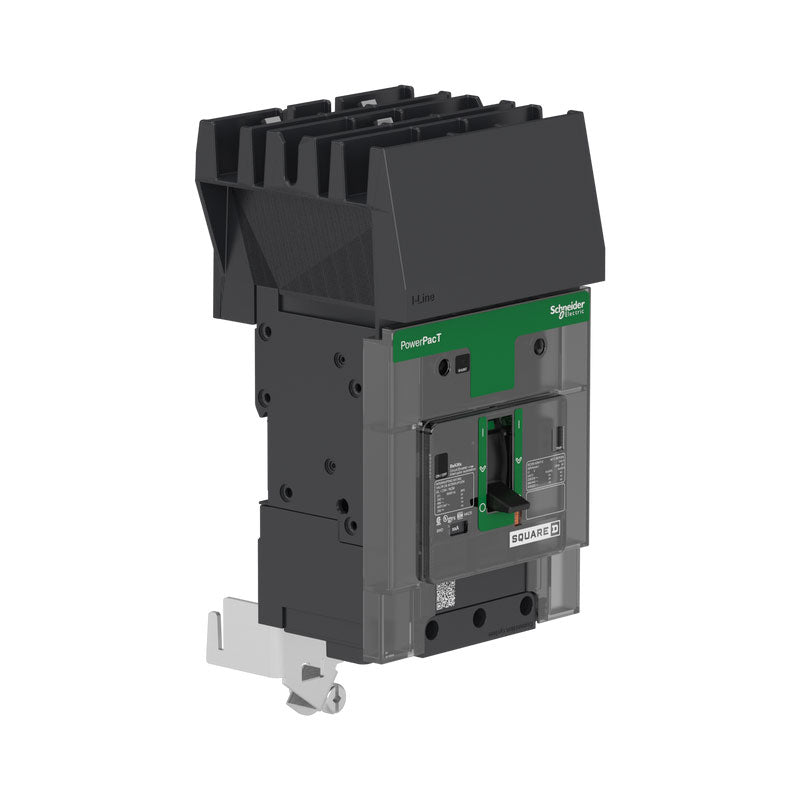

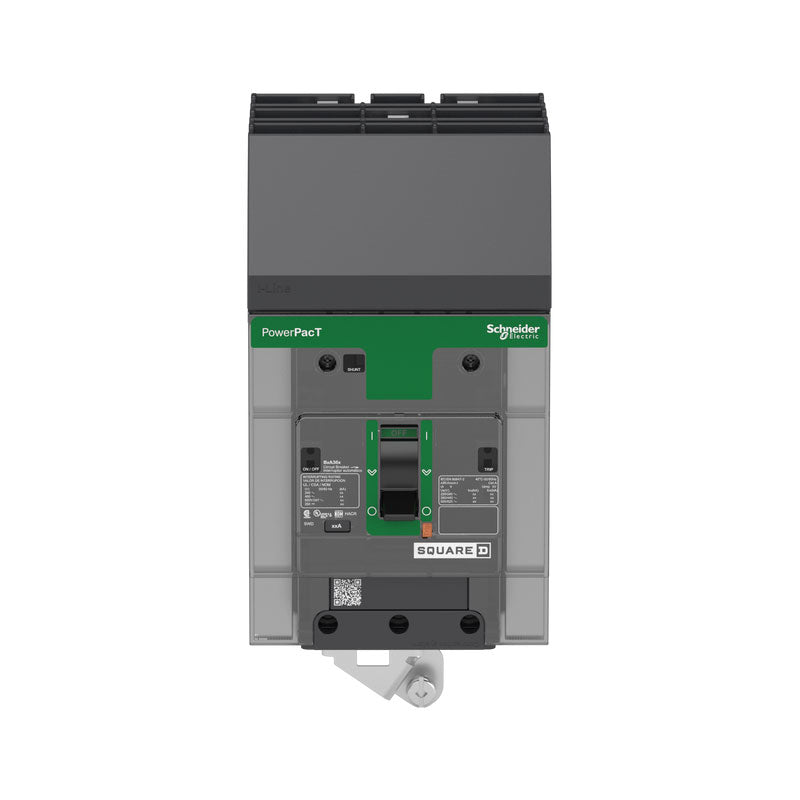

BGA36060 is a Square D 3-pole thermal magnetic molded case circuit breaker rated for 60 amps and 600 VAC with I-Line mounting and B-frame design.

This circuit breaker features a 35kA interrupting rating at 480V, plug-in terminal connections, and long-time and instantaneous trip functions. It complies with UL 489, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2, and other international standards. The breaker supports wire sizes from 14 AWG to 2/0 AWG and measures 3.19 inches wide by 3.5 inches deep by 5.39 inches high.

Key Specifications
• Amperage: 60A
• Voltage Rating: 600 VAC
• Poles: 3
• Mounting Type: I-Line
• Interrupting Rating: 35kA @ 480V
• Frame Type: B-Frame
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
• Terminal Connection: Plug-In
• Wire Size Range: 14 AWG to 2/0 AWG

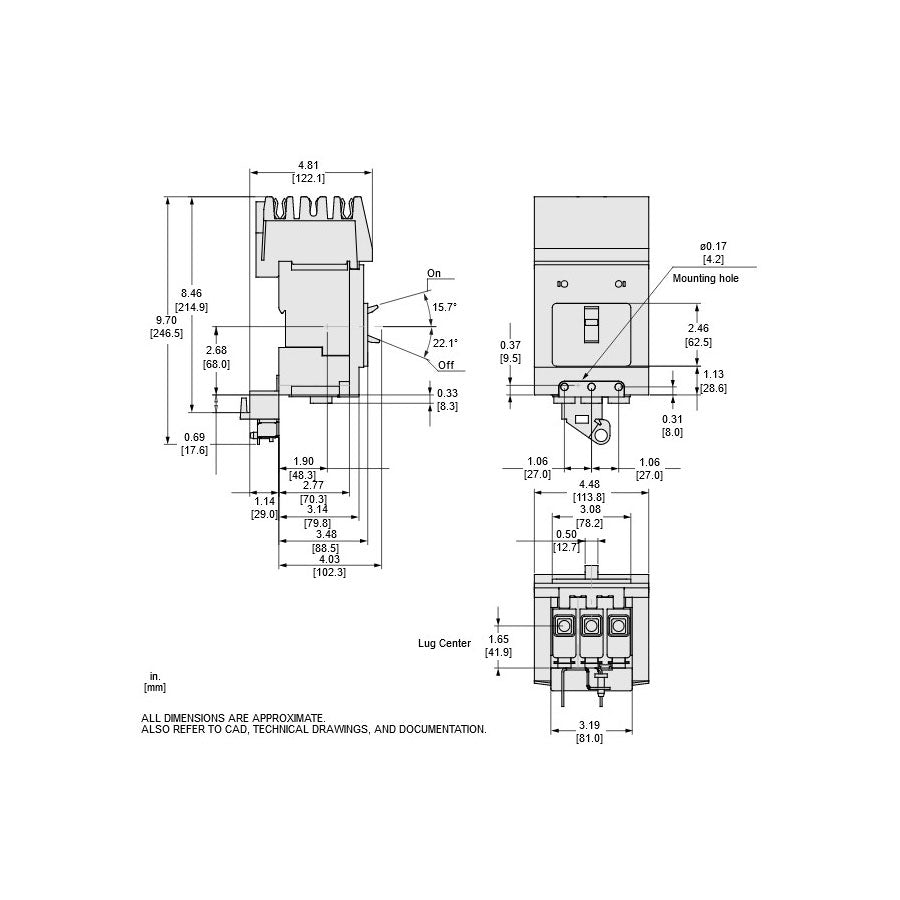

• Dimensions (W x D x H): 3.19 x 3.5 x 5.39 inches
• Certifications: UL 489, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA36060
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901002505
• GTIN : 03606481153821
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.21
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NMX J-266, CSA C22.2 No 5, EN/IEC 60947-5-1, UL 489, EN/IEC 60947-2, GB 14048.2, NEMA AB1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
