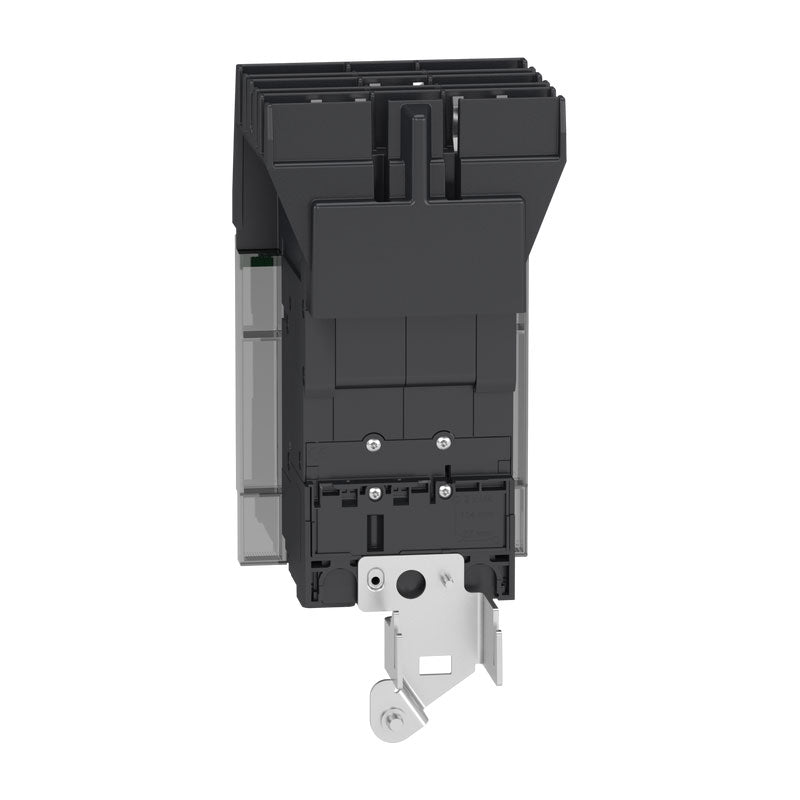

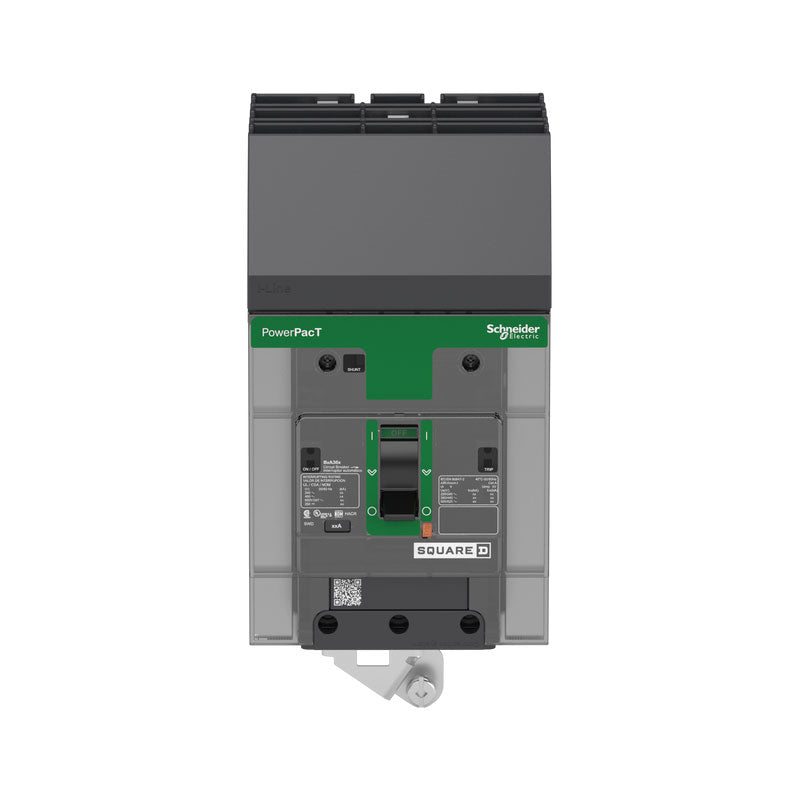

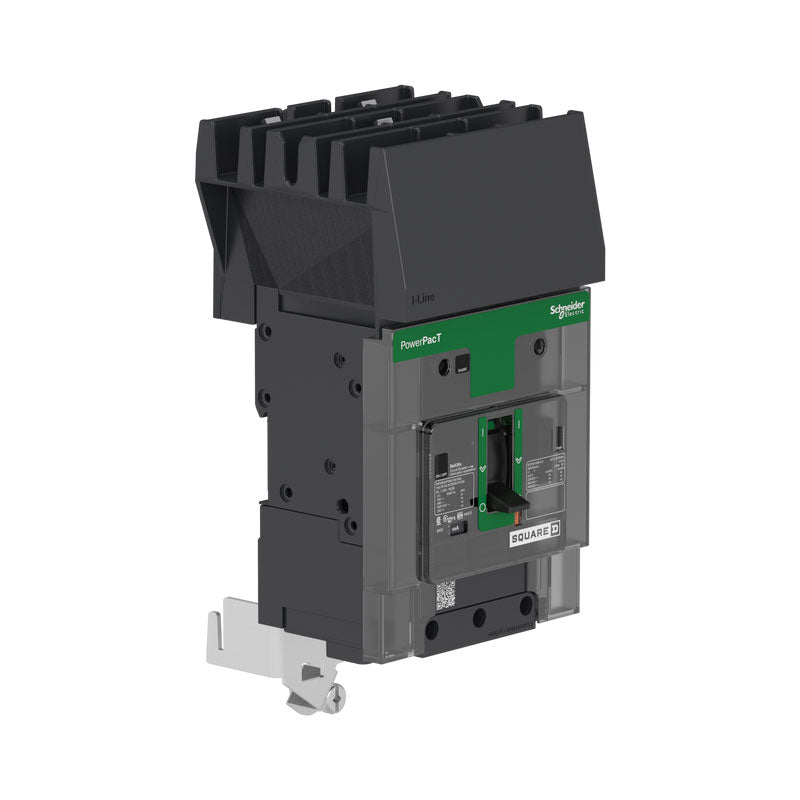

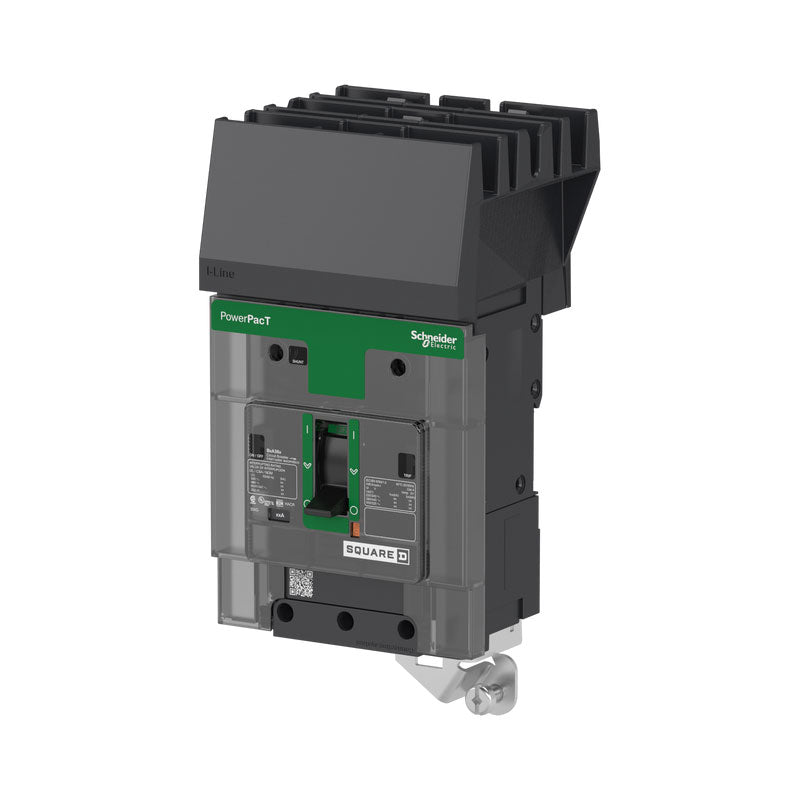

BGA36050 - Square D 50A 3 Pole 600Y/347VAC I-Line PowerPacT B Circuit Breaker

BGA36050

BGA36050 is a Square D 3 pole, 50 amp thermal magnetic molded case circuit breaker designed for 600Y/347VAC applications.This PowerPacT B series breaker features an I-Line plug-in mounting style with long-time and instantaneous trip functions. It has a 35kA interrupting rating at 480V and supports wire sizes from AWG 14 to AWG 2/0 for aluminum or copper conductors. Certified to UL, CSA, CE, NOM, IEC, and other standards, it is suitable for panelboard and switchboard use.

Key Specifications
• Amperage: 50A
• Voltage Rating: 600Y/347VAC
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupting Rating: 35kA at 480V
• Series/Frame: PowerPacT B (BGA frame)
• Trip Unit: Thermal Magnetic with long-time and instantaneous trip
• Certifications: UL, CSA, CE, NOM, IEC, CCC, EAC, GB, NMX
• Terminal Connection: Load side lug
• Wire Gauge Range: AWG 14 to AWG 2/0 aluminum/copper
• Operating Temperature: -25 to 70 °C
• Dimensions (HxWxD): 5.4 x 3.2 x 3.5 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA36050
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 50
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901010432
• GTIN : 03606481153784
• Country of Origin : Mexico

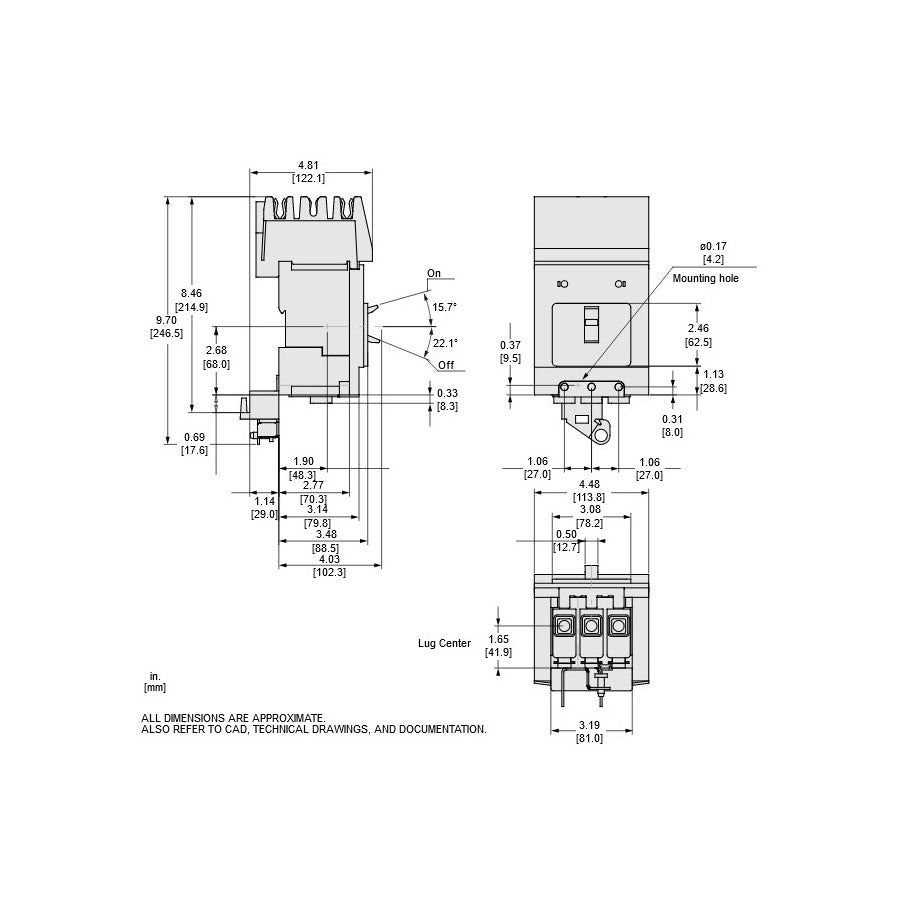

• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 3.849
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : CSA C22.2 No 5, GB 14048.2, NMX J-266, EN/IEC 60947-2, EN/IEC 60947-5-1, UL 489, NEMA AB1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
