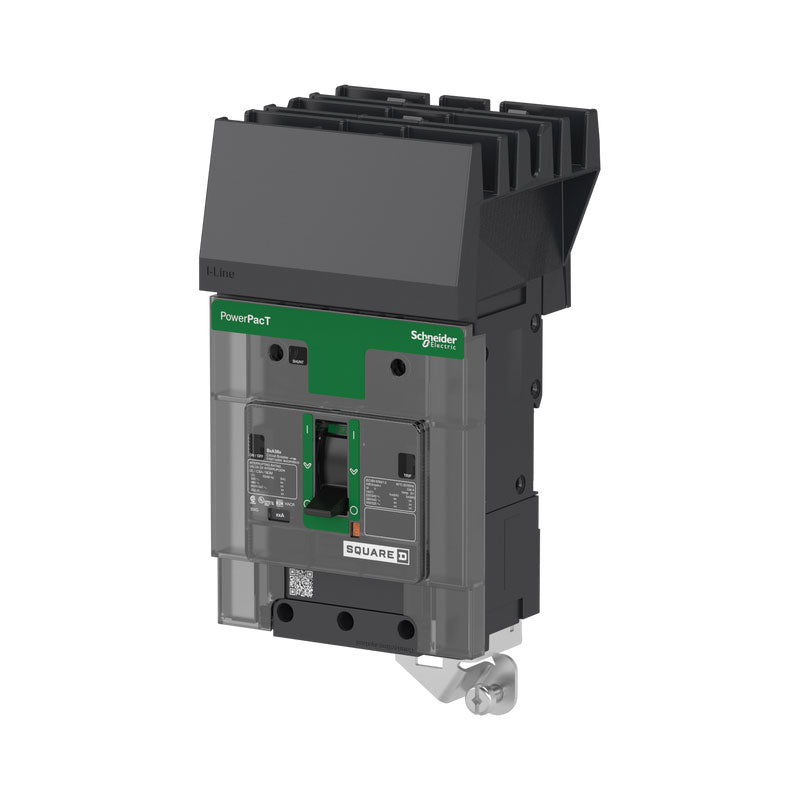

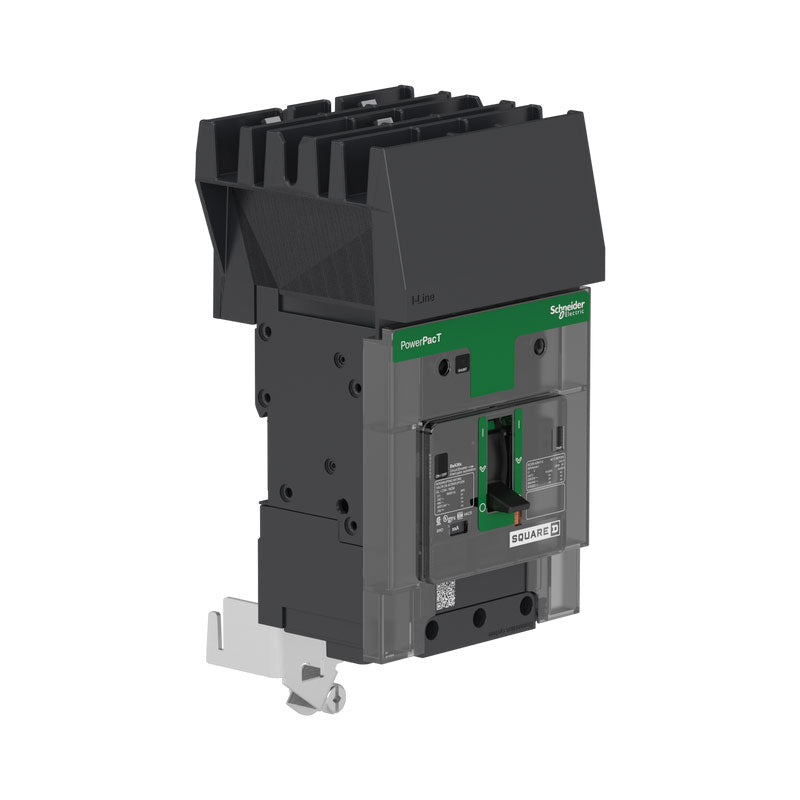

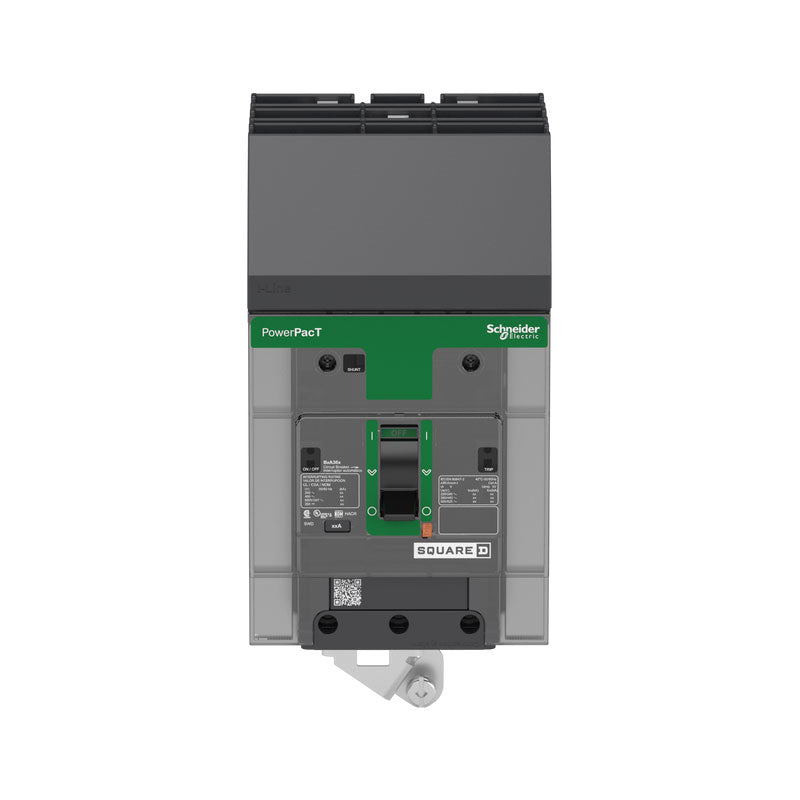

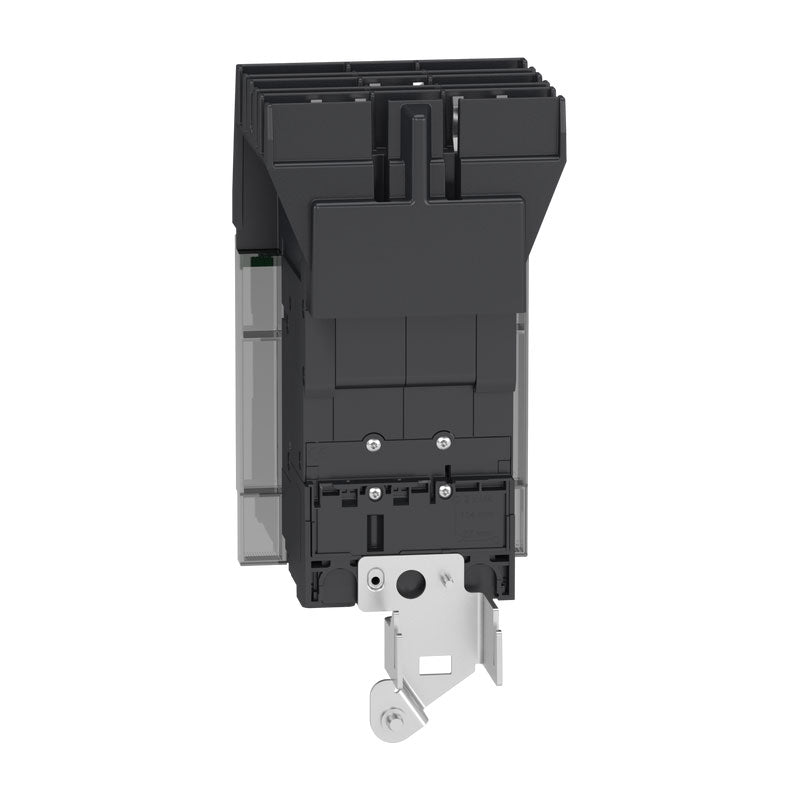

BGA36040 - Square D 40A 600VAC 3-Pole Thermal Magnetic Molded Case Circuit Breaker I-Line

BGA36040

BGA36040 is a 3-pole, 40 amp thermal magnetic molded case circuit breaker from Square D designed for reliable power distribution protection.This Square D BGA36040 circuit breaker features a 600VAC voltage rating and a 35kA interrupting rating at 480V. It has a B-frame type with I-Line plug-in mounting for easy installation in panelboards and switchboards. The breaker includes long-time and instantaneous trip functions and supports wire sizes from 14 AWG to 2/0 AWG. It meets multiple certifications including UL 489, CSA C22.2 No 5, and IEC standards.

Key Specifications
• Amperage: 40A
• Voltage: 600VAC (600Y/347V AC)
• Poles: 3
• Mounting Type: I-Line plug-in
• Interrupting Rating: 35kA at 480V
• Frame Type: B-Frame (PowerPact BGA series)
• Trip Unit: Thermal Magnetic with LI (long-time and instantaneous) functions
• Terminal Connection: Plug-In
• Wire Size Range: 14 AWG to 2/0 AWG
• Standards: UL 489, CSA C22.2 No 5, IEC 60947-2, IEC 60947-5-1

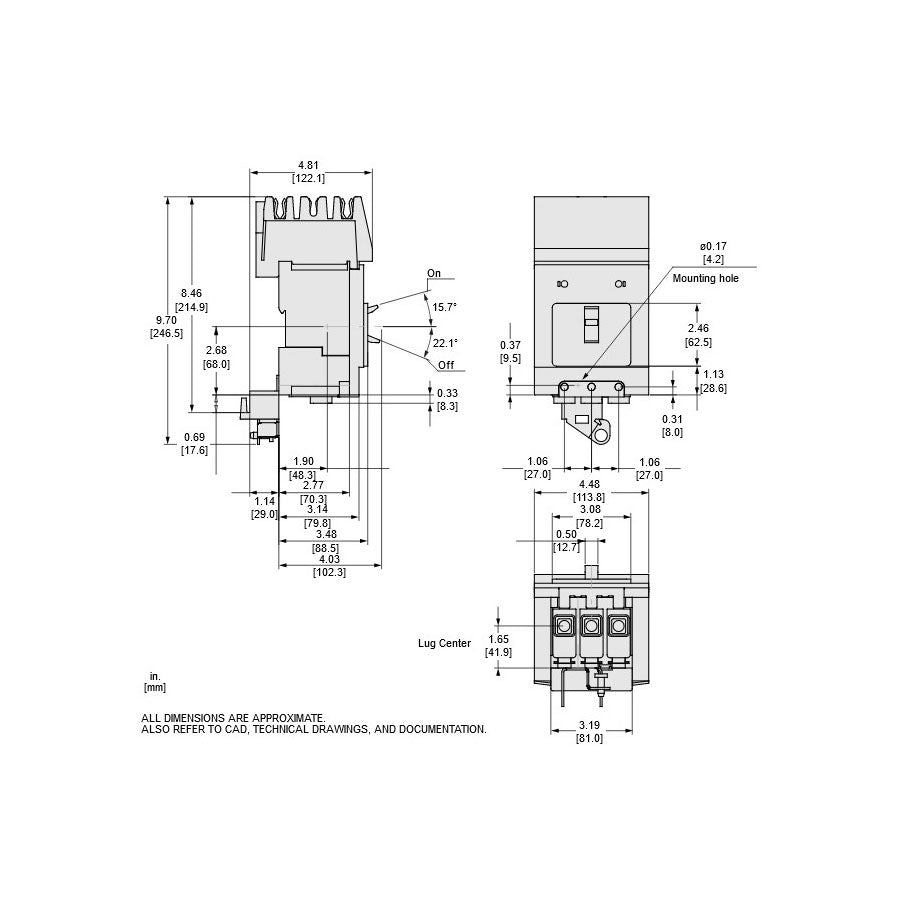

• Dimensions (HxWxD): 5.39 x 3.19 x 3.5 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA36040
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901011408
• GTIN : 03606481153753
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 3.801
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, GB 14048.2, NEMA AB1, UL 489, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
