BGA36025 - Square D 25A 600Y/347VAC 3 Pole I-Line Molded Case Circuit Breaker, PowerPacT BGA Series, Thermal Magnetic Trip, 35kA@480V, UL/CSA/CE Certified

BGA36025

BGA36025 is a Square D 3-pole molded case circuit breaker designed for reliable protection in commercial and industrial electrical systems.

This thermal magnetic circuit breaker features a 25A current rating, 600Y/347VAC voltage rating, and an interrupting capacity of 35kA at 480VAC. It is part of the PowerPacT BGA series, offers I-Line style plug-in mounting, and includes both long time and instantaneous trip functions for enhanced safety. The BGA36025 is built for durability with dual-break rotating contacts and is certified to meet UL, CSA, CE, and other international standards.

Key Specifications

• Amperage: 25A
• Voltage: 600Y/347VAC
• Poles: 3
• Mounting Type: I-Line style plug-in
• Interrupt Rating: 35kA at 480VAC (18kA at 600VAC, 65kA at 240VAC)
• Series/Frame: PowerPacT BGA
• Trip Unit: Thermal magnetic, long time and instantaneous
• Certifications: UL, CSA, CE, GB, EN/IEC, NMX, NEMA, CCC, EAC, NOM, RoHS
• Wire Range: AWG 14 to AWG 2/0 (Aluminum/Copper)
• Actuator: Toggle
• Color: Gray
• Temperature Rating: -13 to 158°F

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA36025
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 25
• Phase : 3
• Poles : 3
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : ABC

Product Data

• UPC : 785901022770
• GTIN : 03606481153692
• Country of Origin : Mexico

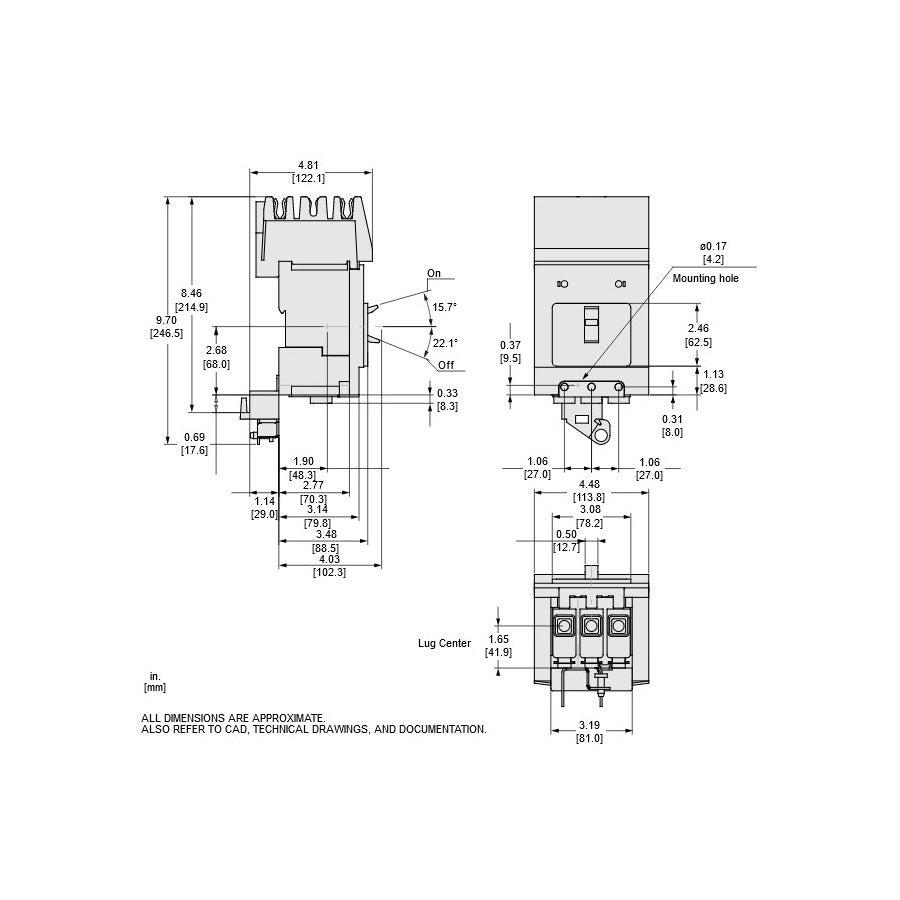

• Dimensions : 5.4 in (137 mm) x 3.2 in (81 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 4.25
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NMX J-266, EN/IEC 60947-5-1, NEMA AB1, UL 489, CSA C22.2 No 5, GB 14048.2, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
