BGA261001 - Schneider Electric Square D PowerPacT B 100A 2-Pole 600Y/347VAC 18kA I-Line Thermal Magnetic Circuit Breaker

SKU: BGA261001-New
Condition: New
Price:
$1,098.70
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

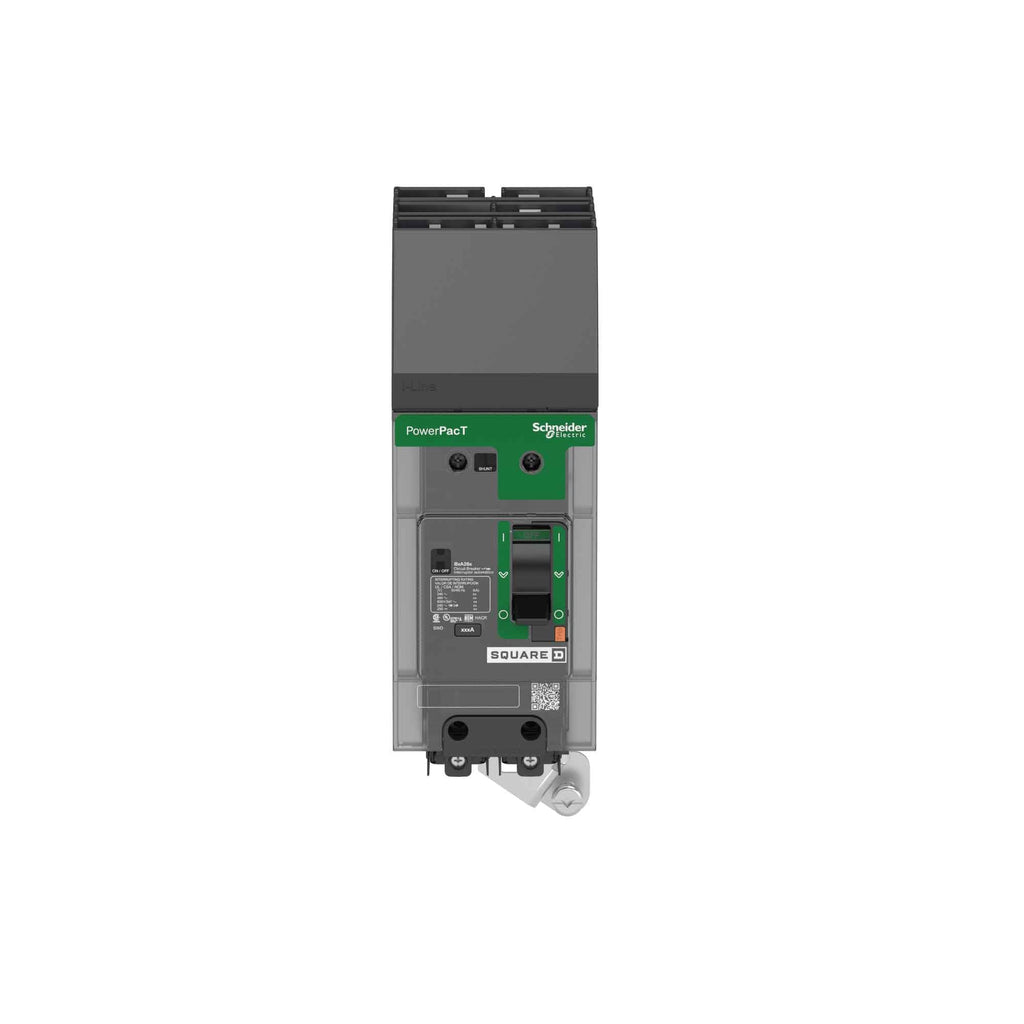

BGA261001 - Square D/ Schneider Electric I-Line Style Plug-In 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BGA261001 - Square D I-Line Style Plug-In 600V 100A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
BGA261001 - Schneider Electric Square D PowerPacT B 100A 2-Pole 600Y/347VAC 18kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BGA261001 - Square D/ Schneider Electric I-Line Style Plug-In 100 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BGA261001 - Square D I-Line Style Plug-In 600V 100A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
BGA261001 - Schneider Electric Square D PowerPacT B 100A 2-Pole 600Y/347VAC 18kA I-Line Thermal Magnetic Circuit Breaker - Essential Electric Supply

Description

BGA261001


BGA261001 is a Schneider Electric Square D PowerPacT B series, 2-pole, 100A circuit breaker designed for reliable protection in commercial and industrial applications.

This thermal magnetic circuit breaker features an I-Line plug-in mounting style, non-interchangeable trip unit, and is rated for 600Y/347VAC systems with an 18kA interrupting capacity. It is UL, CSA, NOM, IEC, CCC certified, and CE marked, ensuring compliance with international standards. The BGA frame offers robust construction and dual-rated AC/DC performance for versatile use.

    Key Specifications
  • Amperage: 100A
  • Voltage: 600Y/347VAC
  • Poles: 2
  • Mounting Type: I-Line plug-in
  • Interrupt Rating: 18kA at 600Y/347VAC
  • Series/Frame: PowerPacT B, BGA
  • Trip Unit: Thermal magnetic, non-interchangeable
  • Certifications: UL, CSA, NOM, IEC, CCC, CE
  • Continuous Current Rating: 80%
  • Connection: AB phase
  • Dimensions: 3.5 x 2.13 x 5.39 inches
  • Weight: 2.10 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: BGA261001
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BGA
  • Voltage : 600
  • Amperage : 100
  • Phase : 1
  • Poles : 2
  • AIC rating : 35kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AB

Product Data

  • UPC : 785901019084
  • GTIN : 03606481153616
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.11
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1, NMX J-266, UL 489, GB 14048.2, EN/IEC 60947-2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
