BGA260602 - Square D 60A 600Y/347VAC 2 Pole Thermal Magnetic Circuit Breaker I-Line

SKU: BGA260602-New
Condition: New
Price:
$636.30
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

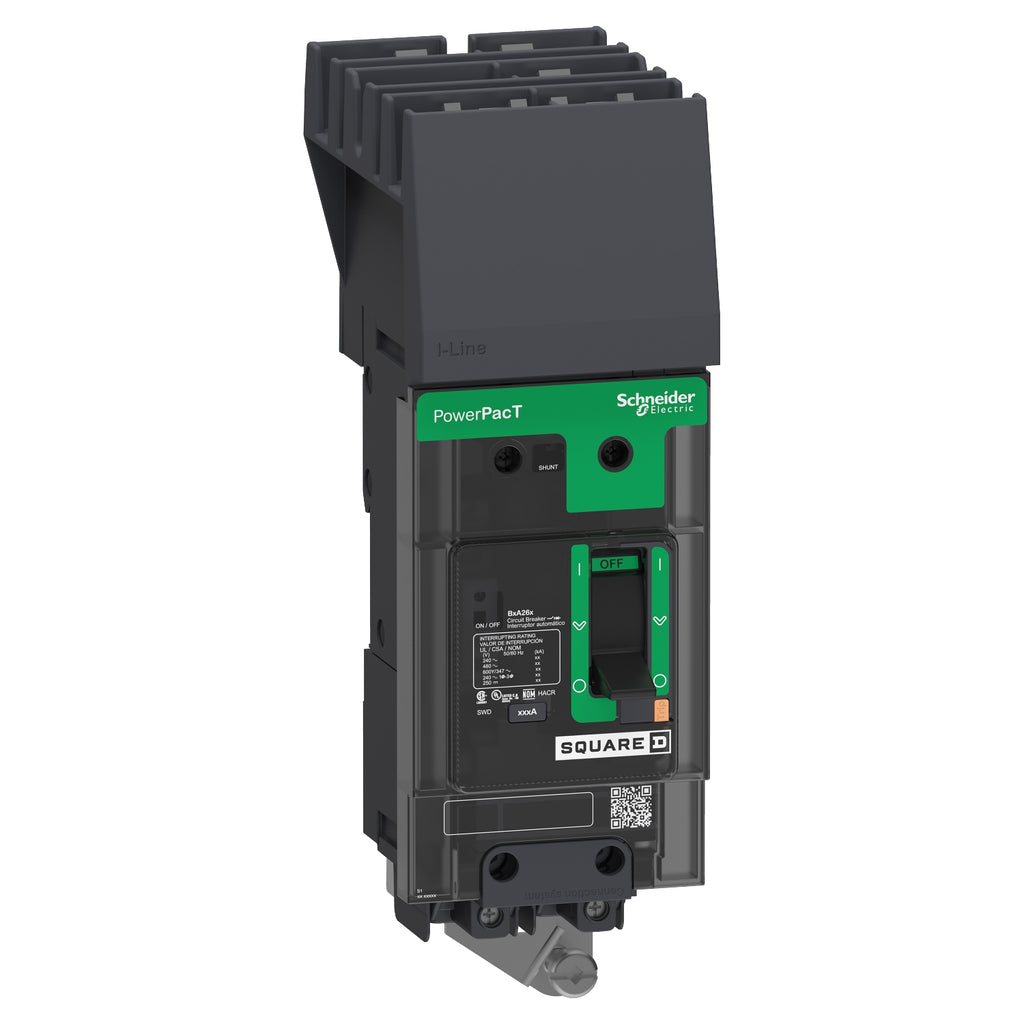

BGA260602 - Square D I-Line Style Plug-In 600V 60A 2 pole circuit breaker 35kA@480V - Essential Electric Supply

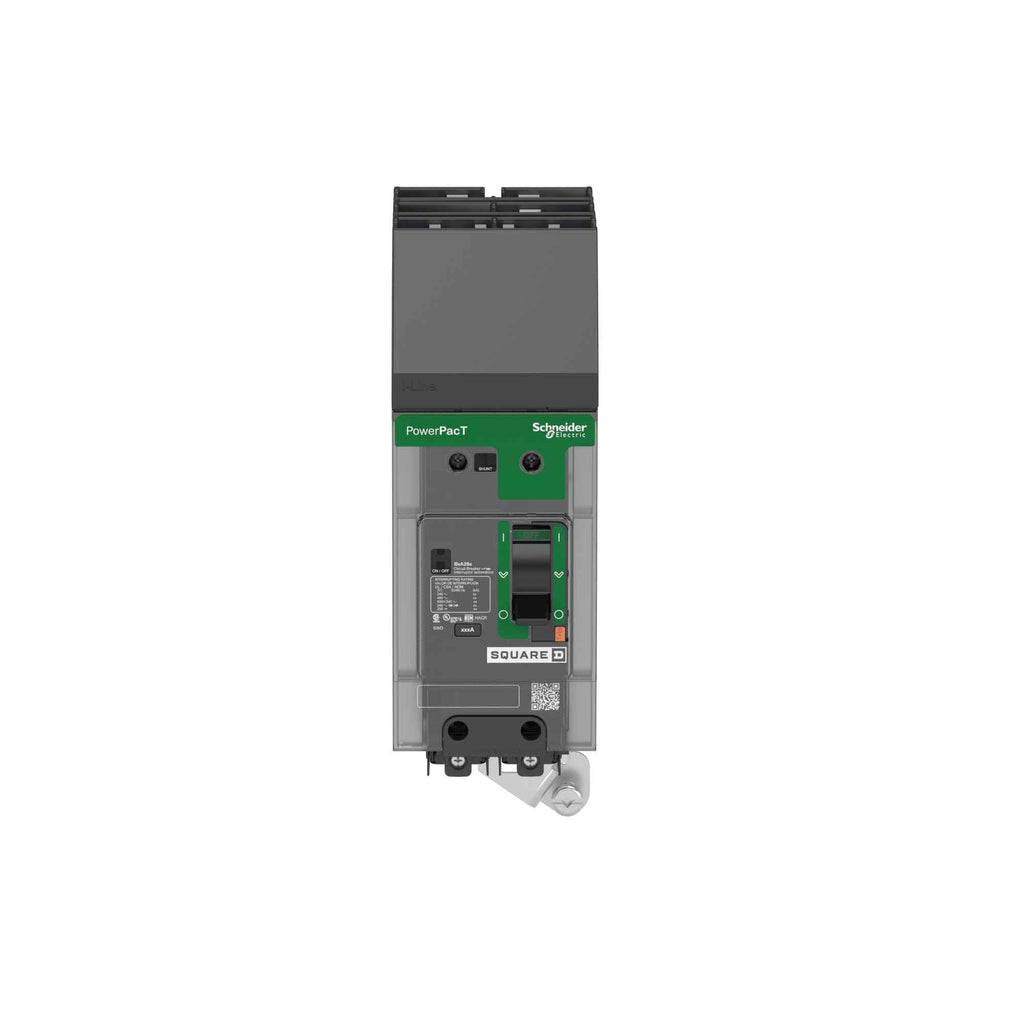

BGA260602 - Square D 60A 600Y/347VAC 2 Pole Thermal Magnetic Circuit Breaker I-Line - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BGA260602 - Square D I-Line Style Plug-In 600V 60A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
BGA260602 - Square D 60A 600Y/347VAC 2 Pole Thermal Magnetic Circuit Breaker I-Line - Essential Electric Supply

Description

BGA260602


BGA260602 is a Square D 2 Pole thermal magnetic molded case circuit breaker rated for 60 Amps and 600Y/347VAC voltage with I-Line style plug-in connection.

This circuit breaker features long time and instantaneous trip functions, a 35kA interrupting rating at 480V, and thermal magnetic protection. It supports line and load lug terminal connections and is compatible with wire gauges AWG 14 to AWG 2/0 aluminum or copper. The breaker meets multiple certifications including UL, CSA, CE, NEMA, and RoHS standards.

    Key Specifications
    • Manufacturer: Square D
    • Part Number: BGA260602
    • Amperage: 60A
    • Voltage: 600Y/347VAC
    • Poles: 2
    • Interrupting Rating: 35kA@480V
    • Connection Type: I-Line Style Plug-In
    • Protection Type: Thermal Magnetic
    • Trip Functions: Long Time and Instantaneous
    • Terminal Connection: Line and Load Lug
    • Wire Gauge Compatibility: AWG 14 to AWG 2/0 Aluminum/Copper
    • Certifications: UL, CSA, CE, NEMA, RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: BGA260602
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BGA
  • Voltage : 600
  • Amperage : 60
  • Phase : 1
  • Poles : 2
  • AIC rating : 35kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : I-Line, Lug
  • Frame Size : G
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
  • Protection : Thermal Magnetic
  • Phase Connection : AC

Product Data

  • UPC : 060648115356
  • GTIN : 03606481153562
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.24
  • Standards : EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, GB 14048.2, NEMA AB1, NMX J-266, UL 489
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
