BGA260601 - Square D 60A 2 Pole Molded Case Circuit Breaker 600Y/347VAC Thermal Magnetic B-Frame I-Line

Save $377.47
SKU: BGA260601-New
Condition: New
Price:
$826.53 $1,204.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

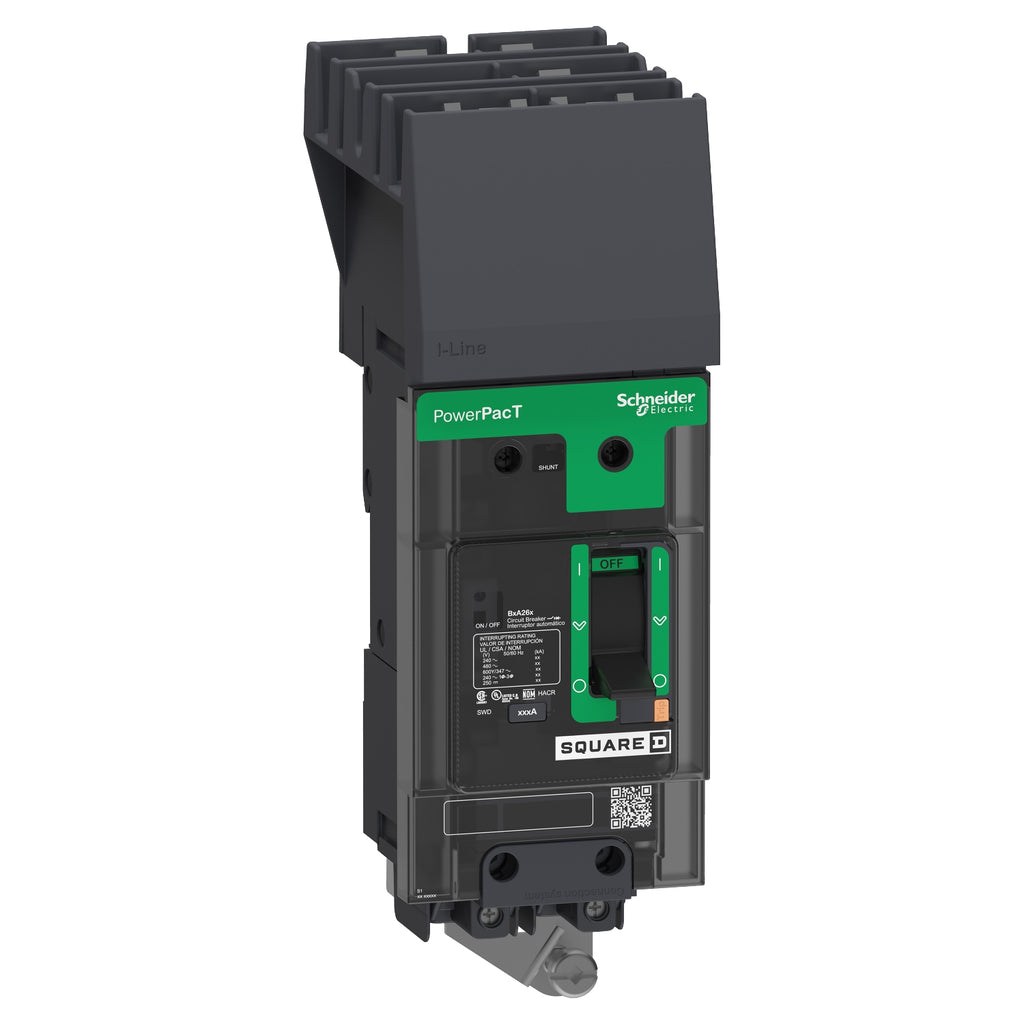

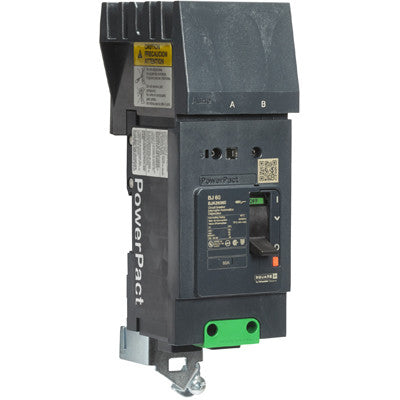

BGA260601 - Square D I-Line Style Plug-In 600V 60A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
BGA260601 - Square D I-Line Style Plug-In 600V 60A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BGA260601 - Square D I-Line Style Plug-In 600V 60A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
BGA260601 - Square D I-Line Style Plug-In 600V 60A 2 pole circuit breaker 35kA@480V - Essential Electric Supply

Description

BGA260601


BGA260601 is a 2 Pole, 60A molded case circuit breaker designed for reliable thermal magnetic protection in commercial and industrial power distribution systems. This Square D PowerPact B-Frame circuit breaker features an I-Line plug-in mounting style, fixed instantaneous trip, and is rated for 600Y/347VAC. It provides robust protection for branch circuits and is suitable for use in panelboards requiring high interrupting capacity and compact design.
  • Part Number: BGA260601
  • Manufacturer: Square D
  • Series/Frame: PowerPact B-Frame
  • Amperage: 60A
  • Poles: 2
  • Voltage Rating: 600Y/347VAC
  • Mounting Type: I-Line Plug-In
  • Interrupting Rating: 65kA at 240VAC, 35kA at 480VAC
  • Trip Unit: Thermal Magnetic, Fixed Instantaneous
  • Certifications: UL, CSA, CE
  • Connection Type: Line and Load Lug
  • Standards: UL 489, NEMA, RoHS
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BGA260601
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BGA
  • Voltage : 600
  • Amperage : 60
  • Phase : 1
  • Poles : 2
  • AIC rating : 35kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AB

Product Data

  • UPC : 606481153558
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.13
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : GB 14048.2, CSA C22.2 No 5, NMX J-266, UL 489, EN/IEC 60947-2, NEMA AB1, EN/IEC 60947-5-1
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
