BGA260504 - Square D 50A 2 Pole 600Y/347V AC PowerPact B Circuit Breaker I-Line Thermal Magnetic

BGA260504

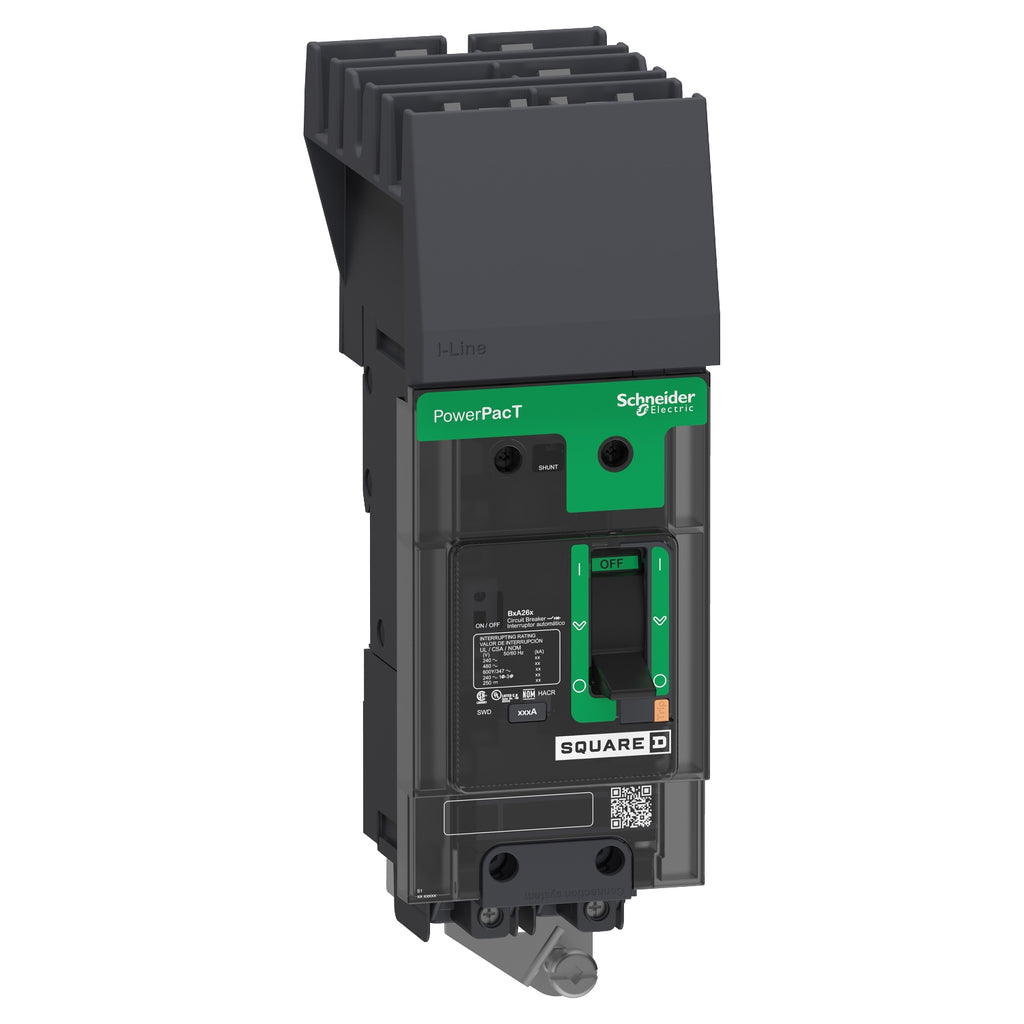

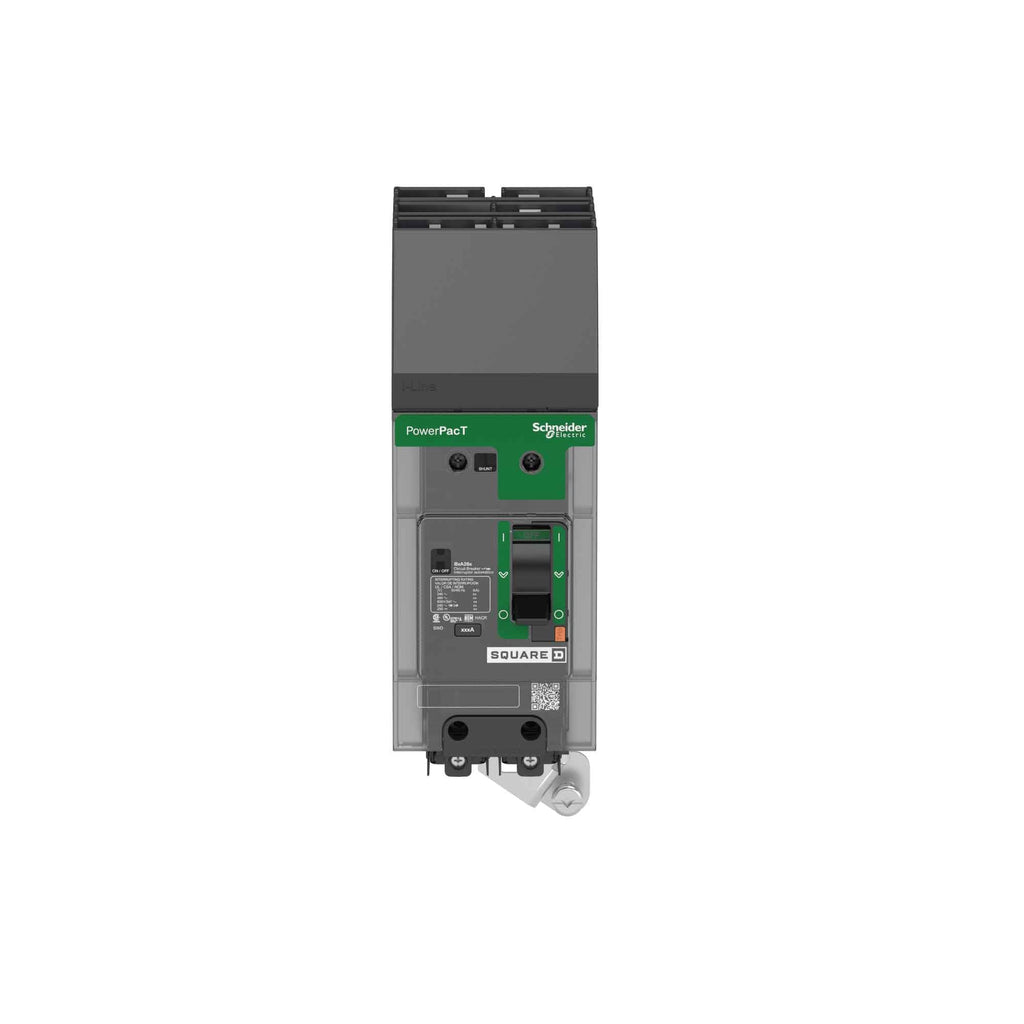

BGA260504 is a Square D PowerPact B molded case circuit breaker designed for reliable circuit protection.This 2 pole, 50 amp circuit breaker operates at 600Y/347 volts AC with an 18kA interrupt rating at 600Y/347VAC. It features a thermal magnetic trip unit and is designed for I-Line plug-in mounting. The breaker is UL listed and suitable for single-phase applications, providing compact and efficient protection in electrical distribution systems.

Key Specifications
• Manufacturer: Square D
• Part Number: BGA260504
• Amperage: 50A
• Poles: 2
• Voltage Rating: 600Y/347V AC
• Interrupt Rating: 18kA at 600Y/347VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: I-Line Plug-In
• Series/Frame: PowerPact B
• Phase: Single Phase
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA260504
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : G
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : BC

Product Data

• UPC : 606481153541
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 2.899
• Standards : NEMA AB1, GB 14048.2, CSA C22.2 No 5, NMX J-266, UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
