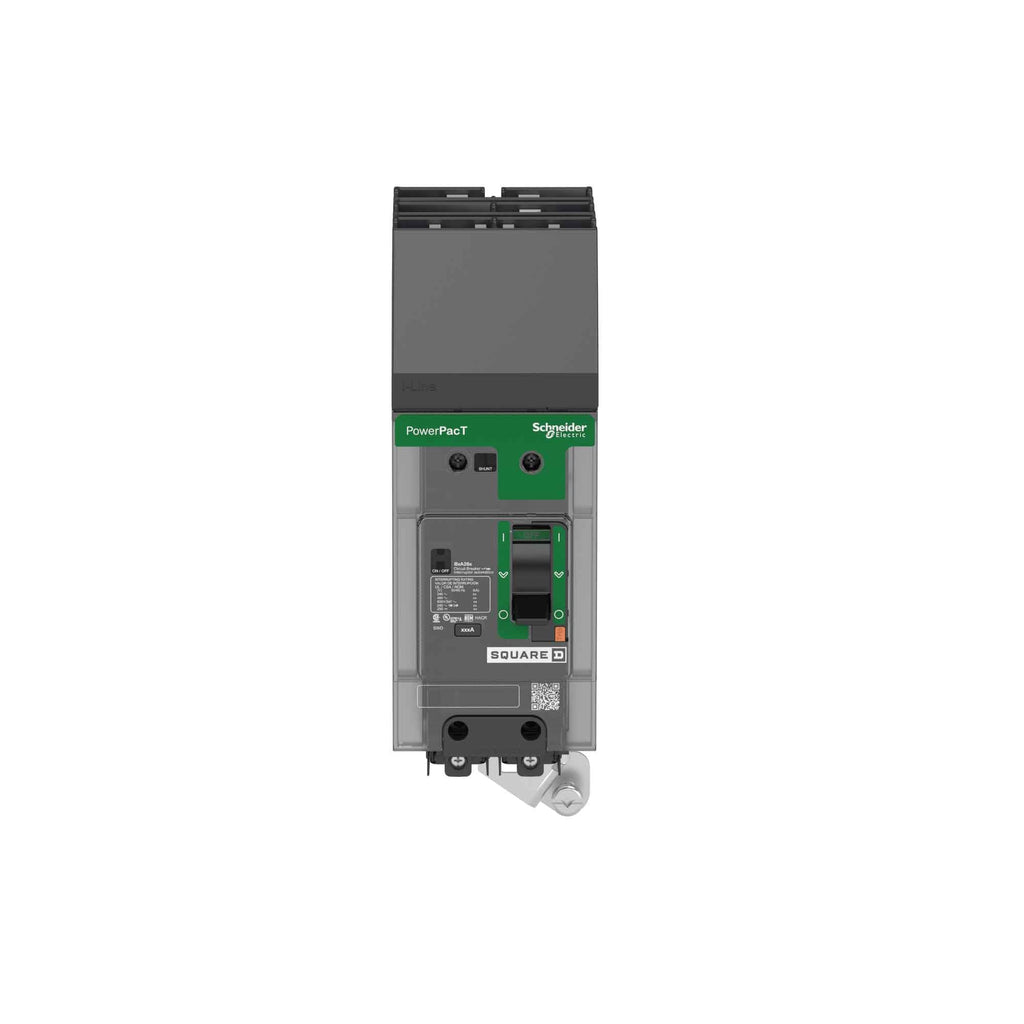

BGA260404 - Square D 40A 2 Pole 600Y/347VAC Thermal Magnetic Circuit Breaker I-Line

BGA260404

BGA260404 is a Square D 2 pole thermal magnetic molded case circuit breaker rated for 40 amps and 600Y/347VAC voltage with I-Line style plug-in mounting.This PowerPact B series breaker features long time and instantaneous trip functions, a 35kA interrupting rating at 480V, and load side mechanical lug terminals. It supports wire gauges from AWG 14 to AWG 2/0 aluminum or copper and meets multiple certifications including UL, CSA, CE, and RoHS.

• Manufacturer: Square D
• Series/Frame: PowerPact BGA
• Amperage: 40A
• Voltage Rating: 600Y/347VAC
• Poles: 2
• Interrupt Rating: 35kAIC @ 480V
• Mounting Type: I-Line Style Plug-In
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous
• Terminal Connection: Line and Load Lug
• Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper
• Certifications: UL, CSA, CE, RoHS, NEMA, NOM, CCC, EAC
• Color: Gray

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA260404
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : G
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG (Cu/Al) Max. Wire Size 2/0 AWG (Cu/Al)
• Protection : Thermal Magnetic
• Phase Connection : BC

Product Data

• UPC : BGA260404
• GTIN : 03606481153517
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 2.899
• Standards : UL 489, EN/IEC 60947-2, GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-5-1, NEMA AB1, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
