BGA260401 - Square D 40A 2 Pole 600Y/347VAC Thermal Magnetic Circuit Breaker I-Line

Save $515.65
SKU: BGA260401-ReCert
Condition: Re-Certified
Price:
$688.35 $1,204.00
Stock:
Low inventory, please call for stock check
This ships in 1-2 business days

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

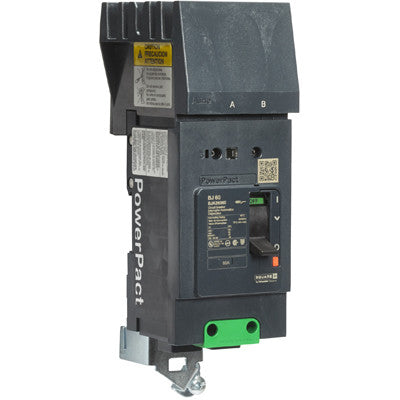

BGA260401 - Square D/ Schneider Electric I-Line Style Plug-In 40 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BGA260401 - Square D I-Line Style Plug-In 600V 40A 2 pole circuit breaker 35kA@480V - Essential Electric Supply

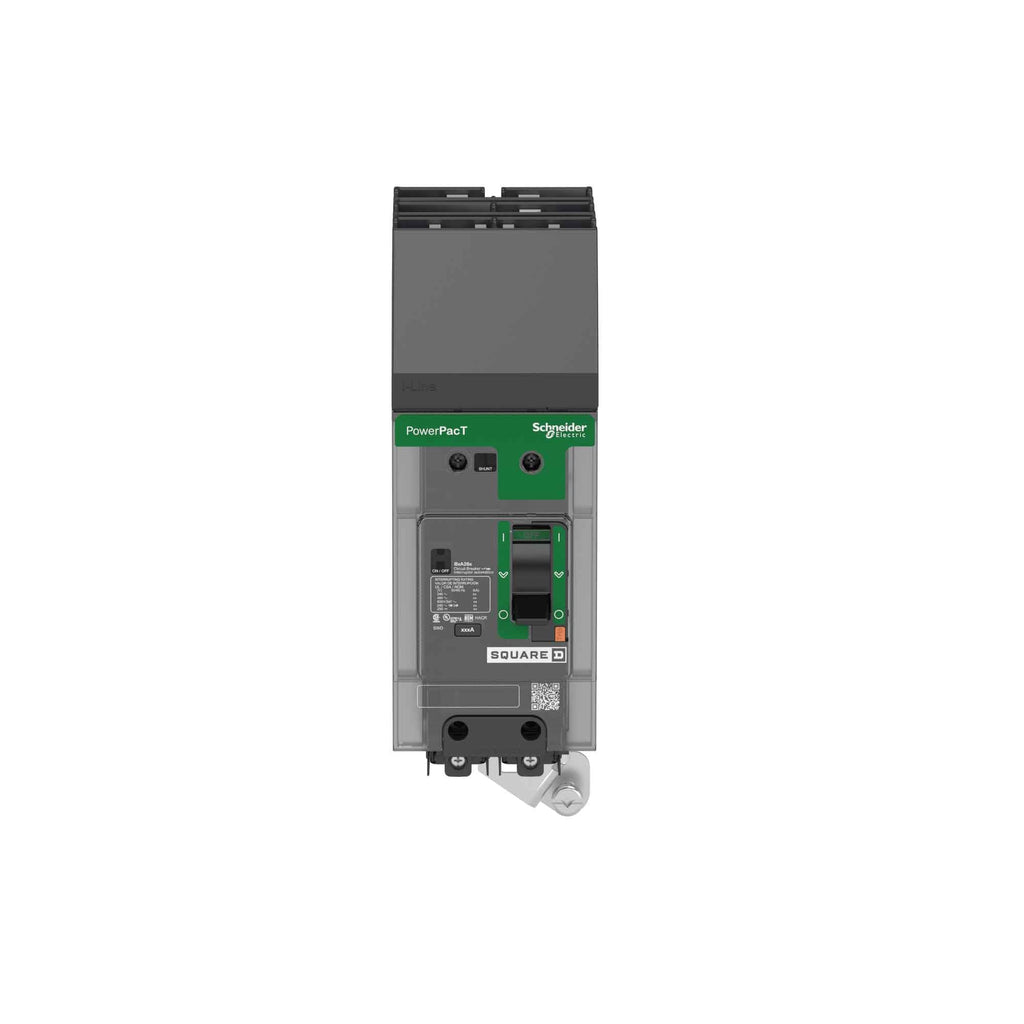

BGA260401 - Square D 40A 2 Pole 600Y/347VAC Thermal Magnetic Circuit Breaker I-Line - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BGA260401 - Square D/ Schneider Electric I-Line Style Plug-In 40 Amp 2 Pole Circuit Breaker - Essential Electric Supply
BGA260401 - Square D I-Line Style Plug-In 600V 40A 2 pole circuit breaker 35kA@480V - Essential Electric Supply
BGA260401 - Square D 40A 2 Pole 600Y/347VAC Thermal Magnetic Circuit Breaker I-Line - Essential Electric Supply

Description

BGA260401


BGA260401 is a Square D 2 pole thermal magnetic circuit breaker rated for 40 amps and 600Y/347VAC voltage with I-Line style plug-in mounting.

This molded case circuit breaker from the PowerPact BGA series features long-time and instantaneous trip functions, thermal magnetic protection, and a 35kA interrupting rating at 480V. It supports line and load lug terminal connections and is suitable for single-phase electrical distribution applications. The breaker meets multiple certifications including UL, CSA, CE, and RoHS standards.

    Key Specifications
    • Amperage: 40A
    • Voltage Rating: 600Y/347VAC
    • Poles: 2
    • Mounting Type: I-Line Style Plug-In
    • Interrupting Rating: 35kA at 480V
    • Series/Frame: PowerPact BGA
    • Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
    • Terminal Connection: Line and Load Lug
    • Phase: Single
    • Standards: UL, CSA, CE, RoHS, NEMA, IEC
    • Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper
    • Color: Gray

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: BGA260401
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BGA
  • Voltage : 600
  • Amperage : 40
  • Phase : 1
  • Poles : 2
  • AIC rating : 35kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : Long Time and Instantaneous Trip
  • Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
  • Frame Size : 125A/BG
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : AB

Product Data

  • UPC : 785901026570
  • GTIN : 03606481153494
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
  • Weight : 3.17
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : NMX J-266, EN/IEC 60947-5-1, CSA C22.2 No 5, NEMA AB1, UL 489, GB 14048.2, EN/IEC 60947-2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 14...AWG 2/0 aluminium/copper
