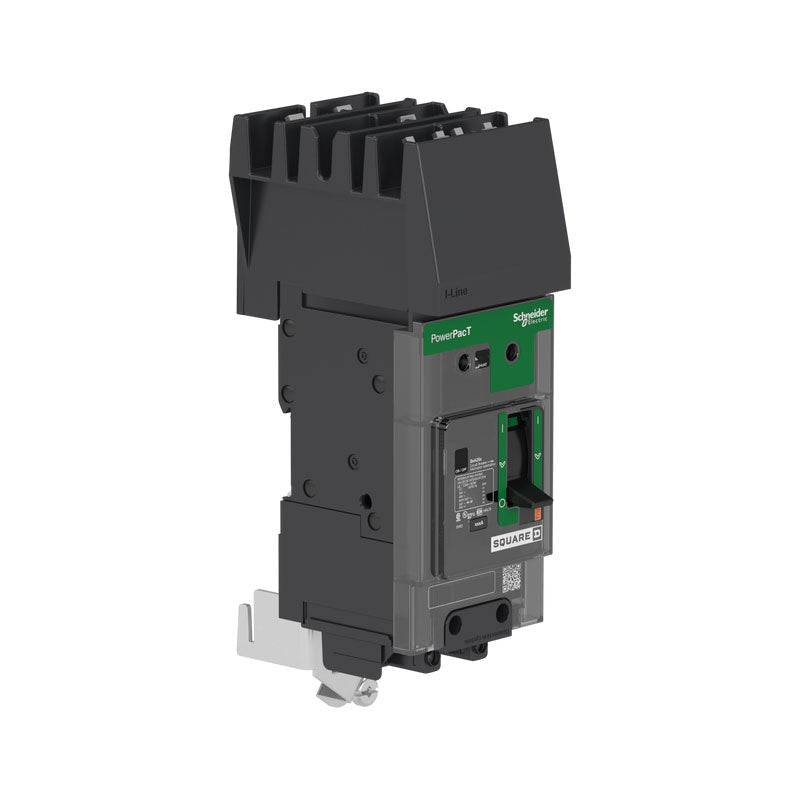

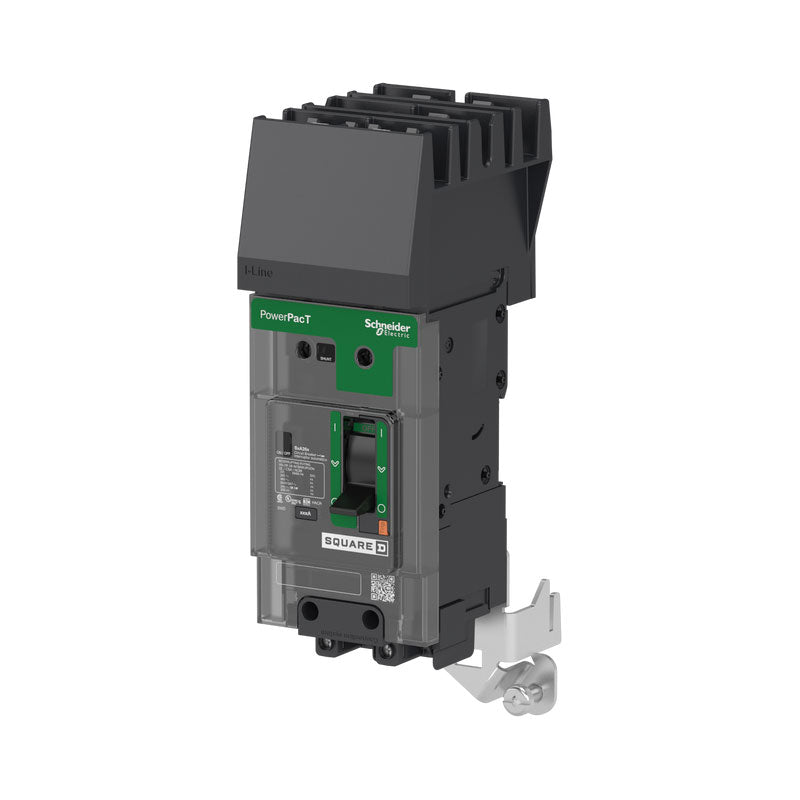

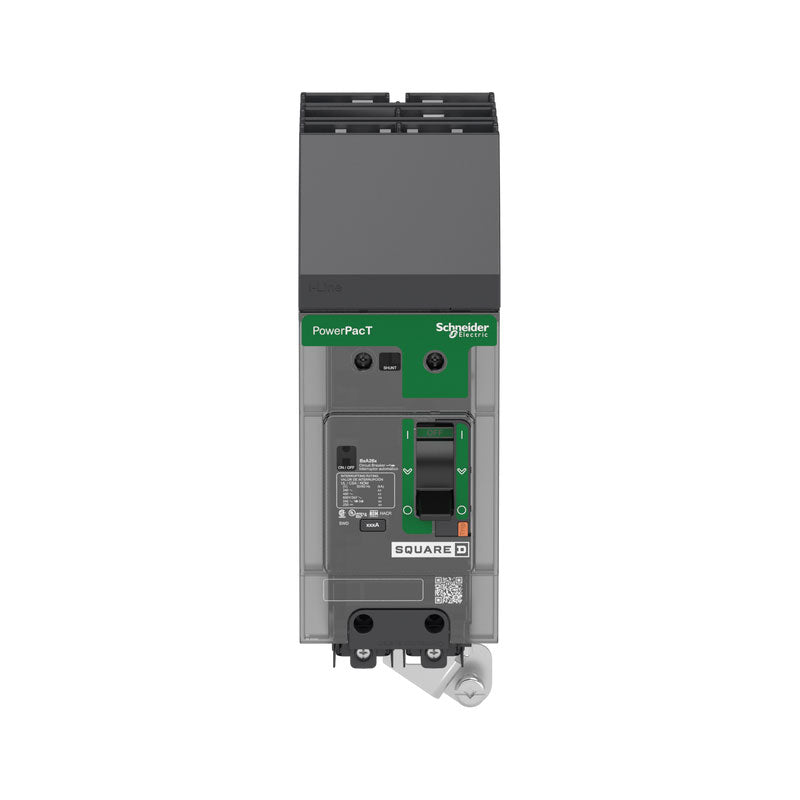

BGA260301 - Schneider Electric 30A 2-Pole PowerPact B Frame Circuit Breaker, 600Y/347V AC, I-Line Mount

BGA260301

BGA260301 is a Schneider Electric PowerPact B Frame circuit breaker rated for 30 amps and 2 poles, designed for I-Line mounting in commercial and industrial applications.This thermal magnetic molded case circuit breaker features a 30 amp current rating, dual AC/DC rating, and multiple interrupt ratings up to 65 kA at 240V AC. It supports voltages up to 600Y/347V AC and 250V DC, with UL 489 certification. The breaker offers reliable protection with a G interrupt rating and is compatible with I-Line distribution panels.

Key Specifications
• Amperage: 30 Amp
• Poles: 2
• Voltage Rating: 600Y/347V AC, 250V DC
• Interrupt Rating: 65 kA at 240V AC, 35 kA at 480V AC, 18 kA at 600Y/347V AC
• Frame Type: B Frame
• Mounting Type: I-Line
• Trip Unit: Thermal Magnetic
• UL Listing: UL 489
• Interrupt Code: G
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BGA260301
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AB



Product Data

• UPC : 785901047506
• GTIN : 03606481153463
• Country of Origin : Mexico

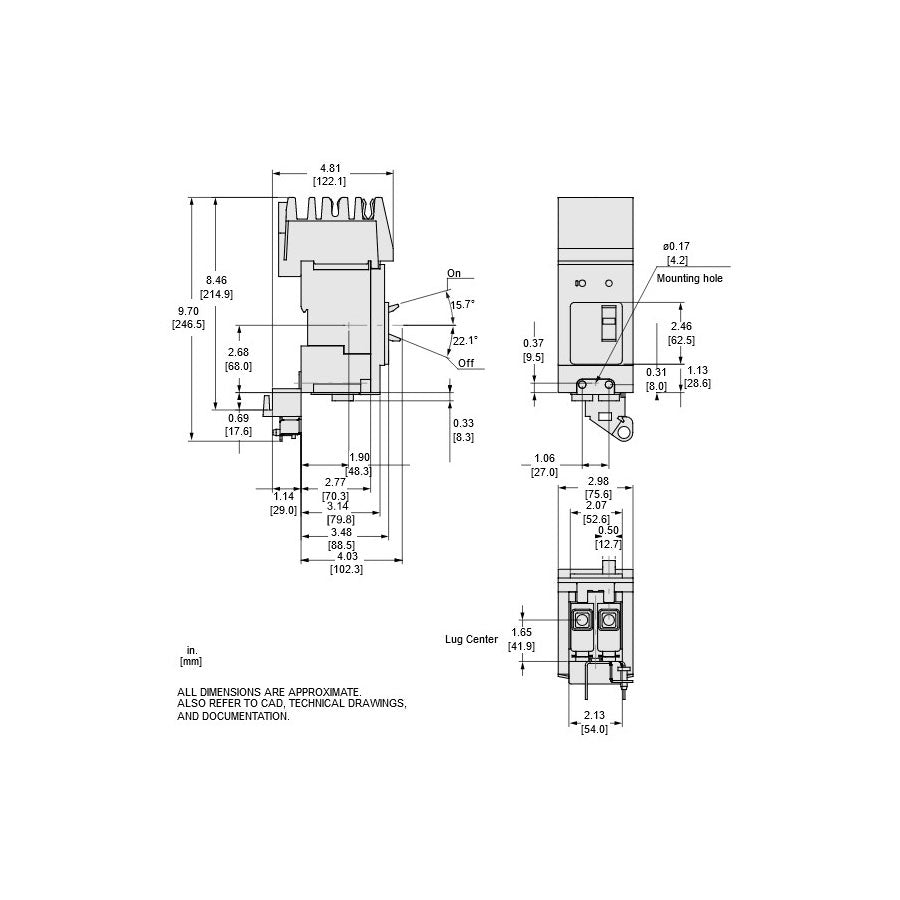

• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 3.15
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : GB 14048.2, NMX J-266, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2, UL 489, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
