BGA260201 - Square D 20A 2-Pole 600Y/347VAC Thermal Magnetic Circuit Breaker I-Line

BGA260201

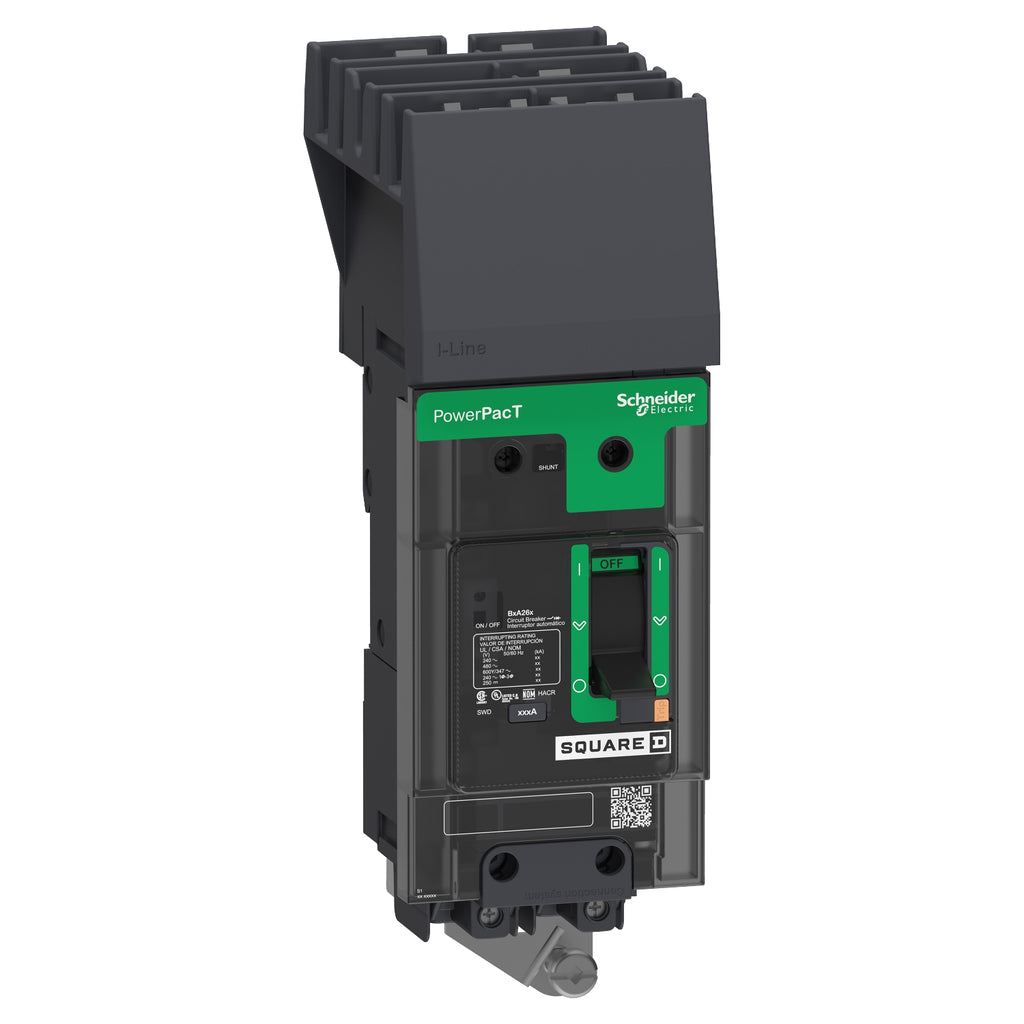

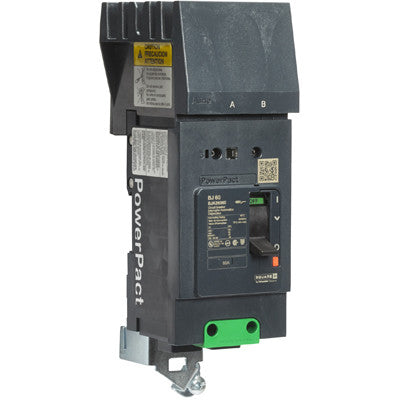

BGA260201 is a Square D 2-pole thermal magnetic circuit breaker rated for 20 amps and 600Y/347VAC voltage with I-Line plug-in mounting.

This molded case circuit breaker features long time and instantaneous trip functions, a 100kA interrupting rating at 240VAC, and supports line and load lug terminal connections. It is designed for use in 1-phase systems with a BGA frame and is certified to multiple standards including UL, CSA, CE, and RoHS. The breaker accepts wire gauges from AWG 14 to AWG 2/0 aluminum or copper and operates reliably in temperatures from -13 to 158°F.

Key Specifications
• Amperage: 20A
• Voltage: 600Y/347VAC
• Poles: 2
• Mounting Type: I-Line Style Plug-In
• Interrupting Rating: 100kA at 240VAC
• Series/Frame: BGA
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Terminal Connection: Line and Load Lug
• Wire Gauge: AWG 14 to AWG 2/0 Aluminum/Copper
• Certifications: UL, CSA, CE, RoHS, NEMA, EN/IEC, NOM
• Operating Temperature: -13 to 158°F
• Color: Gray

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA260201
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BGA
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 35kA@480V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Al Mechanical Lug OFF End, I-Line ON End
• Frame Size : 125A/BG
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 2 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 606481153428
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.5 in (89 mm) (Height x Width x Depth)
• Weight : 3.13
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : GB 14048.2, UL 489, EN/IEC 60947-5-1, EN/IEC 60947-2, NMX J-266, NEMA AB1, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 14...AWG 2/0 aluminium/copper
