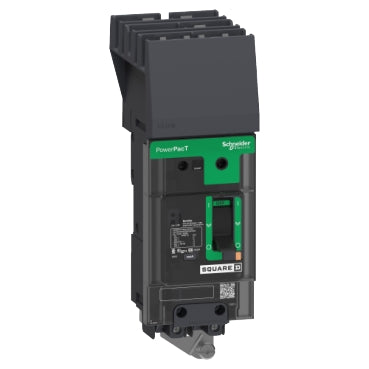

BGA24020Y2 - Square D PowerPact B 20A 2 Pole 480Y/277VAC I-Line Circuit Breaker Thermal Magnetic 35kA

BGA24020Y2

BGA24020Y2 is a Square D PowerPact B series 2 pole thermal magnetic molded case circuit breaker rated for 20A and 480Y/277VAC, designed for I-Line busway applications. This breaker features a 35kA interrupt rating, 80% continuous current rating, and is built for reliable protection in commercial and industrial power distribution systems. It is compatible with I-Line busway mounting and is certified to UL, CSA, IEC, and other major standards.

• Part Number: BGA24020Y2
• Manufacturer: Square D
• Series/Frame: PowerPact B
• Amperage: 20A
• Voltage: 480Y/277VAC
• Poles: 2
• Mounting Type: I-Line
• Interrupt Rating: 35kA
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Certifications: UL, CSA, IEC
• Weight: 0.952 kg

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BGA24020Y2
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : PowerPacT B
• Type : PowerPacT B
• Voltage : 480Y/277VAC
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 35kAIC at 480VAC
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Circuit Breaker Mounting Style : I-Line
• Mounting : I-Line
• Protection : Thermal Magnetic

Product Data

• Weight : 5.19
• Standards : RoHS, REACh, HACR
• Certification : CE, UL, EN/IEC, CCC, EAC, CSA, NOM, NEMA, GB, NMX
• Wire Size : AWG 14 to AWG 2/0, Aluminum/Copper
