BDL26110 - Schneider Electric 110A 2 Pole Molded Case Circuit Breaker BDL Series 600V AC 25kA Interrupt Rating Thermal Magnetic

SKU: BDL26110-New
Condition: New
Price:
$685.46
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

BDL26110 - Essential Electric Supply
BDL26110 - Schneider Electric Feed-Thru 600V 110A 2 pole circuit breaker 18kA@480V - Essential Electric Supply

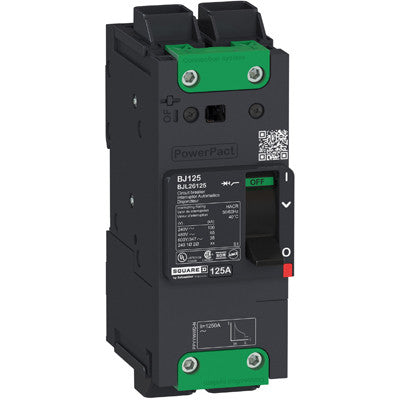

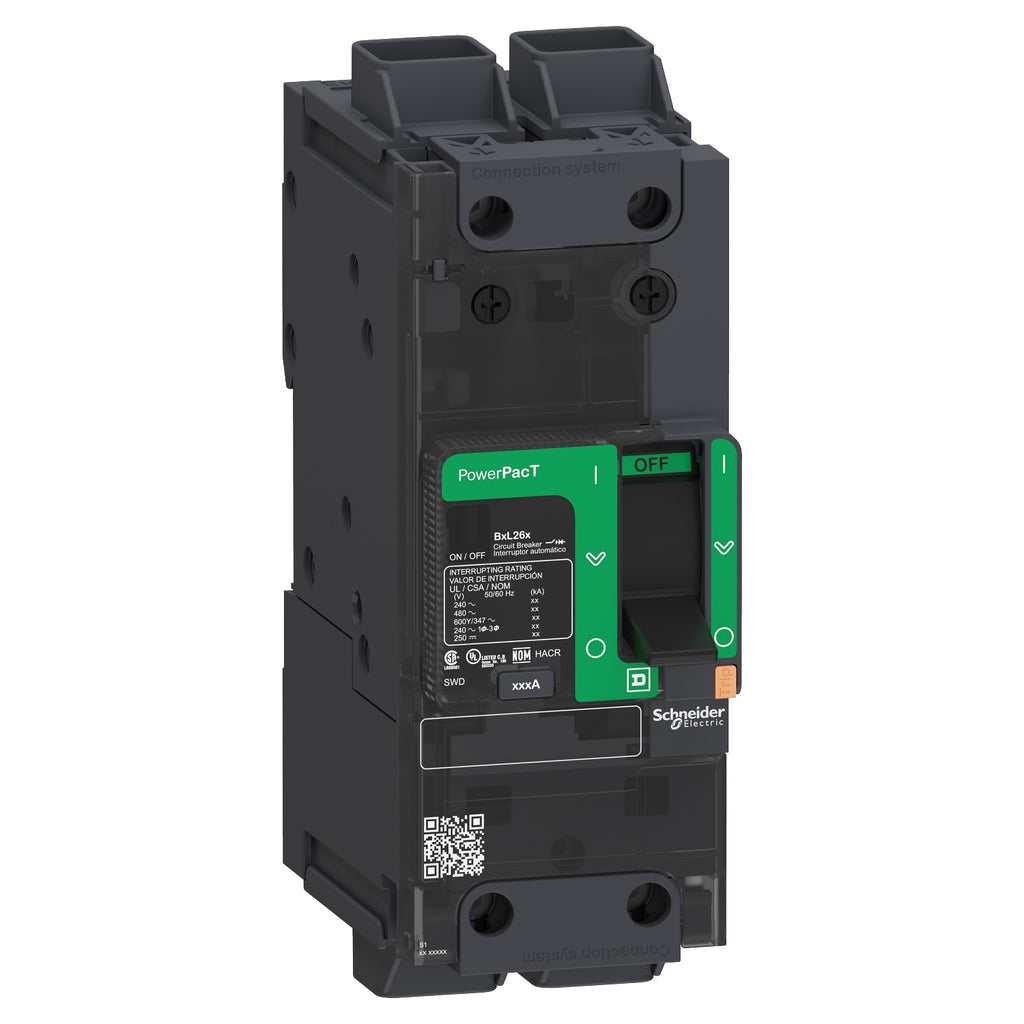

Roll over image to zoom in Click on image to zoom Images are for reference only
BDL26110 - Essential Electric Supply
BDL26110 - Schneider Electric Feed-Thru 600V 110A 2 pole circuit breaker 18kA@480V - Essential Electric Supply

Description

BDL26110


BDL26110 is a Schneider Electric 110 amp, 2 pole molded case circuit breaker from the BDL series designed for reliable power distribution protection.This circuit breaker features a 600V AC voltage rating, 25kA interrupting capacity at 240V AC, and thermal magnetic trip unit technology. It is suitable for industrial and commercial applications requiring robust overcurrent protection with an 80% continuous current rating. The breaker mounts easily and complies with industry certifications for safety and performance.
  • Amperage: 110A
  • Poles: 2
  • Voltage Rating: 600V AC (347/600Y VAC)
  • Interrupt Rating: 25kA at 240V AC
  • Trip Unit: Thermal Magnetic
  • Series/Frame: BDL
  • Mounting Type: Standard molded case
  • Continuous Current Rating: 80%
  • Certifications: Industry standard safety certifications
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDL26110
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDL
  • Voltage : 600
  • Amperage : 110
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Everlink Lug Both Ends
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 785901072256
  • GTIN : 00785901072256
  • Country of Origin : United States
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 2
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : EN/IEC 60947-2, EN/IEC 60947-5-1, NMX J-266, CSA C22.2 No 5, UL 489, NEMA AB1, GB 14048.2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper
