BDL26090 - Square D 90A 600Y/347VAC 2 Pole Thermal Magnetic Circuit Breaker B-Frame

BDL26090

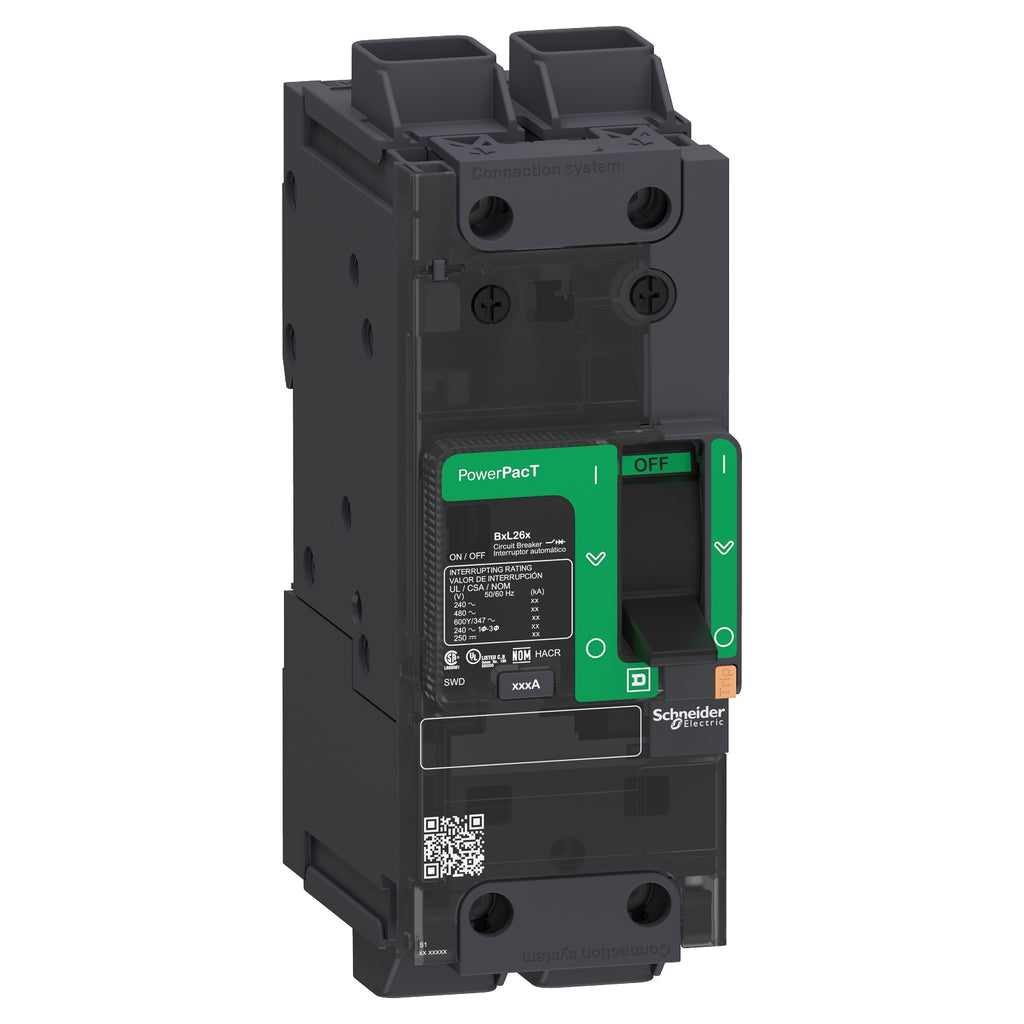

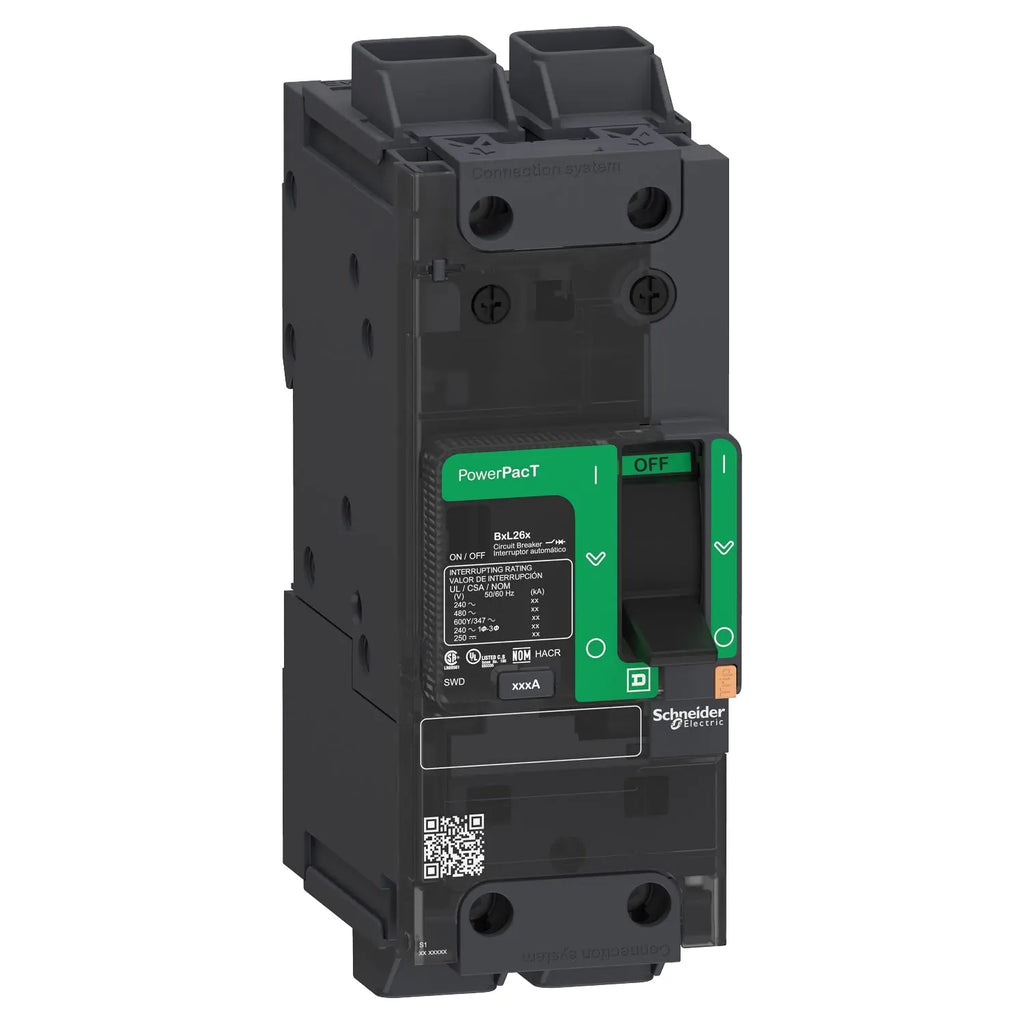

BDL26090 is a Square D 2 pole thermal magnetic circuit breaker rated for 90 amps and 600Y/347VAC voltage, designed for reliable circuit protection in industrial and commercial applications.This molded case circuit breaker features a PowerPact B-Frame design with a clip-on mounting type suitable for 35 x 15 mm symmetrical DIN rail or screw plate mounting. It offers a high interrupting rating of 18kA at 480V and 14kA at 600Y/347VAC, with long-time and instantaneous trip functions for enhanced protection. The breaker supports feed-thru connection with Everlink lugs on both ends and is UL, IEC, CCC, EAC, CSA, and NOM certified.

Key Specifications
• Amperage: 90A
• Voltage Rating: 600Y/347VAC
• Poles: 2
• Mounting Type: Clip-on DIN rail or screw plate
• Interrupting Rating: 18kA @ 480V, 14kA @ 600Y/347VAC
• Frame Type: PowerPact B-Frame
• Trip Unit: Thermal Magnetic with long-time and instantaneous functions
• Connection Type: Feed-Thru with Everlink lugs
• Certifications: UL, IEC, CCC, EAC, CSA, NOM
• Dimensions (LxWxH): 3.15 x 2.13 x 5.39 inches
• Wire Gauge Compatibility: AWG 6 to 3/0 Aluminum/Copper

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL26090
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901072027
• GTIN : 00785901072027
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-5-1, CSA C22.2 No 5, EN/IEC 60947-2, NEMA AB1, UL 489, GB 14048.2, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
