BDL26080 - Schneider Electric PowerPact B 80A 2-Pole Molded Case Circuit Breaker 600Y/347VAC 14kA Thermal Magnetic

BDL26080

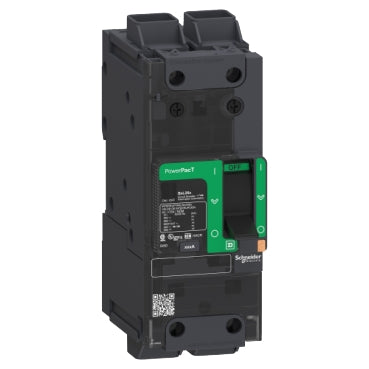

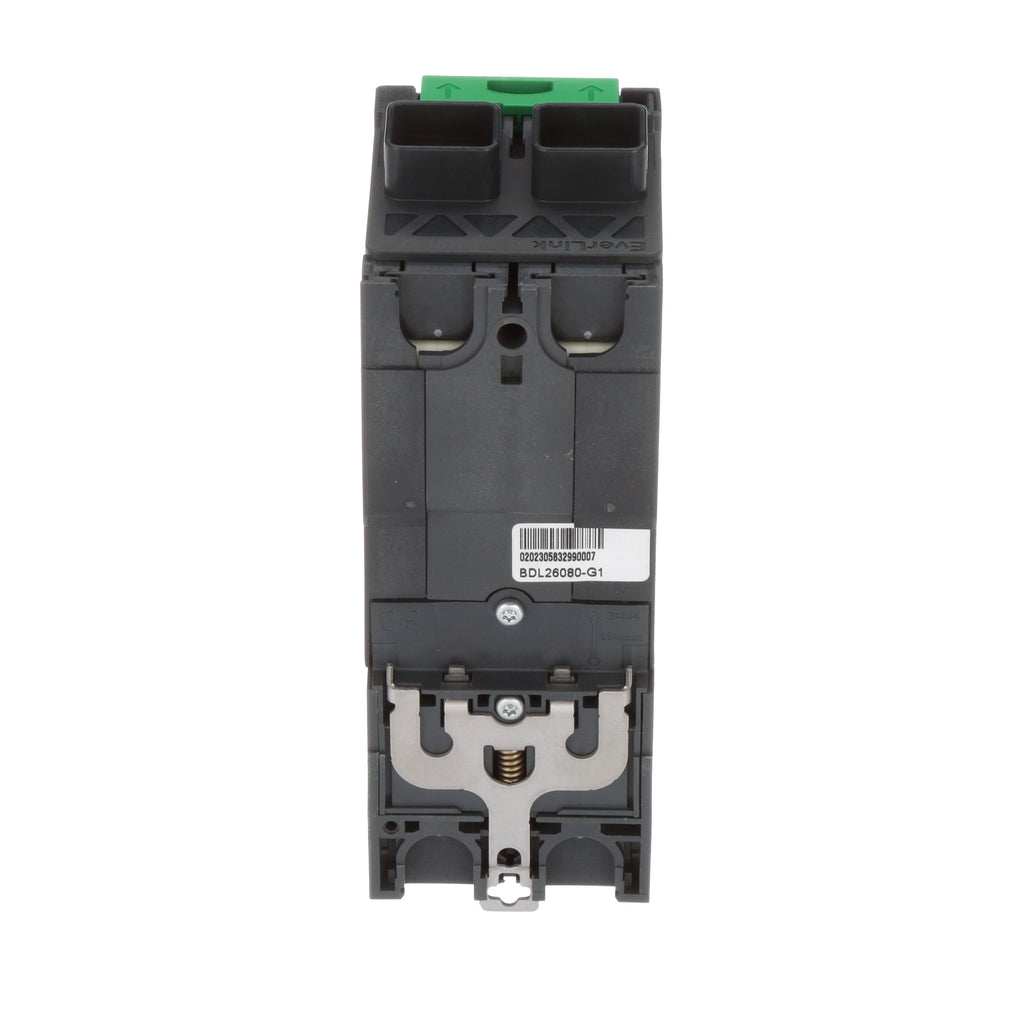

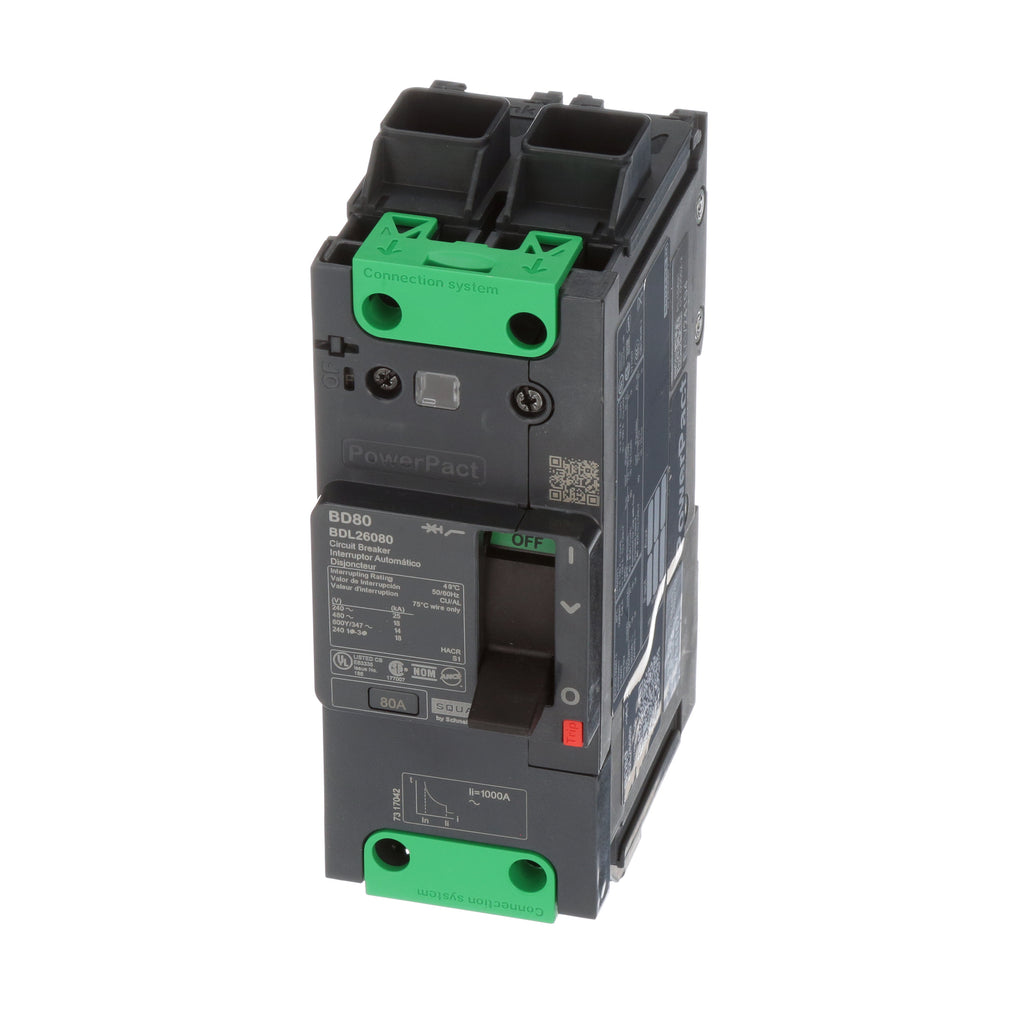

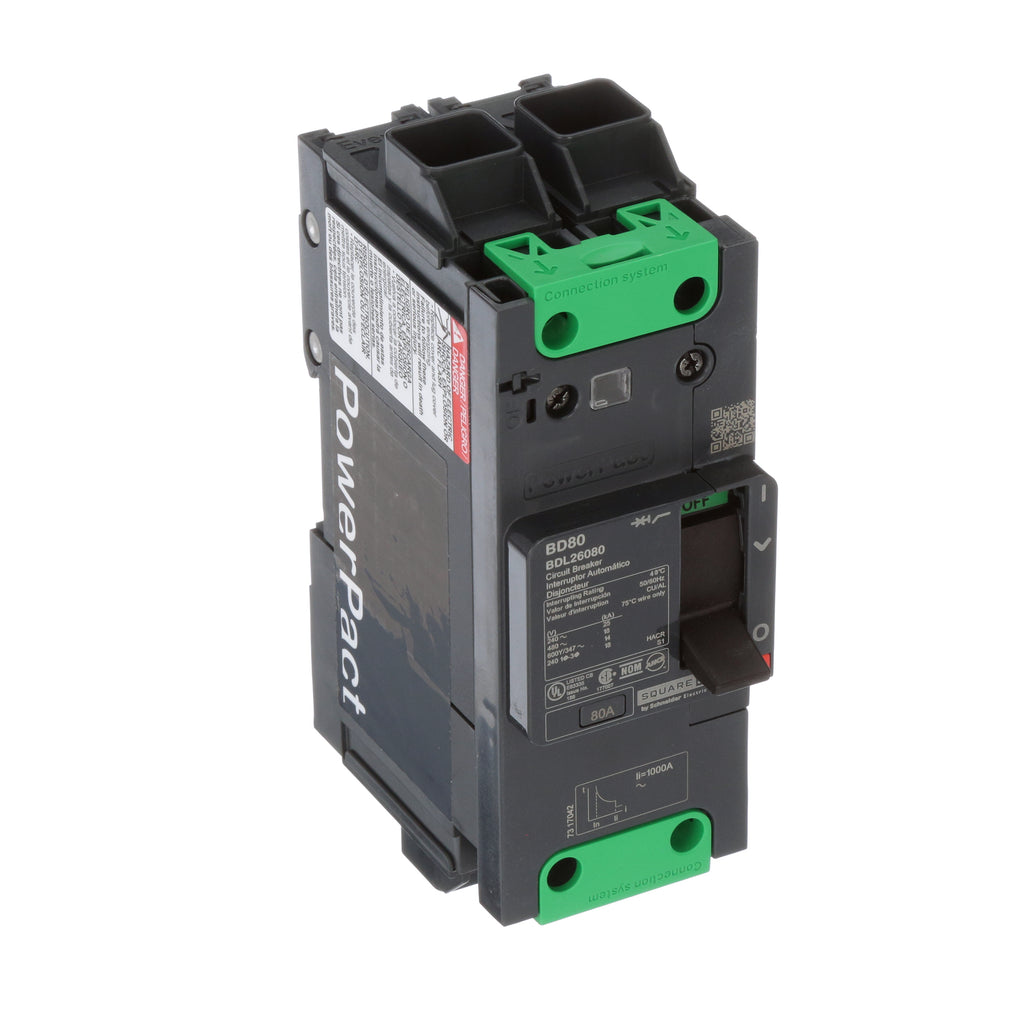

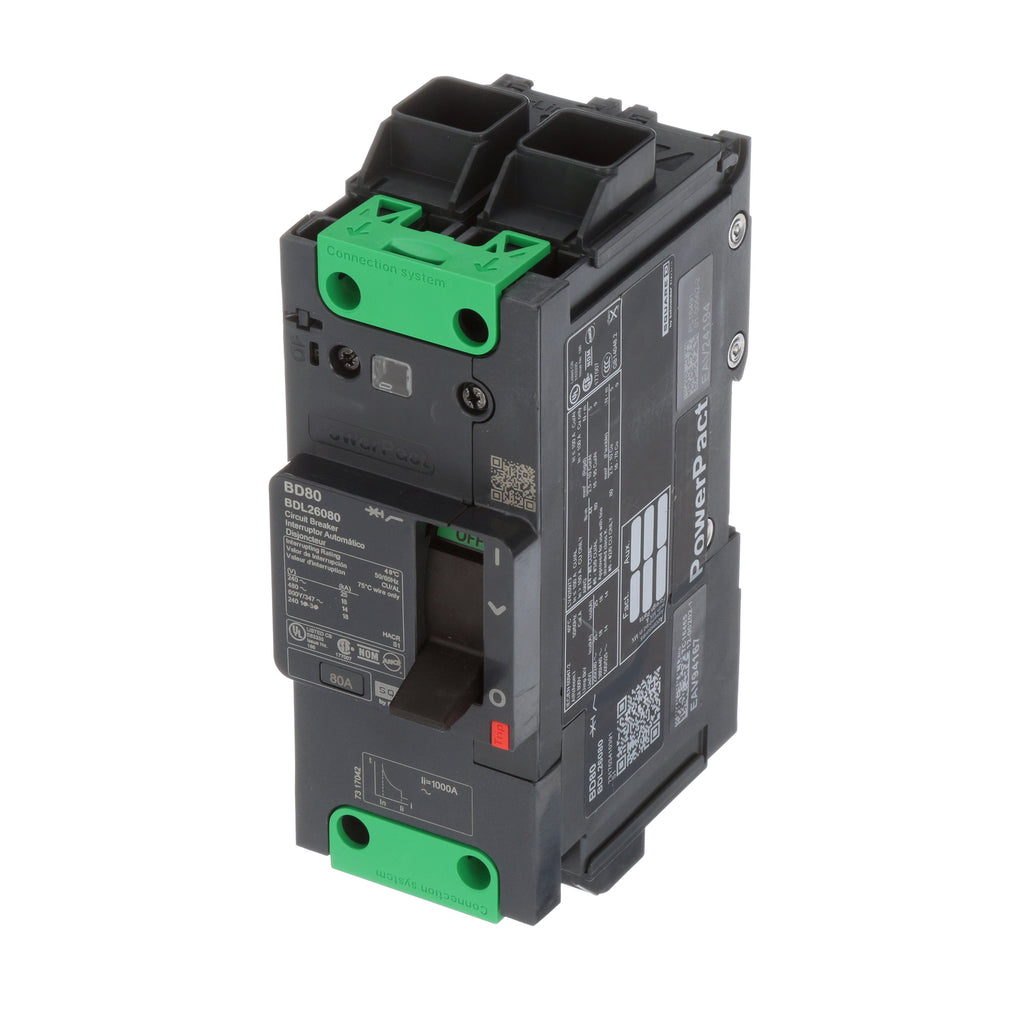

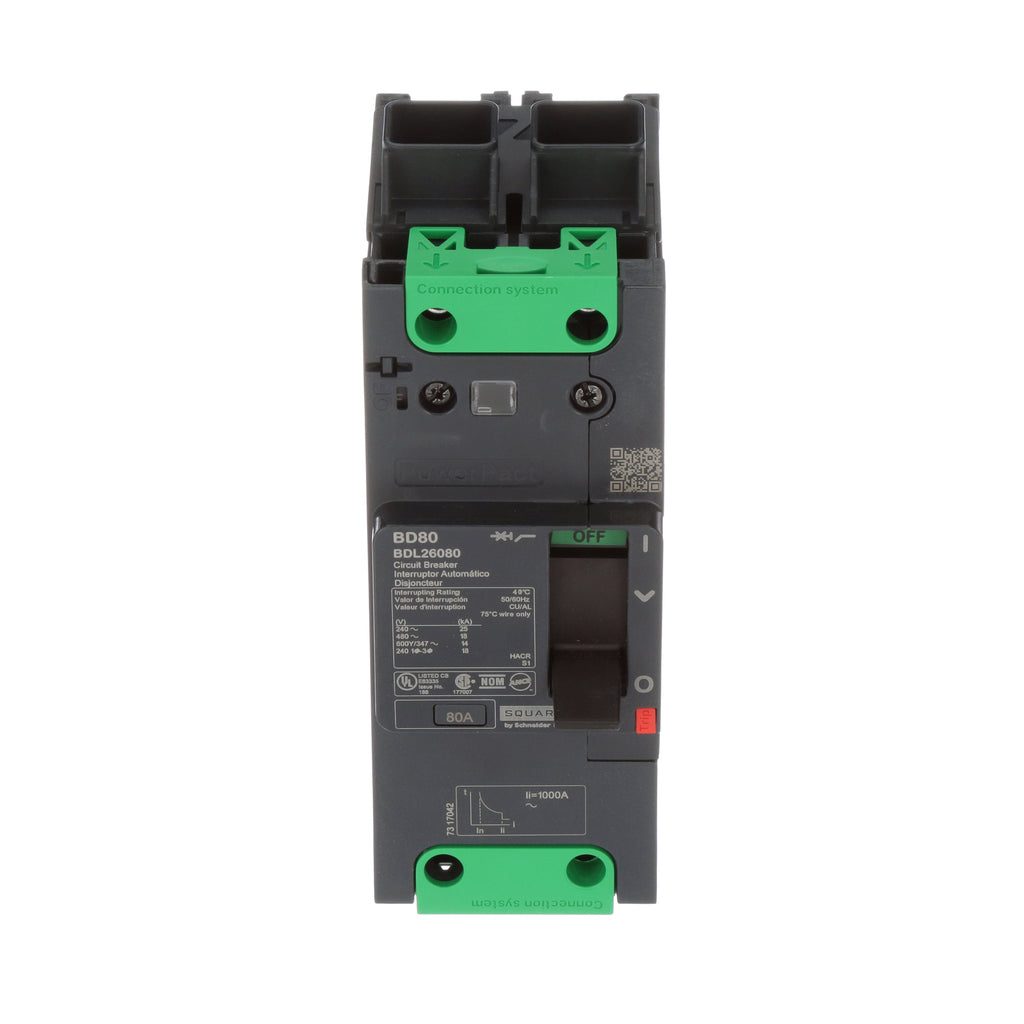

BDL26080 is a Schneider Electric PowerPact B-frame molded case circuit breaker designed for reliable circuit protection.This 2-pole circuit breaker is rated for 80 amps continuous current and operates at 600Y/347VAC with a breaking capacity of 14kA. It features a thermal magnetic trip unit and lug-type terminations. The compact B-frame design offers a small footprint suitable for various mounting configurations and control panel applications. It is certified to multiple standards and built for durability with a NEMA AB4/IP40 enclosure.

• Amperage: 80A
• Voltage: 600Y/347VAC
• Poles: 2
• Interrupt Rating: 14kA at 600Y/347VAC
• Frame/Series: PowerPact B
• Trip Unit: Thermal Magnetic
• Mounting Type: Unit mount compatible
• Enclosure: NEMA AB4/IP40
• Terminations: Lugs
• Continuous Current Rating: 80%
• Certifications: Multiple global standards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL26080
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 606481152919
• GTIN : 03606480000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1.695
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-2, GB 14048.2, EN/IEC 60947-5-1, NMX J-266, CSA C22.2 No 5, UL 489, NEMA AB1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
