BDL26070 - Schneider Electric 70A 600Y/347VAC 2 Pole PowerPact B Thermal Magnetic Circuit Breaker

BDL26070

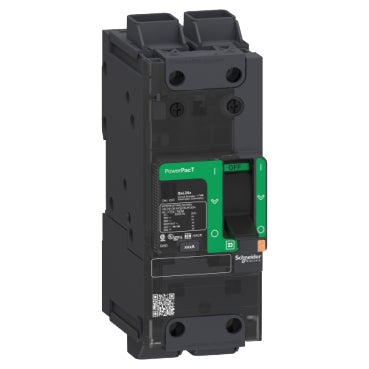

BDL26070 is a 2 pole, 70 amp PowerPact B molded case circuit breaker by Schneider Electric designed for reliable circuit protection.This thermal magnetic circuit breaker features a 600Y/347 VAC voltage rating and a 14 kA interrupt rating. It is unit mount with integrated DIN rail and back pan mounting capability, suitable for industrial control panels and commercial electrical distribution. The breaker offers 80% continuous current rating and is UL, CSA, NOM, IEC, CCC certified, and CE marked.

• Amperage: 70A
• Voltage Rating: 600Y/347 VAC
• Poles: 2
• Interrupt Rating: 14 kA at 600Y/347 VAC
• Breaker Type: Thermal Magnetic
• Mounting Type: Unit mount with DIN rail and back pan
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Certifications: UL, CSA, NOM, IEC, CCC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL26070
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 606481152902
• GTIN : 03606480000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.07
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, EN/IEC 60947-5-1, CSA C22.2 No 5, UL 489, GB 14048.2, EN/IEC 60947-2, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
