BDL26060 - Schneider Electric PowerPact B Molded Case Circuit Breaker, 60A, 2 Pole, 600Y/347VAC, 14kA Interrupt, Thermal Magnetic Trip, Unit Mount, CSA/UL/CE Certified

BDL26060

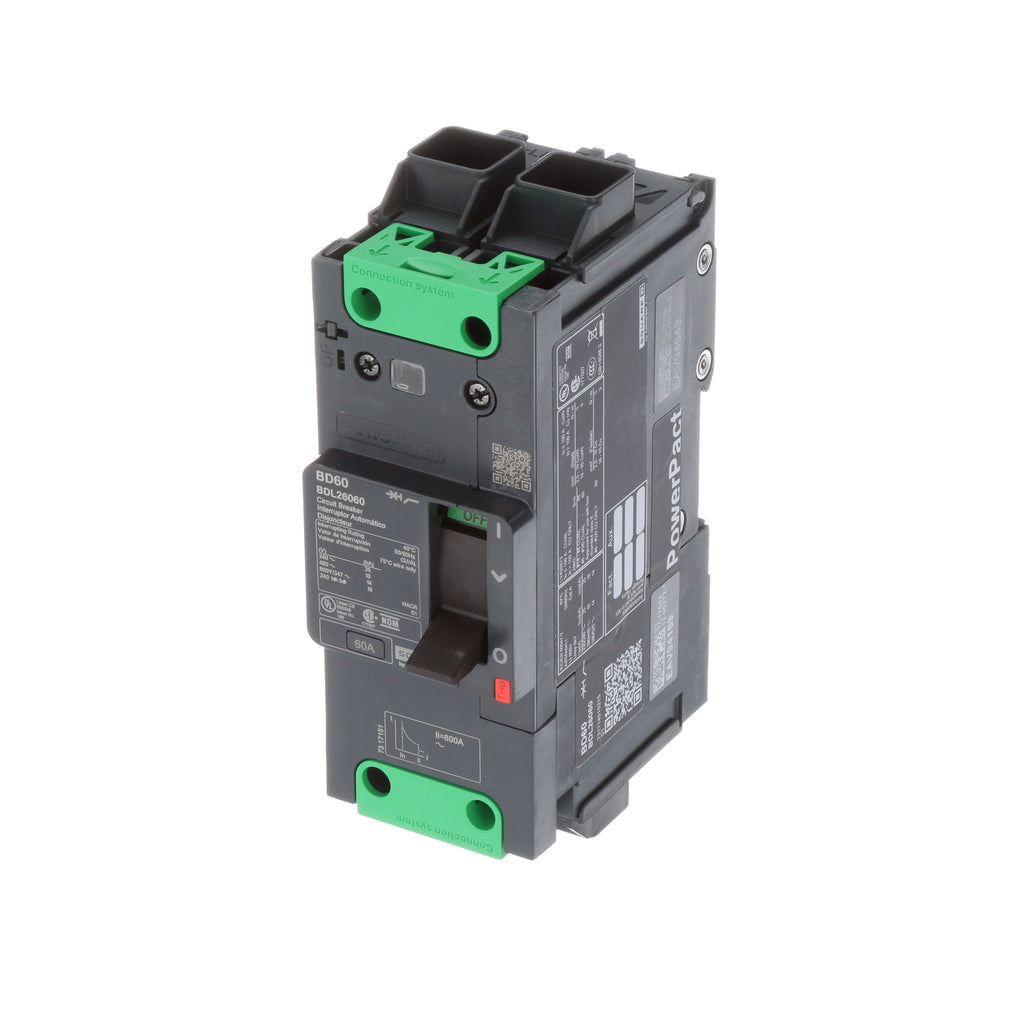

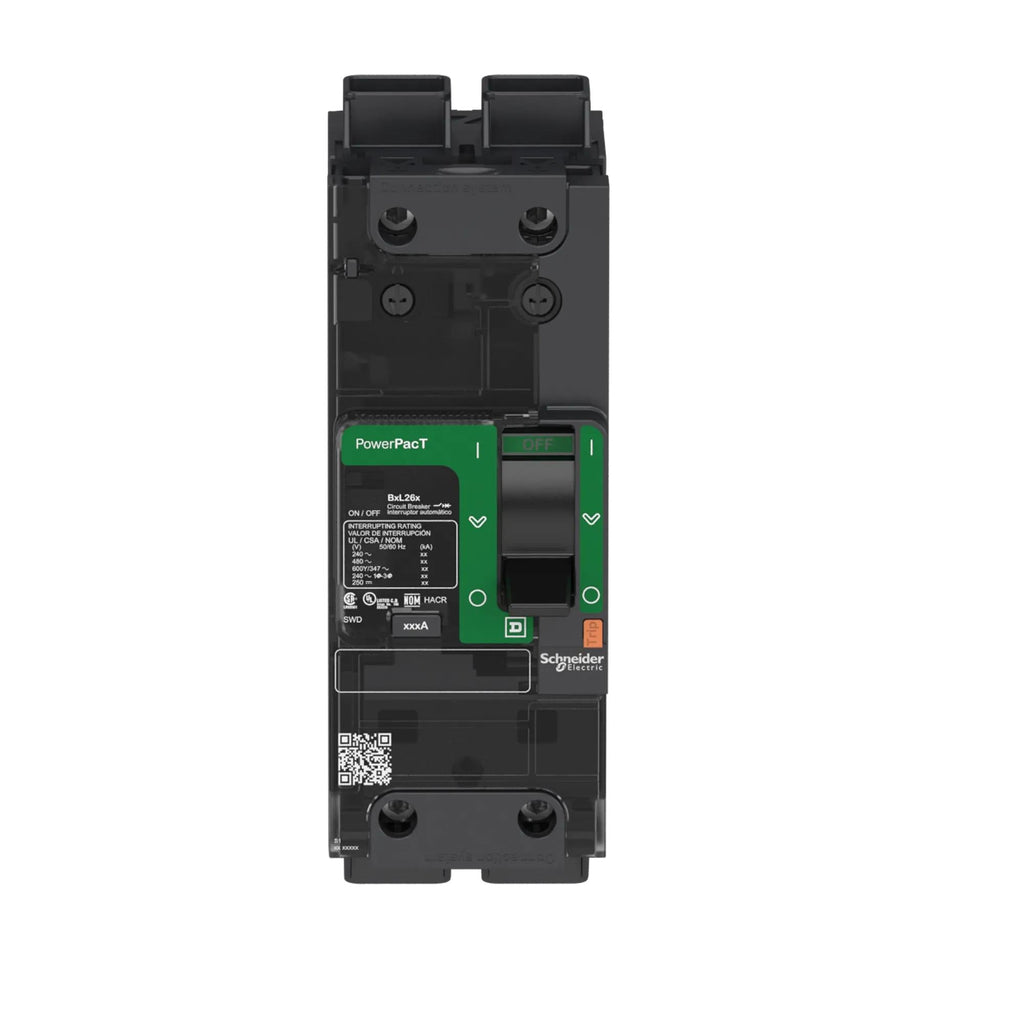

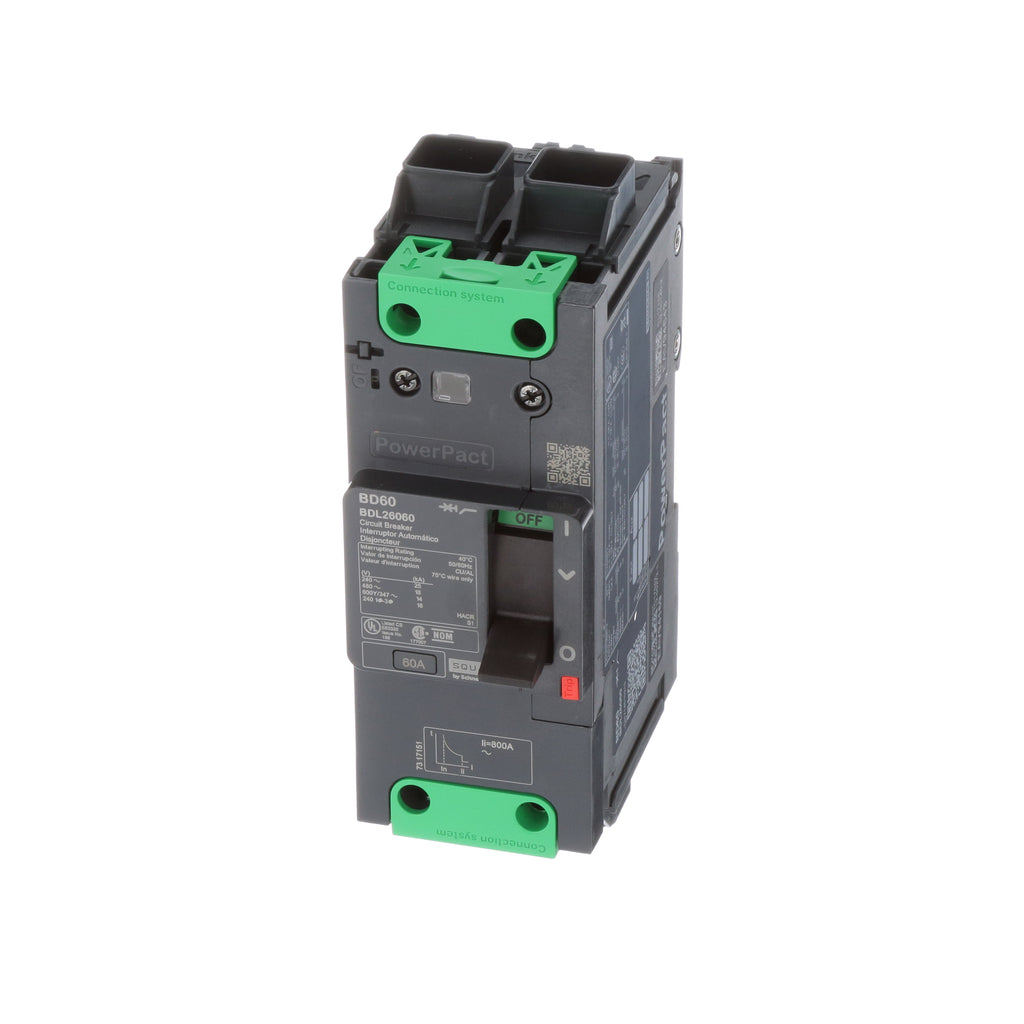

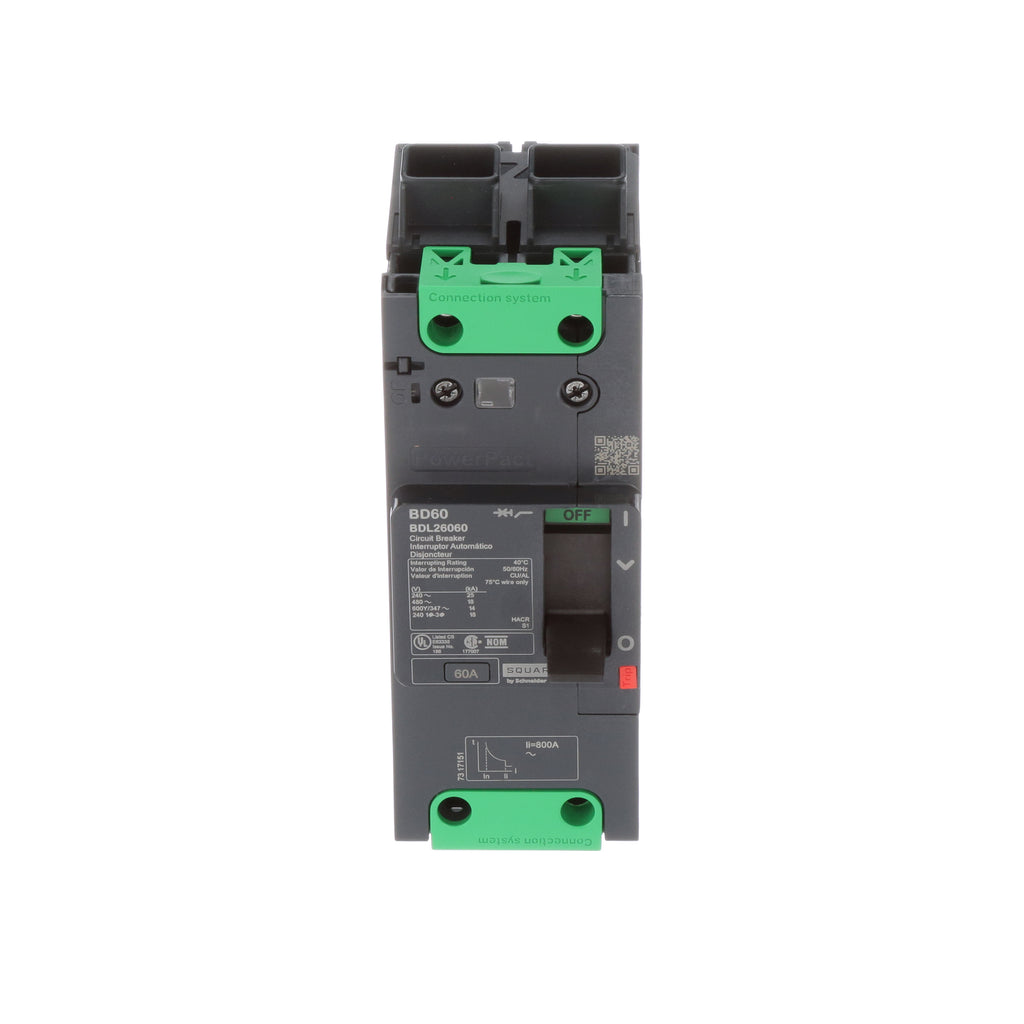

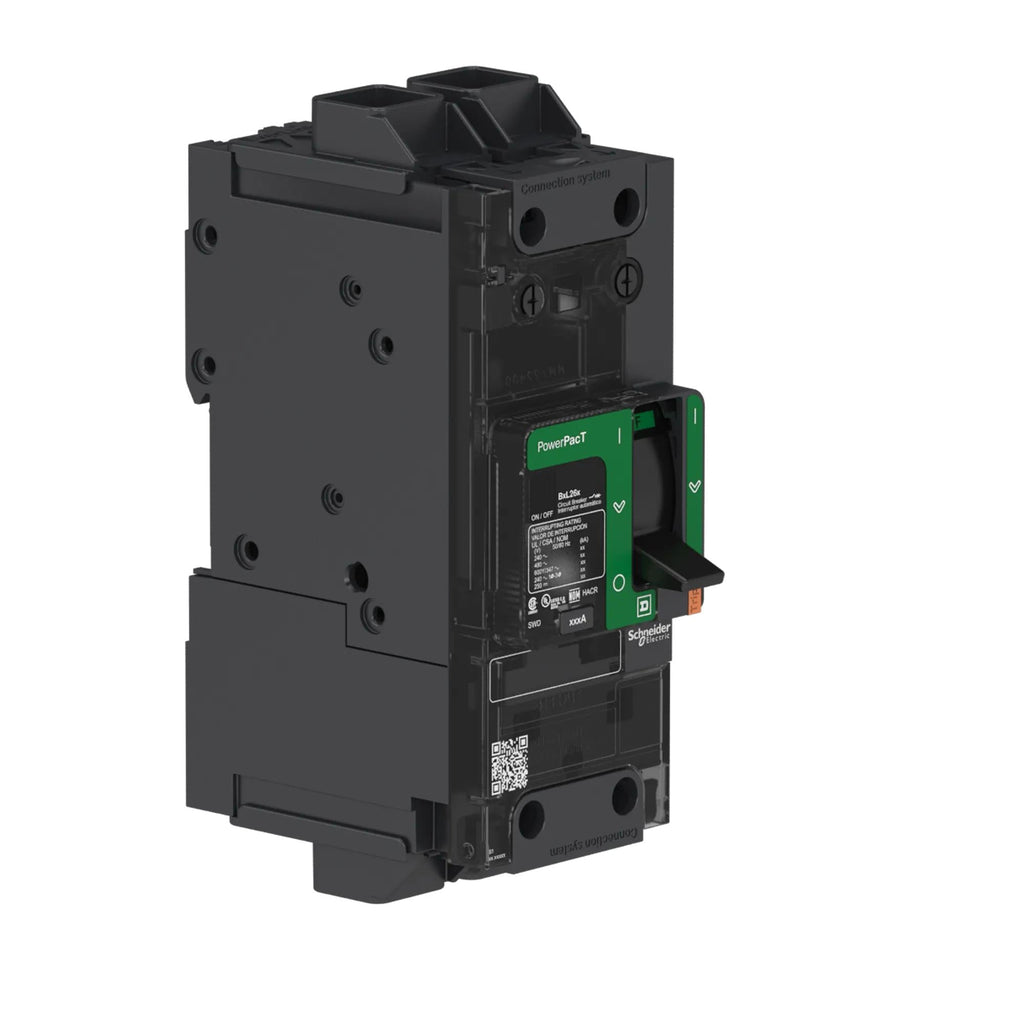

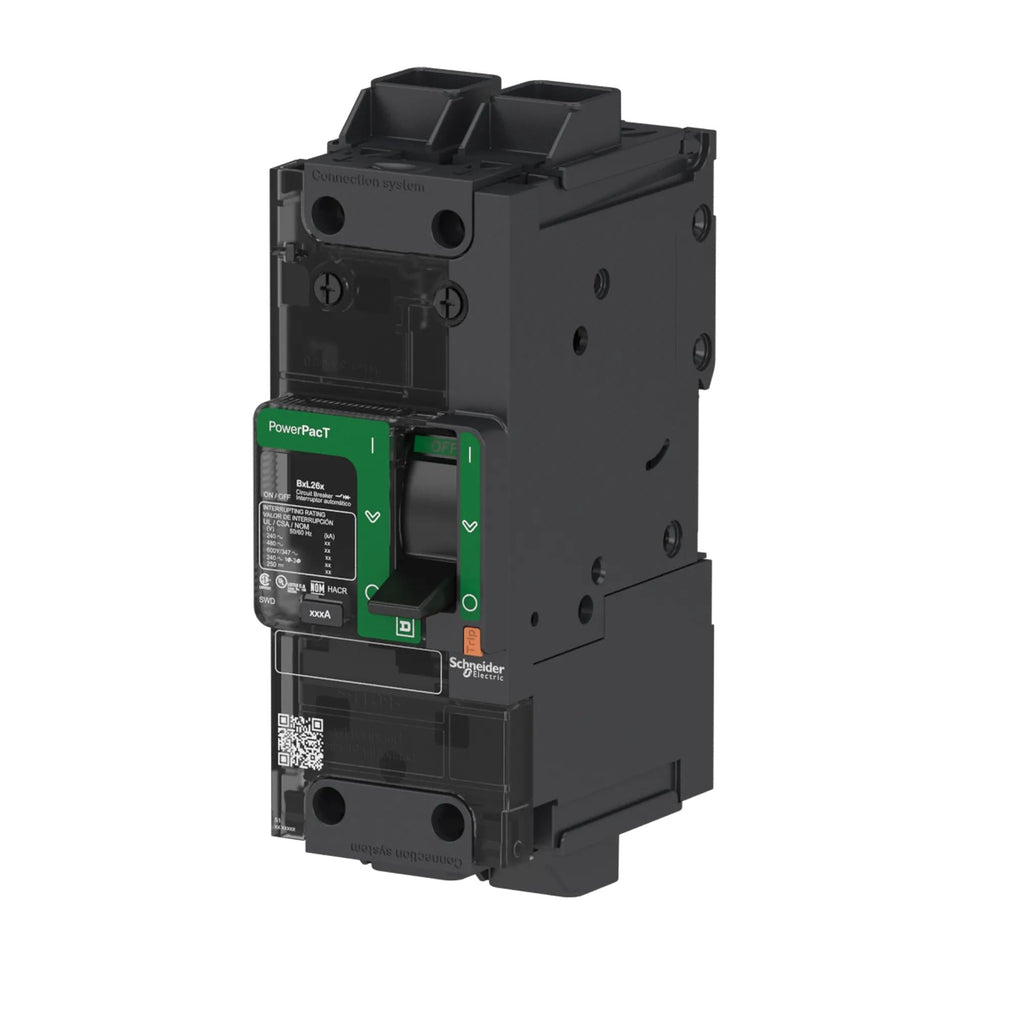

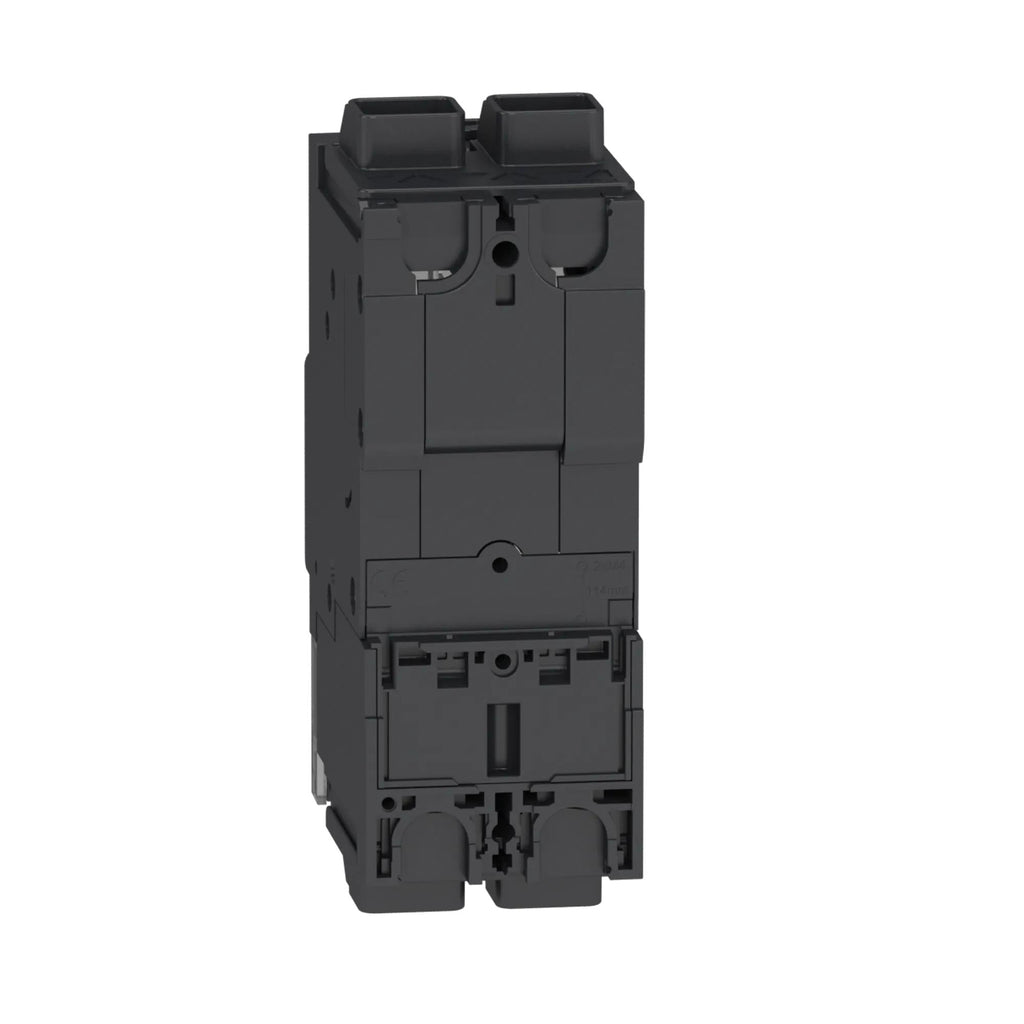

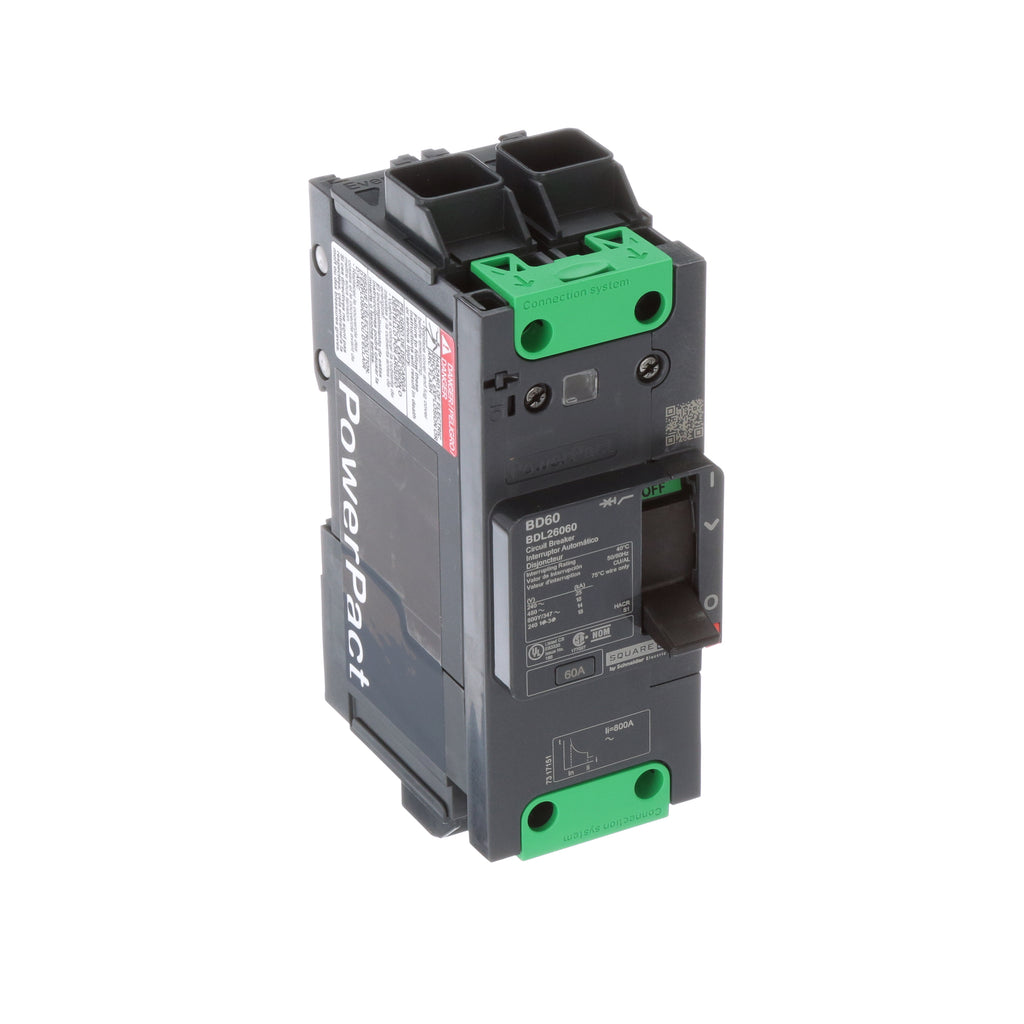

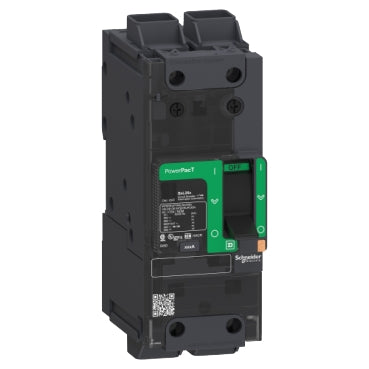

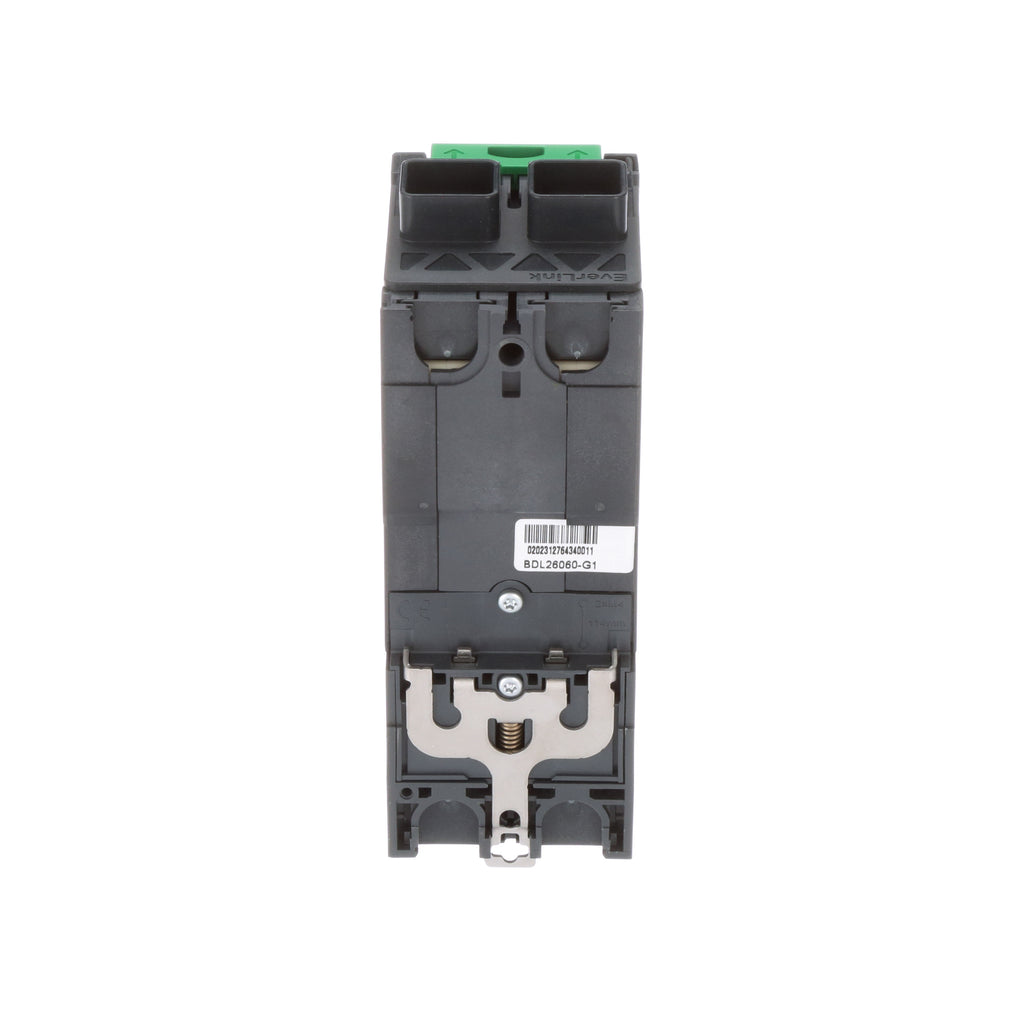

BDL26060 is a Schneider Electric PowerPact B molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This 2-pole breaker features a 60A amperage rating, 600Y/347VAC voltage, and a 14kA interrupting capacity. It is equipped with a thermal magnetic trip unit for precise overload and short-circuit protection, and is available for unit mounting. The BDL26060 is dual rated for AC/DC applications and supports a wide range of accessories and lug connections for flexible installation.

Key Specifications
• Part Number: BDL26060
• Manufacturer: Schneider Electric
• Category: Molded Case Circuit Breaker
• Amperage: 60A
• Voltage: 600Y/347VAC, 250VDC
• Poles: 2
• Mounting Type: Unit Mount
• Interrupt Rating: 14kA at 600Y/347VAC (also available in 10kA and 25kA versions)
• Series/Frame: PowerPact B
• Trip Unit: Thermal Magnetic
• Certifications: CSA, UL 489, CE, CCC, EAC, EN/IEC 60947-2, GB 14048.2, NOM
• Frequency: 50/60 Hz
• Continuous Current Rating: 80%

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL26060
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901024590
• GTIN : 03606481152886
• Country of Origin : Mexico

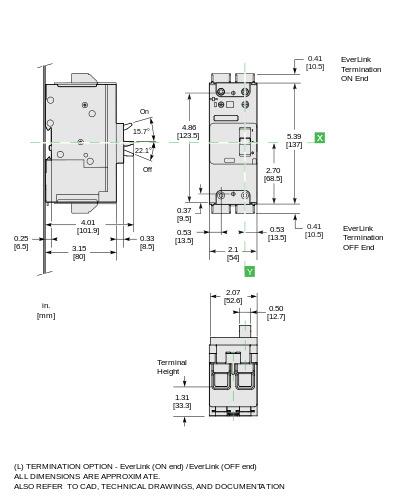

• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.17
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NMX J-266, NEMA AB1, EN/IEC 60947-2, UL 489, GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
