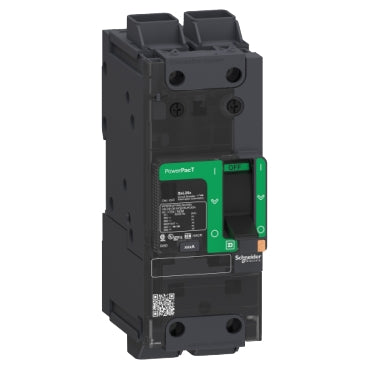

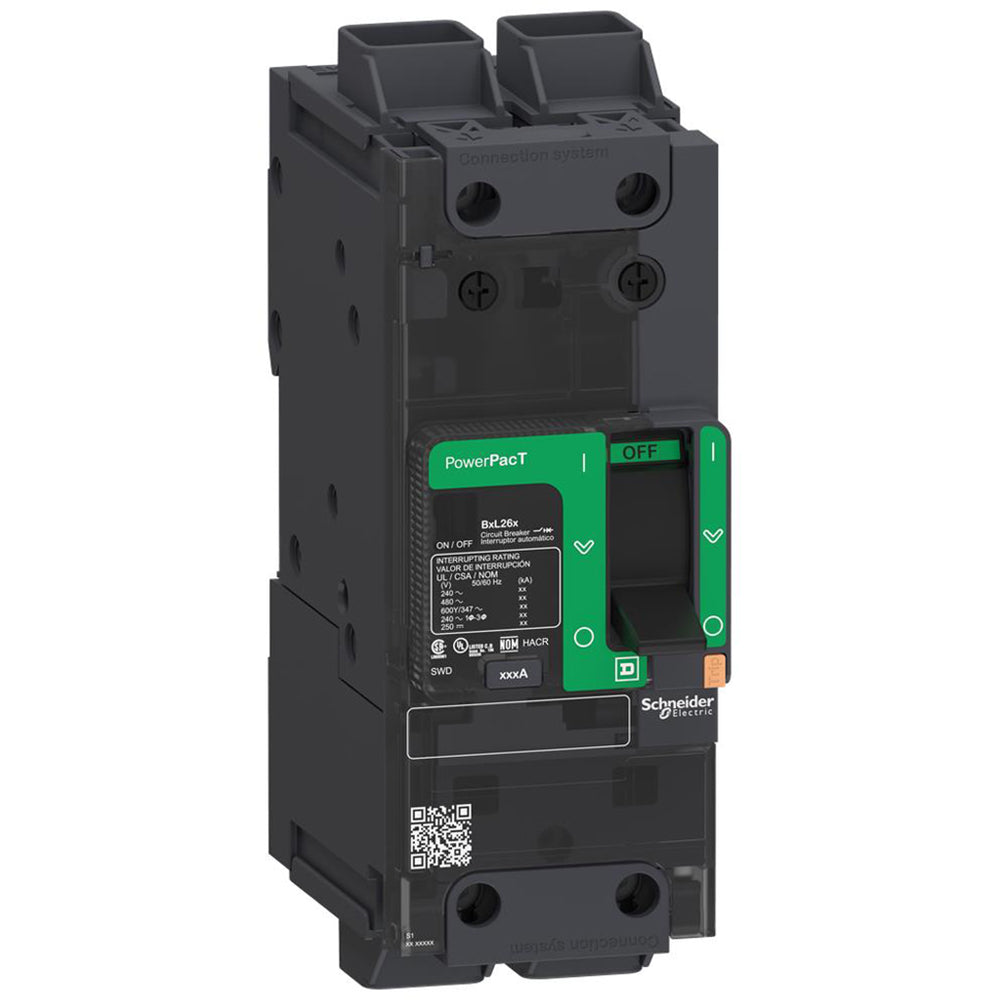

BDL26050 - Schneider Electric PowerPacT B 50A 2-Pole 600Y/347VAC Thermal Magnetic Circuit Breaker 14kA Interrupt Rating

BDL26050

BDL26050 is a Schneider Electric PowerPacT B series 50 amp, 2-pole circuit breaker designed for reliable thermal magnetic protection.This circuit breaker features a 600Y/347VAC voltage rating with a 14kA interrupt rating, suitable for heavy-duty applications. It includes lug-type connections and supports an 80% continuous current rating. The breaker is designed for unit mount with integrated DIN rail and back pan mounting capability. It is UL, CSA, NOM, IEC, CCC certified, and CE marked, ensuring compliance with international safety standards.

Key Specifications
• Amperage: 50A
• Voltage Rating: 600Y/347VAC
• Poles: 2
• Breaker Type: Thermal Magnetic
• Interrupt Rating: 14kA
• Mounting Type: Unit mount with DIN rail and back pan
• Trip Unit: Thermal Magnetic
• Continuous Current Rating: 80%
• Connection Type: Lugs
• Certifications: UL, CSA, NOM, IEC, CCC, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL26050
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 606481152872
• GTIN : 03606480000000
• Country of Origin : United States
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.2
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-5-1, UL 489, NMX J-266, EN/IEC 60947-2, NEMA AB1, GB 14048.2, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
