BDL26045 - Square D PowerPacT B 45A 2 Pole 600Y/347VAC Thermal Magnetic Circuit Breaker 14kA

SKU: BDL26045-New
Condition: New
Price:
$438.59
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

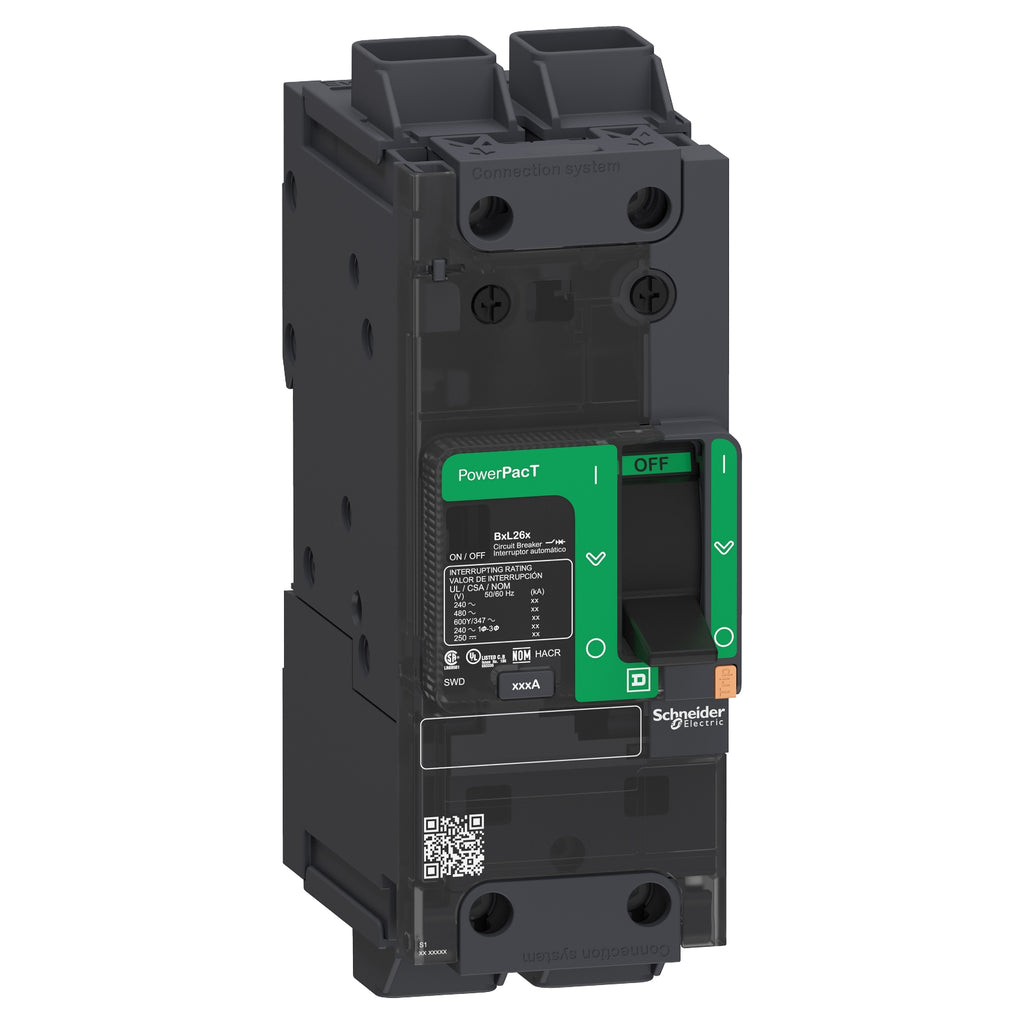

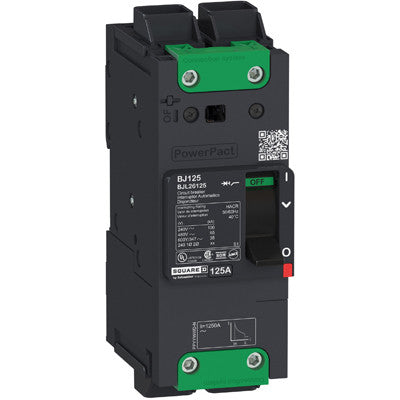

BDL26045 - Essential Electric Supply
BDL26045 - Square D Feed-Thru 600V 45A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

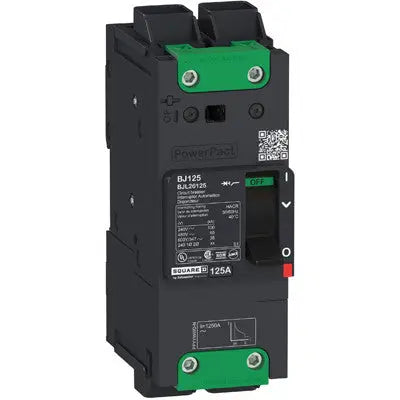

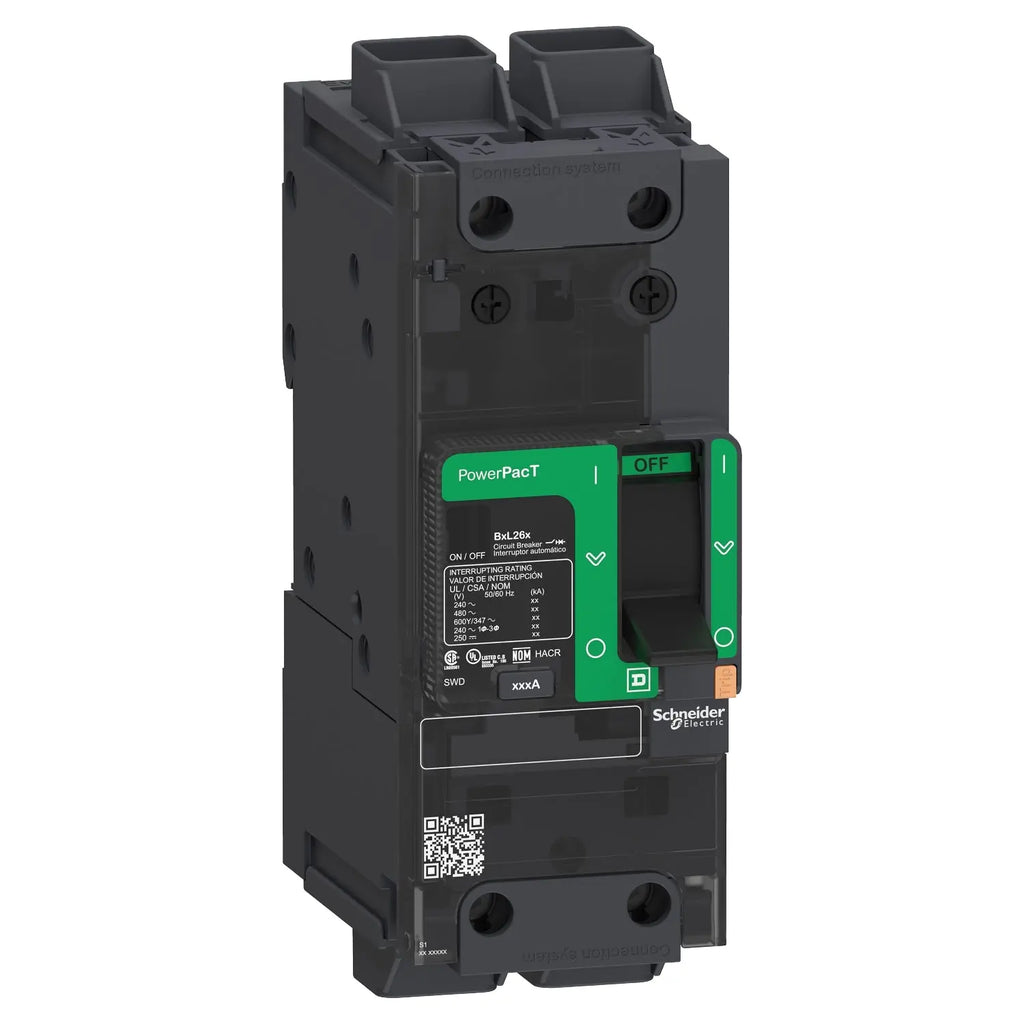

BDL26045 - Essential Electric Supply
BDL26045 - Square D Feed-Thru 600V 45A 2 pole circuit breaker 18kA@480V - Essential Electric Supply

Description

BDL26045


BDL26045 is a Square D PowerPacT B series circuit breaker rated for 45 amps and 2 poles, designed for 600Y/347VAC applications with thermal magnetic trip unit.This circuit breaker features a 14kA interrupting rating at 600Y/347VAC, suitable for protecting electrical circuits with reliable thermal magnetic trip technology. It includes lug connections and is 80% rated for continuous load capacity. The breaker is designed for use in PowerPacT B frames and meets industry certifications for safety and performance.
  • Amperage: 45A
  • Voltage: 600Y/347VAC
  • Poles: 2
  • Interrupt Rating: 14kA
  • Trip Unit: Thermal Magnetic
  • Mounting Type: PowerPacT B Frame
  • Connection Type: Lug
  • Continuous Load Rating: 80%
  • Series: PowerPacT B
  • Certifications: Industry standard safety certifications
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDL26045
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDL
  • Voltage : 600
  • Amperage : 45
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : Everlink Lug Both Ends
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 785901072010
  • GTIN : 00785901072010
  • Country of Origin : United States
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 2.006
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : NEMA AB1, EN/IEC 60947-5-1, CSA C22.2 No 5, EN/IEC 60947-2, NMX J-266, UL 489, GB 14048.2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper
