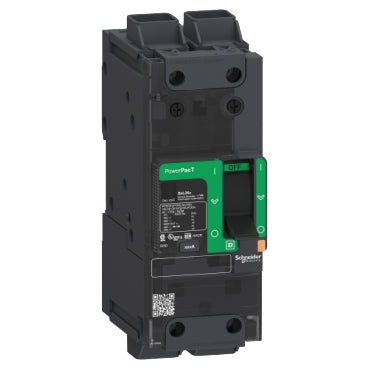

BDL26035 - Schneider Electric PowerPact B 35A 2 Pole Thermal Magnetic Circuit Breaker 600Y/347VAC 14kA

BDL26035

BDL26035 is a PowerPact B-Frame molded case circuit breaker designed for reliable thermal magnetic protection in commercial and industrial power distribution systems. This 2-pole breaker features a 35A current rating, 600Y/347VAC voltage rating, and a 14kA interrupt rating at 600VAC, making it suitable for a wide range of applications. The breaker is equipped with lugs for secure connections and is rated at 80% for continuous load applications. Engineered for durability and safety, the BDL26035 is part of Schneider Electric's PowerPact B series, known for robust performance and compliance with industry standards. It is suitable for both AC and DC applications and offers dual-rated interrupt capacity for flexible installation.

• Part Number: BDL26035
• Manufacturer: Schneider Electric
• Series/Frame: PowerPact B
• Amperage: 35A
• Poles: 2
• Voltage Rating: 600Y/347VAC
• Interrupt Rating: 14kA @ 600VAC
• Mounting Type: Unit Mount
• Trip Unit: Thermal Magnetic
• Continuous Load Rating: 80%
• Connection Type: Lugs
• Standards: UL 489, CSA 22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL26035
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 35
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 606481152858
• GTIN : 03606480000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.19
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NMX J-266, UL 489, NEMA AB1, GB 14048.2, EN/IEC 60947-2, CSA C22.2 No 5, EN/IEC 60947-5-1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
