BDL26030 - Schneider Electric PowerPact B 30A 2-Pole 600Y/347VAC 14kA Thermal-Magnetic Circuit Breaker

Save $352.56
SKU: BDL26030-New
Condition: New
Price:
$430.44 $783.00
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

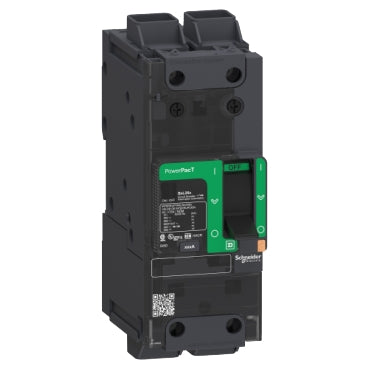

BDL26030 - Schneider Electric Feed-Thru 600V 30A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
BDL26030 - Schneider Electric Feed-Thru 600V 30A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
BDL26030 - Schneider Electric Feed-Thru 600V 30A 2 pole circuit breaker 18kA@480V - Essential Electric Supply
BDL26030 - Schneider Electric Feed-Thru 600V 30A 2 pole circuit breaker 18kA@480V - Essential Electric Supply

Description

BDL26030


BDL26030 is a Schneider Electric PowerPact B series circuit breaker rated for 30 amps and 2 poles, designed for 600Y/347VAC applications with a 14kA interrupt rating.BDL26030 features a thermal-magnetic trip unit and is suitable for unit mount installations with integrated DIN rail and back pan mounting capability. It is UL, CSA, NOM, IEC, CCC certified, and CE marked, ensuring compliance with multiple international standards.
  • Amperage: 30A
  • Voltage: 600Y/347VAC
  • Poles: 2
  • Interrupt Rating: 14kA
  • Trip Unit: Thermal-magnetic
  • Mounting Type: Unit mount with DIN rail and back pan
  • Series/Frame: PowerPact B
  • Certifications: UL, CSA, NOM, IEC, CCC, CE
  • Continuous Current Rating: 80%
  • Dual rated AC/DC with 3 breaking capacity levels
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: BDL26030
  • Manufacturer : Schneider Electric
  • Brand : Schneider Electric
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : BDL
  • Voltage : 600
  • Amperage : 30
  • Phase : 1
  • Poles : 2
  • AIC rating : 18kA@480V
  • Connection : Feed-Thru
  • Functions : Long Time and Instantaneous
  • Terminal Connection : Everlink Lug Both Ends
  • Frame Size : 125A/BD
  • Temp Rating : -13–158 °F (-25–70 °C)
  • MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
  • Breaker Type : Standard
  • Protection : Thermal Magnetic
  • Phase Connection : Not Applicable

Product Data

  • UPC : 606481152827
  • GTIN : 03606480000000
  • Country of Origin : Mexico
  • Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
  • Weight : 2.19
  • Panel Type : Electrical Distribution Equipment, Industrial Control Panels
  • Standards : NEMA AB1, CSA C22.2 No 5, EN/IEC 60947-5-1, NMX J-266, UL 489, GB 14048.2, EN/IEC 60947-2
  • Certification : UL, IEC, CCC, EAC, CSA, NOM
  • Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
    AWG 14...AWG 3/0 rigid or stranded aluminium/copper
