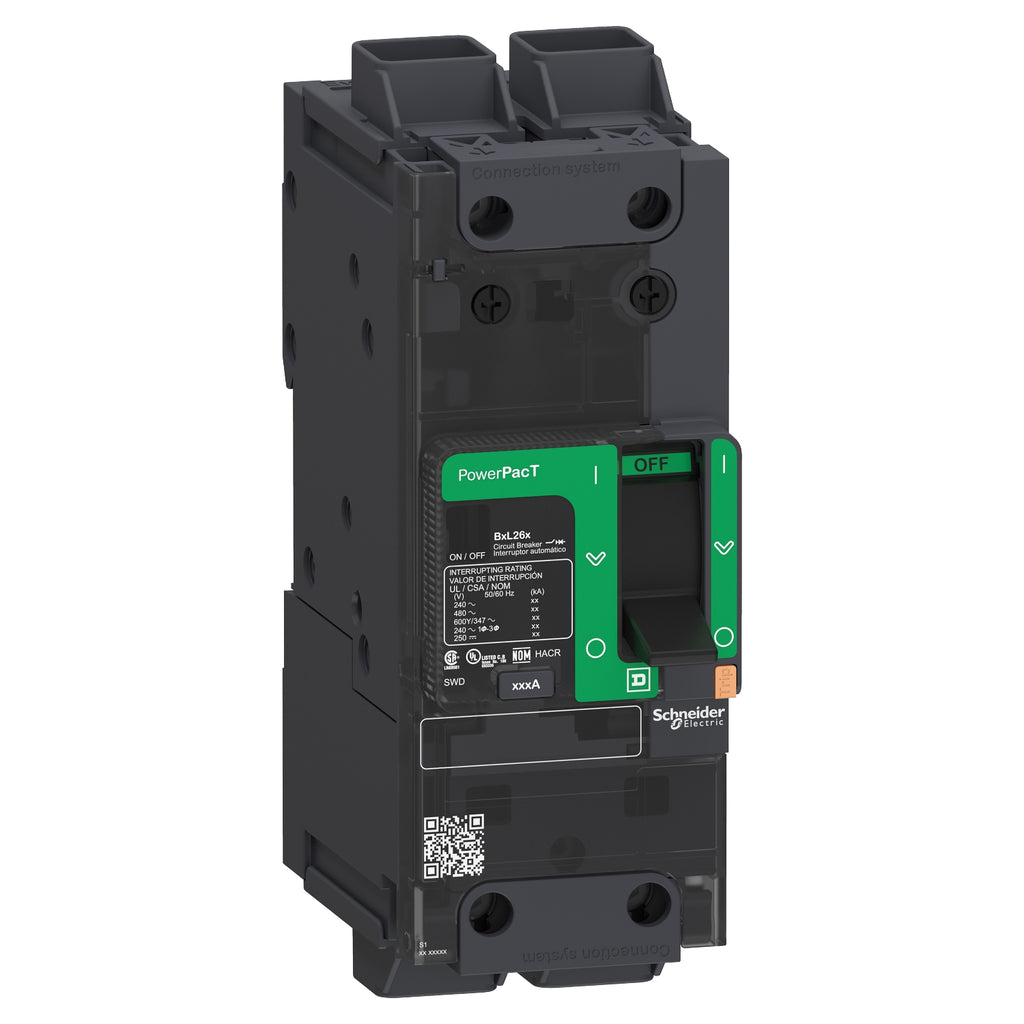

BDL26025 - Schneider Electric PowerPact B 25A 2 Pole Circuit Breaker 600Y/347VAC 14kA Thermal Magnetic

BDL26025

BDL26025 is a Schneider Electric PowerPact B series 25A 2 pole circuit breaker designed for reliable thermal magnetic protection in commercial and industrial applications. This breaker features a 600Y/347VAC voltage rating, 14kA interrupt capacity, and is suitable for DIN rail mounting with UL EverLink lugs for secure connections. It is rated for 80% continuous load and is ideal for use in panelboards and distribution equipment requiring dependable overcurrent protection. This PowerPact B breaker delivers robust performance with a compact design, making it suitable for a wide range of electrical systems. The thermal magnetic trip unit provides both overload and short circuit protection, ensuring safe operation in demanding environments. The breaker is UL listed and meets industry standards for safety and reliability.

• Part Number: BDL26025
• Manufacturer: Schneider Electric
• Series: PowerPact B
• Amperage: 25A
• Poles: 2
• Voltage Rating: 600Y/347VAC
• Interrupt Rating: 14kA at 600Y/347VAC
• Mounting Type: DIN Rail
• Trip Unit: Thermal Magnetic
• Continuous Load Rating: 80%
• Connection Type: UL EverLink Lugs
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL26025
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901037538
• GTIN : 03606481152817
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.2
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : EN/IEC 60947-2, NMX J-266, EN/IEC 60947-5-1, GB 14048.2, UL 489, CSA C22.2 No 5, NEMA AB1
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
