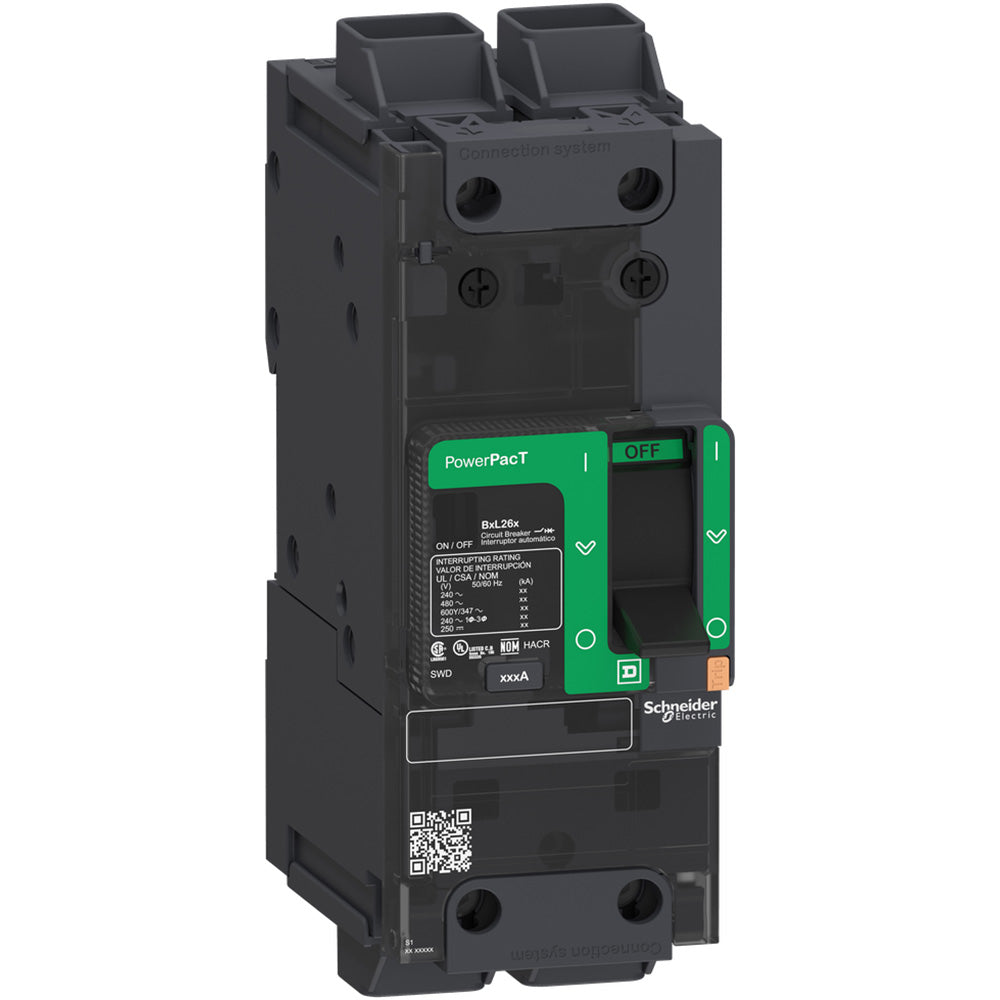

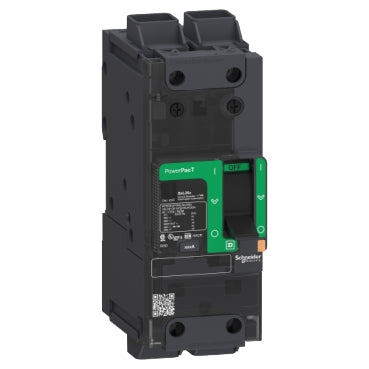

BDL26020 - Schneider Electric 20A 2-Pole 600Y/347VAC PowerPact B Molded Case Circuit Breaker

BDL26020

BDL26020 is a Schneider Electric 20 amp, 2-pole PowerPact B molded case circuit breaker designed for 600Y/347 VAC applications.This thermal magnetic breaker features a 14kA interrupt rating, 80% continuous current rating, EverLink lug connections, and dual-break contacts for reliable circuit protection. It supports both AC and DC voltages and is part of the B frame series, suitable for unit or I-Line mounting.

• Amperage: 20A
• Voltage Rating: 600Y/347 VAC, 250 VDC dual rated
• Number of Poles: 2
• Interrupt Rating: 14kA at 600Y/347 VAC
• Breaker Type: Thermal Magnetic
• Frame/Series: PowerPact B
• Mounting Type: Unit or I-Line mount
• Actuator Type: Toggle
• Continuous Current Rating: 80%
• Electrical Connection: EverLink lug line/load
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: BDL26020
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Everlink Lug Both Ends
• Frame Size : 125A/BD
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG, 6 AWG Max. Wire Size 2 AWG, 3 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 606481152803
• GTIN : 03606480000000
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 2.1 in (54 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 2.18
• Panel Type : Electrical Distribution Equipment, Industrial Control Panels
• Standards : NEMA AB1, NMX J-266, GB 14048.2, CSA C22.2 No 5, EN/IEC 60947-5-1, UL 489, EN/IEC 60947-2
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
