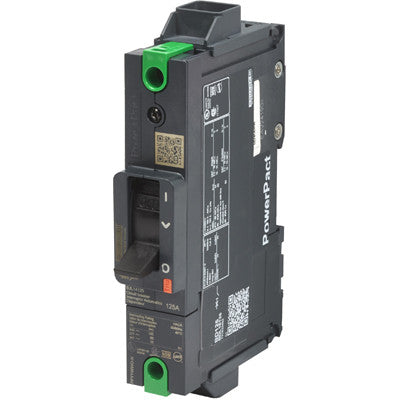

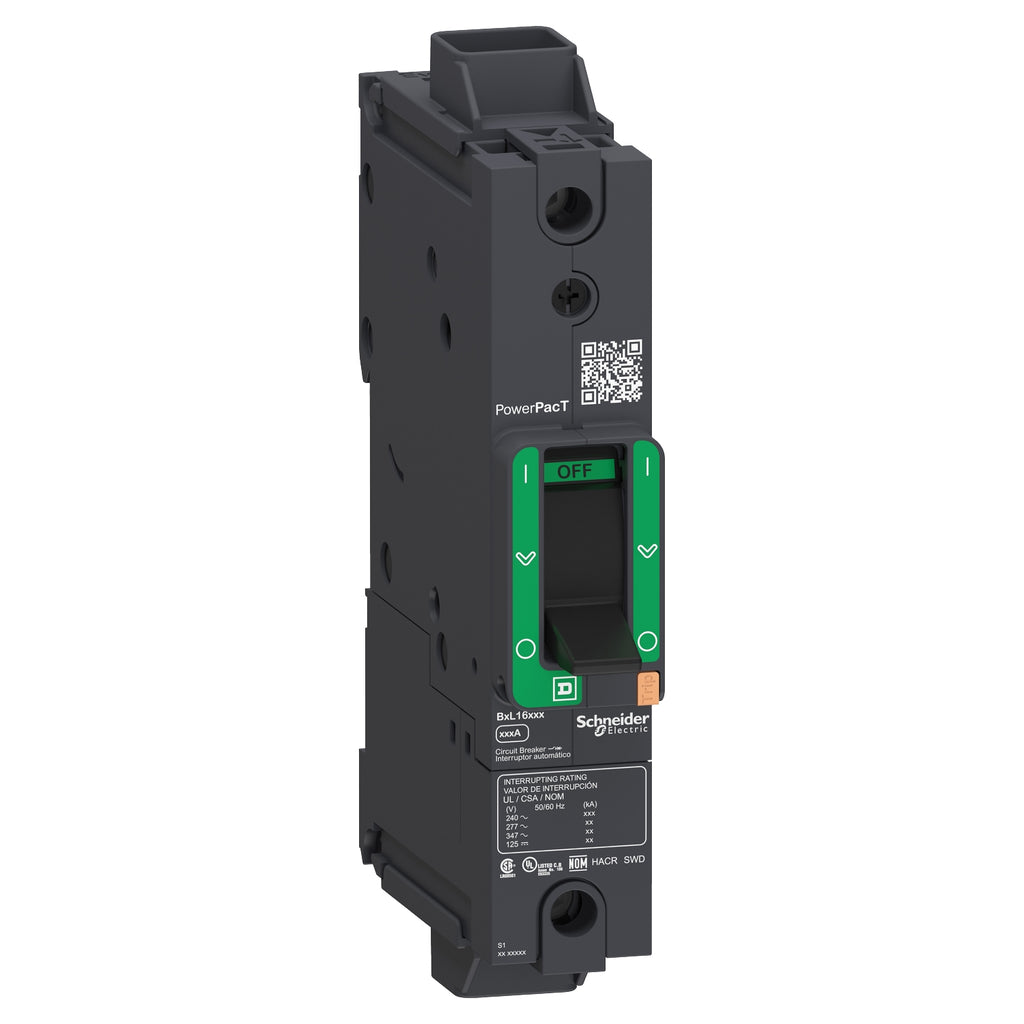

BDL16100 - Square D 100A 1 Pole PowerPact B Molded Case Circuit Breaker 347/600V 25kA Interrupt Rating

BDL16100

BDL16100 is a Square D PowerPact B series molded case circuit breaker rated for 100 amps, 1 pole, and 347/600V AC voltage. This circuit breaker features a thermal magnetic trip unit with an interrupt rating of 25kA at 240V AC, 18kA at 480V AC, and 14kA at 600V AC. It is designed for surface mount or DIN rail mounting and includes EverLink lugs for secure terminal connections. The breaker is HACR rated and mercury and PVC free, suitable for distribution and HVAC applications.

Key Specifications
• Amperage: 100A
• Poles: 1
• Voltage Rating: 347/600V AC
• Interrupt Rating: 25kA at 240V AC, 18kA at 480V AC, 14kA at 600V AC
• Trip Unit: Thermal Magnetic
• Mounting Type: Surface Mount/DIN Rail
• Terminal Connection: EverLink Lugs
• Series/Frame: PowerPact B
• Phase: Single Phase
• HACR Rated: Yes
• Environmental: Mercury Free, PVC Free
• Operating Temperature Range: -13°F to 158°F
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BDL16100
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 60648114857
• GTIN : 03606481148575
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1
• Standards : GB 14048.2, EN/IEC 60947-5-1, UL 489, CSA C22.2 No 5, NEMA AB1, EN/IEC 60947-2, NMX J-266
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
