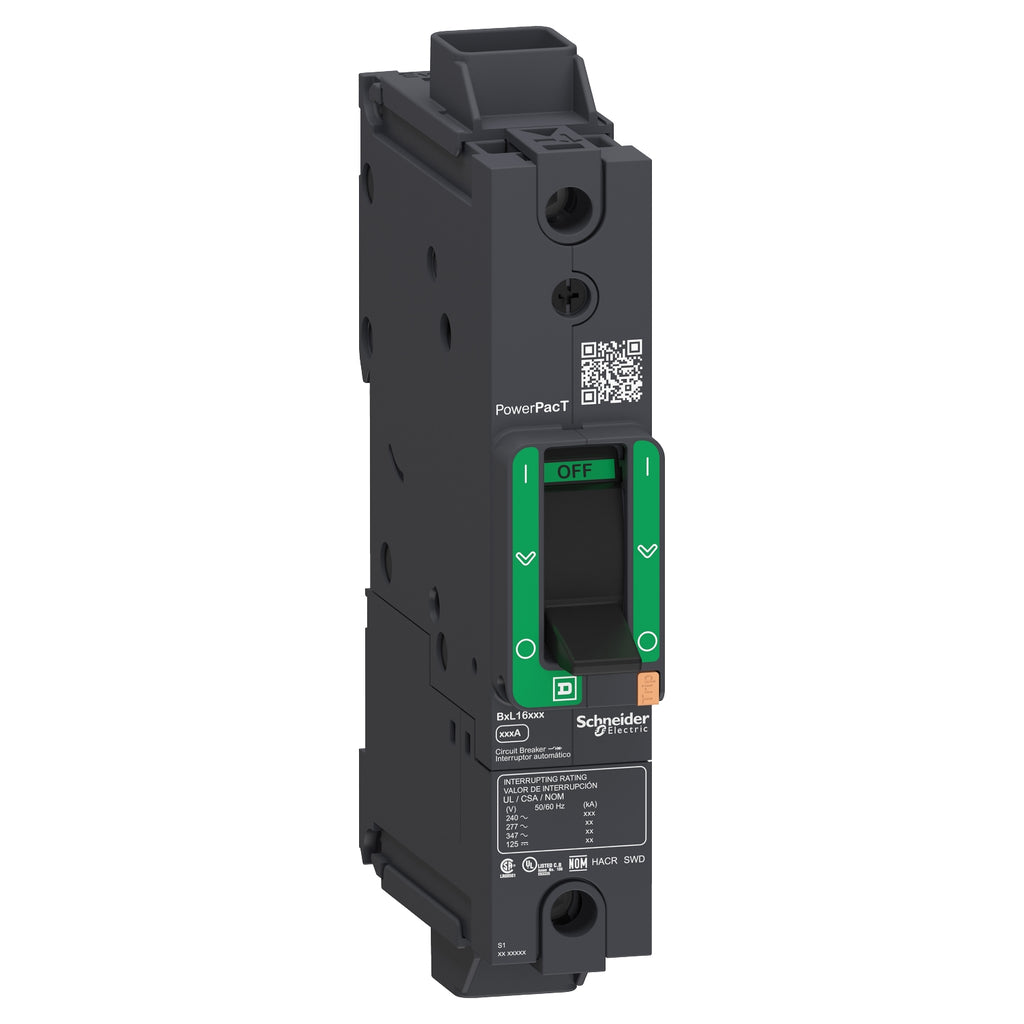

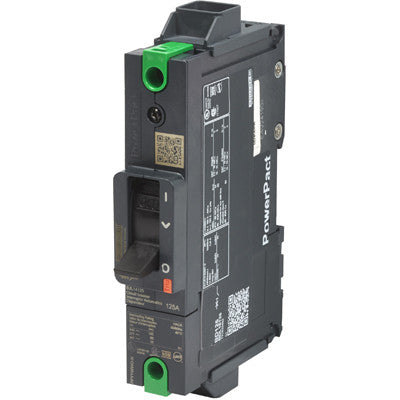

BDL16070 - Schneider Electric PowerPact B-Frame 70A 1-Pole 600Y/347VAC Circuit Breaker

BDL16070

BDL16070 is a Schneider Electric PowerPact B-Frame circuit breaker rated for 70 amps and 600Y/347 volts AC with 1 pole configuration.This circuit breaker features a thermal-magnetic trip unit and is designed for unit mount installation. It has an interrupt rating of 18kA at 600Y/347VAC, providing reliable short-circuit protection. The breaker includes EverLink lugs on both ends for secure connections and complies with multiple certifications including UL and CSA.

Key Specifications
• Manufacturer: Schneider Electric
• Part Number: BDL16070
• Frame/Series: PowerPact B-Frame
• Amperage: 70A
• Voltage Rating: 600Y/347 VAC
• Poles: 1
• Interrupt Rating: 18kA at 600Y/347VAC
• Trip Unit: Thermal-Magnetic
• Mounting Type: Unit Mount
• Connection Type: EverLink lugs both ends
• Certifications: UL, CSA, CCC, EAC, IEC, NOM
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: BDL16070
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : BDL
• Voltage : 600
• Amperage : 70
• Phase : 1
• Poles : 1
• AIC rating : 18kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 606481148547
• Country of Origin : Mexico
• Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
• Weight : 1
• Standards : NMX J-266, GB 14048.2, EN/IEC 60947-2, UL 489, NEMA AB1, EN/IEC 60947-5-1, CSA C22.2 No 5
• Certification : UL, IEC, CCC, EAC, CSA, NOM
• Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
  AWG 14...AWG 3/0 rigid or stranded aluminium/copper
