Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
BDL16060

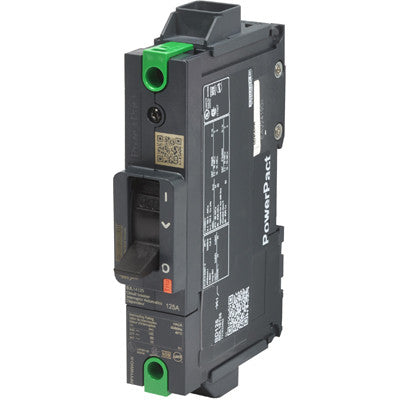

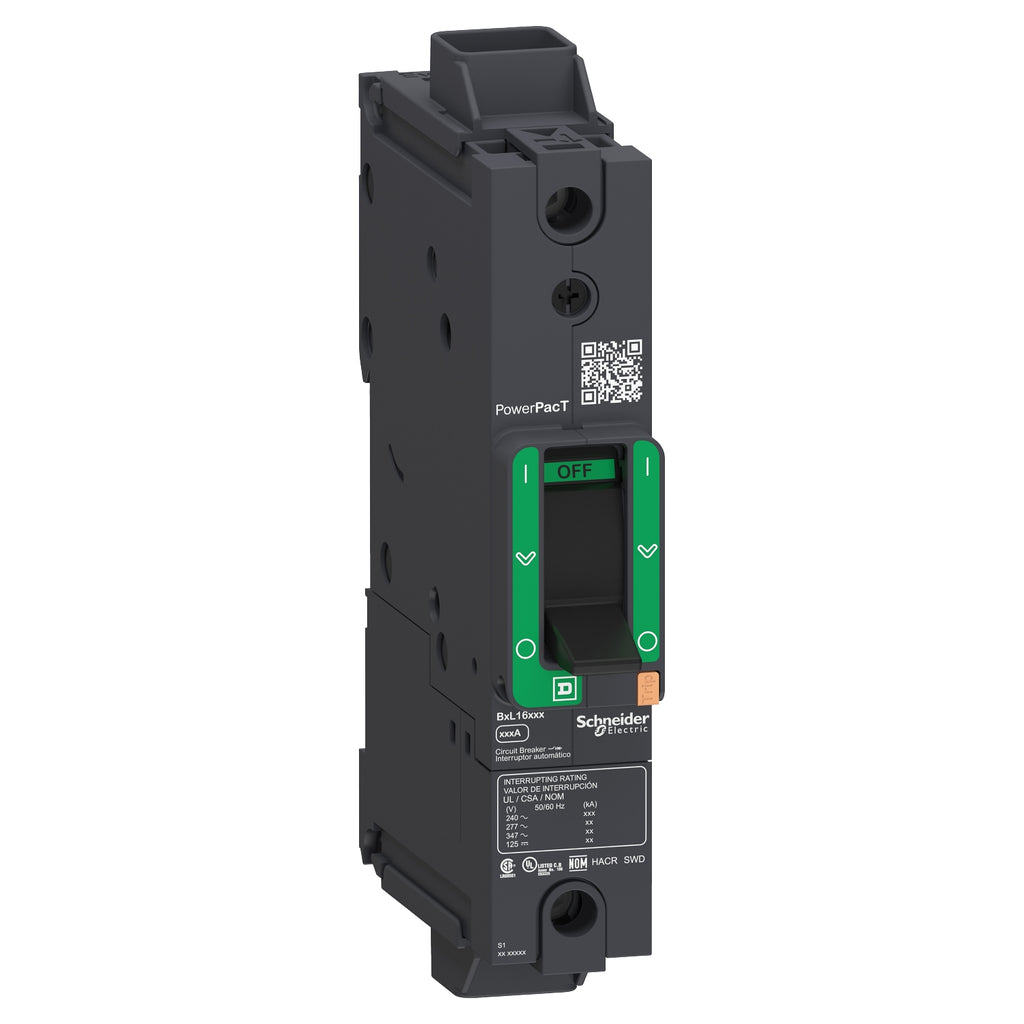

BDL16060 is a Square D PowerPact B-Frame molded case circuit breaker rated for 60 amps and 600Y/347 volts AC.This 1-pole circuit breaker features a thermal-magnetic trip unit designed for reliable protection in electrical distribution systems.
- Amperage: 60 A
- Voltage Rating: 600Y/347 VAC
- Number of Poles: 1
- Frame/Series: PowerPact B-Frame
- Interrupt Rating: 14 kA at 600Y/347 VAC
- Trip Unit: Fixed Thermal-Magnetic
- Mounting Type: I-Line
- Wire Size Range: 6 AWG to 2/0 AWG
- Continuous Current Rating: 80%
- Indicator Type: Common Trip
- Certifications: UL Listed
Specifications
- Part Number: BDL16060
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : BDL
- Voltage : 600
- Amperage : 60
- Phase : 1
- Poles : 1
- AIC rating : 18kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 060648114853
- GTIN : 03606481148537
- Country of Origin : Mexico
- Dimensions : 5.4 in (137 mm) x 1.06 in (27 mm) x 3.1 in (80 mm) (Height x Width x Depth)
- Weight : 1
- Standards : EN/IEC 60947-2, EN/IEC 60947-5-1, CSA C22.2 No 5, UL 489, GB 14048.2, NMX J-266, NEMA AB1
- Certification : UL, IEC, CCC, EAC, CSA, NOM
- Wire Size : AWG 6...AWG 2/0 fine stranded aluminium/copper
AWG 14...AWG 3/0 rigid or stranded aluminium/copper
